2.4

Hard disk drives

The server chassis has two HDD bays for installing HDDs to the system. Both HDD bays can

support 3.5-inch Serial ATA HDD.

2.4.1

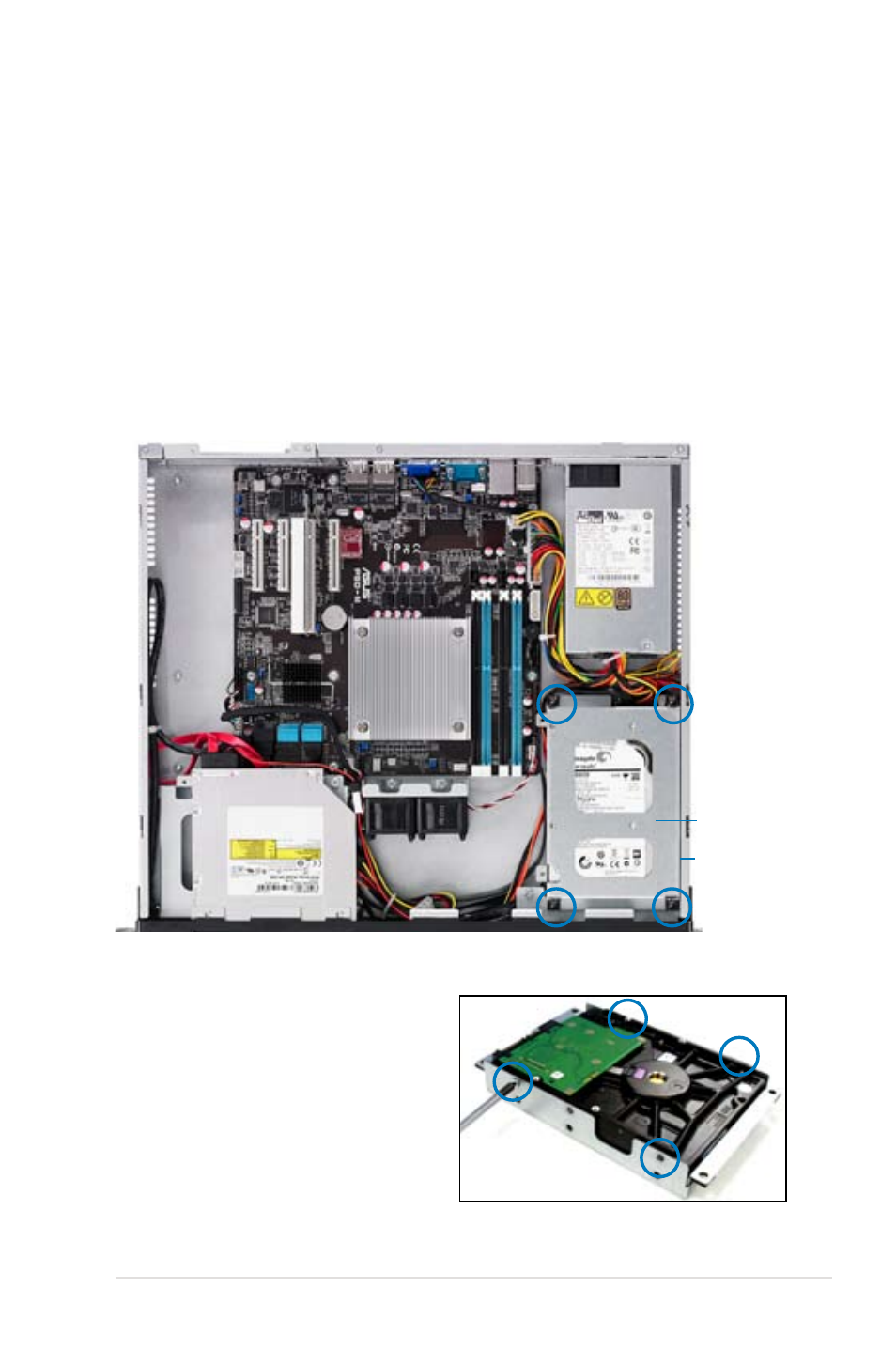

Installing a 3.5-inch Serial ATA HDD to HDD bay 1

To install a 3.5-inch Serial ATA HDD to HDD bay 1:

4.

Prepare a 3.5-inch Serial ATA HDD

and the set of bundled screws.

5.

Insert the 3.5-inch Serial ATA HDD into

the HDD drive tray and secure it using

the bundled set of screws (as shown).

Ensure that the 3.5-inch SATA HDD is

seated securely in place.

1.

Locate the HDD bay 1 in the chassis.

2.

Release the four screws that secures the HDD drive tray to the chassis and set aside.

3.

Remove the HDD drive tray then set aside.

HDD drive tray

HDD bay 1
