Asus RS100-E8-PI2 User Manual
Page 45
2-27
ASUS RS100-E8-PI2
2.7.3

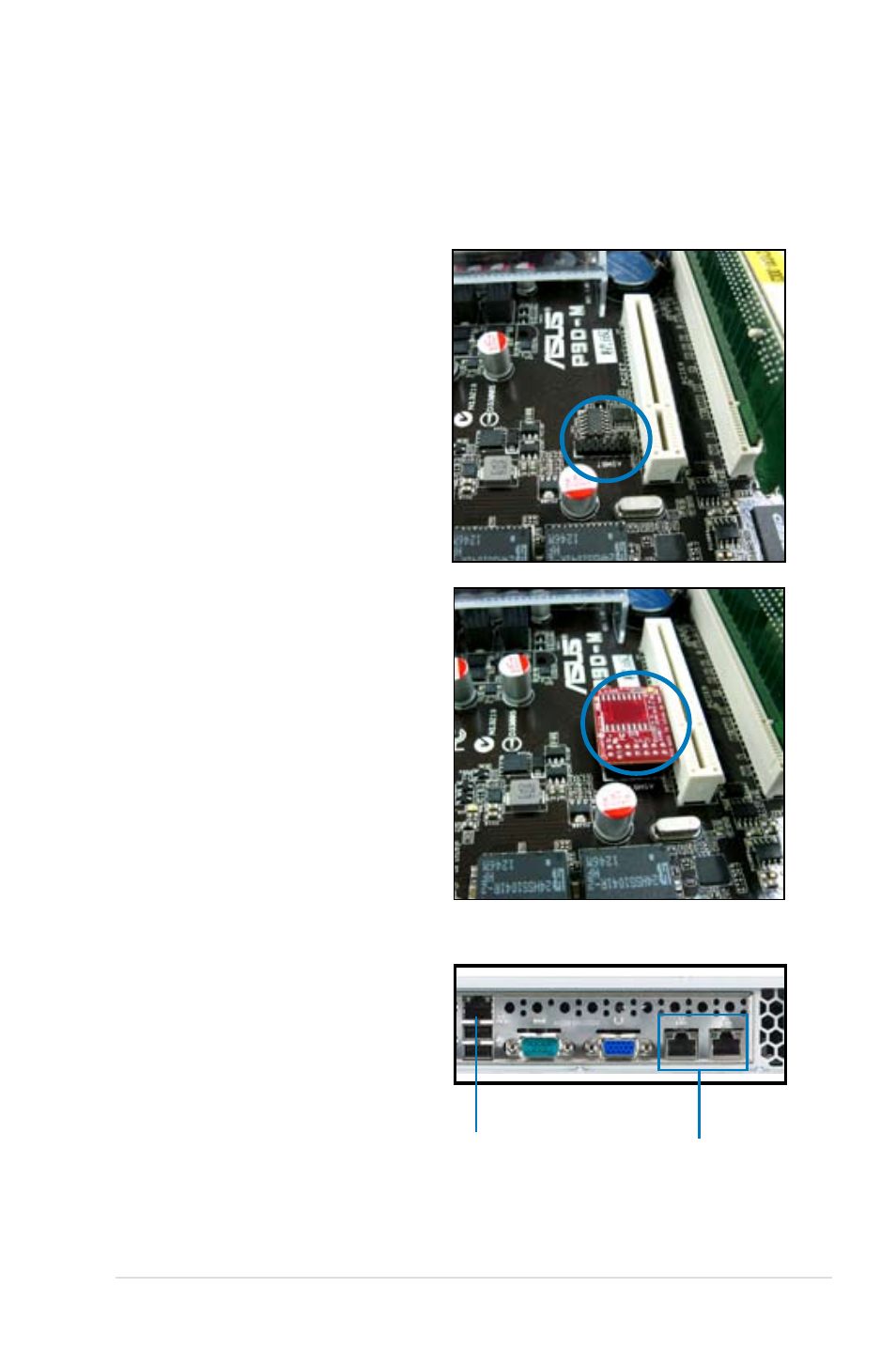

Installing ASMB7 series management card (optional)
Follow the steps below to install an optional ASMB7 series management card on your
motherboard.
3.
Insert the LAN cable plug to the
LAN port 3 (dedicated LAN) or
LAN port 1 (shared LAN) for server
management.
1.
Locate the ASMB7 header on the
motherboard.
2.
Firmly fit the ASMB7 management
card to the header. Do not force the
pins when connecting the card to
the motherboard header.
LAN port 3
LAN port 1~2
