Chapter 2: Hardware setup

2-22

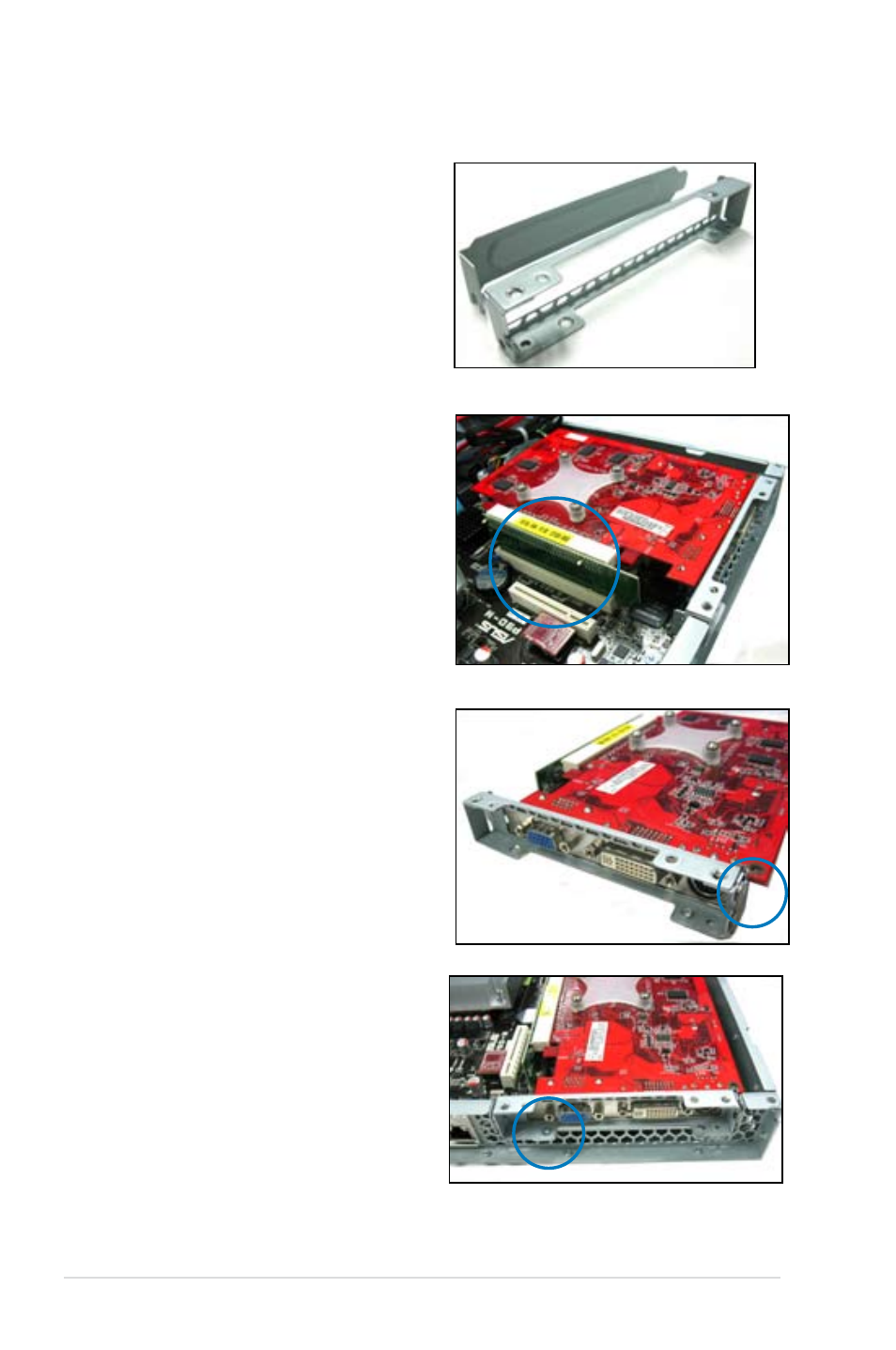

Separate the slot cover from the

expansion card bracket.

4.

Insert the riser card into the PCI

Express slot until the golden

connectors completely fit the slot

and the bracket aligns with the rear

panel.

5.

Secure the expansion card to the

bracket with a screw.

6.

Secure the assembly to the chassis

with a screw.
