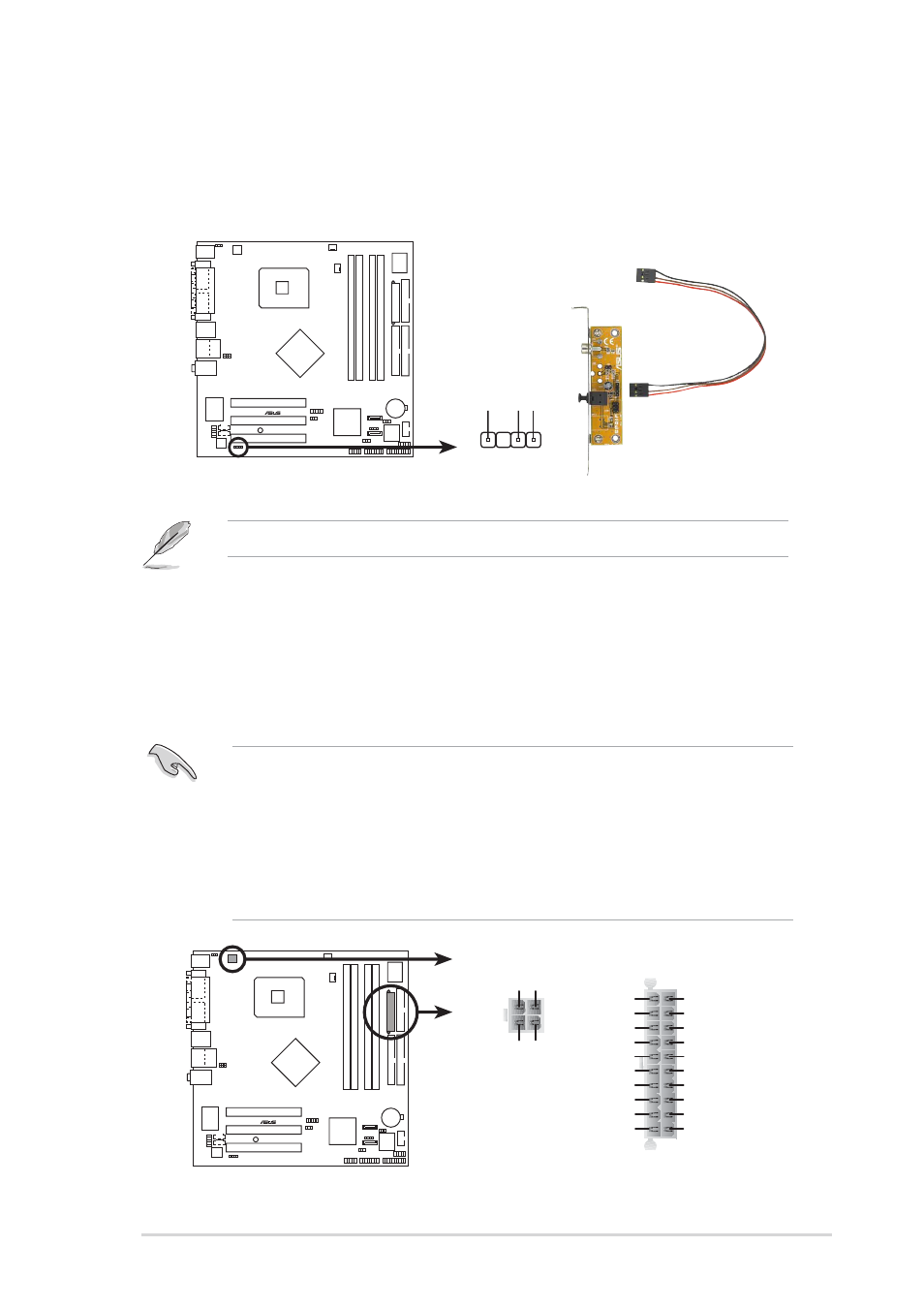

5 . 5 . 5 . 5 . 5 . D i g i t a l A u d i o c o n n e c t o r ( 4 - 1 p i n S P D I F _ O U T 1 ) D i g i t a l A u d i o c o n n e c t o r ( 4 - 1 p i n S P D I F _ O U T 1 ) D i g i t a l A u d i o c o n n e c t o r ( 4 - 1 p i n S P D I F _ O U T 1 ) D i g i t a l A u d i o c o n n e c t o r ( 4 - 1 p i n S P D I F _ O U T 1 ) D i g i t a l A u d i o c o n n e c t o r ( 4 - 1 p i n S P D I F _ O U T 1 )
This connector is for the S/PDIF audio module to allow digital sound
output. Connect one end of the S/PDIF audio cable to this connector
and the other end to the S/PDIF module.
The S/PDIF out module is purchased separately.
P5P800-MX
®
P5P800-MX Digital audio connector
+5V SPDIFOUT GND
SPDIF_OUT1
6 . 6 . 6 . 6 . 6 . A T X p o w e r c o n n e c t o r s ( 2 0 - p i n A T X P W R 1 , 4 - p i n A T X 1 2 V 1 ) A T X p o w e r c o n n e c t o r s ( 2 0 - p i n A T X P W R 1 , 4 - p i n A T X 1 2 V 1 ) A T X p o w e r c o n n e c t o r s ( 2 0 - p i n A T X P W R 1 , 4 - p i n A T X 1 2 V 1 ) A T X p o w e r c o n n e c t o r s ( 2 0 - p i n A T X P W R 1 , 4 - p i n A T X 1 2 V 1 ) A T X p o w e r c o n n e c t o r s ( 2 0 - p i n A T X P W R 1 , 4 - p i n A T X 1 2 V 1 )
These connectors are for an ATX power supply. The plugs from the
power supply are designed to fit these connectors in only one
orientation. Find the proper orientation and push down firmly until the
connectors completely fit.
• Do not forget to connect the 4-pin ATX +12 V power plug;
otherwise, the system will not boot up.
• Use a PSU with a minimum power rating of 300 W on this
motherboard. Use of a PSU with a higher power output is
recommended when configuring a system with more
power-consuming devices. The system may become unstable or may
not boot up if the power is inadequate.
P5P800-MX
®
P5P800-MX ATX power connector
ATXPWR1 ATX12V1
+12V DC GND
+12V DC GND
+3.3VDC
-12.0VDC
GND
PS_ON#
GND
GND
GND
-5.0VDC
+5.0VDC
+5.0VDC
PWR_OK
+12.0VDC
+3.3VDC
+3.3VDC
GND
+5.0VDC
GND
+5.0VDC
GND
+5VSB
