59

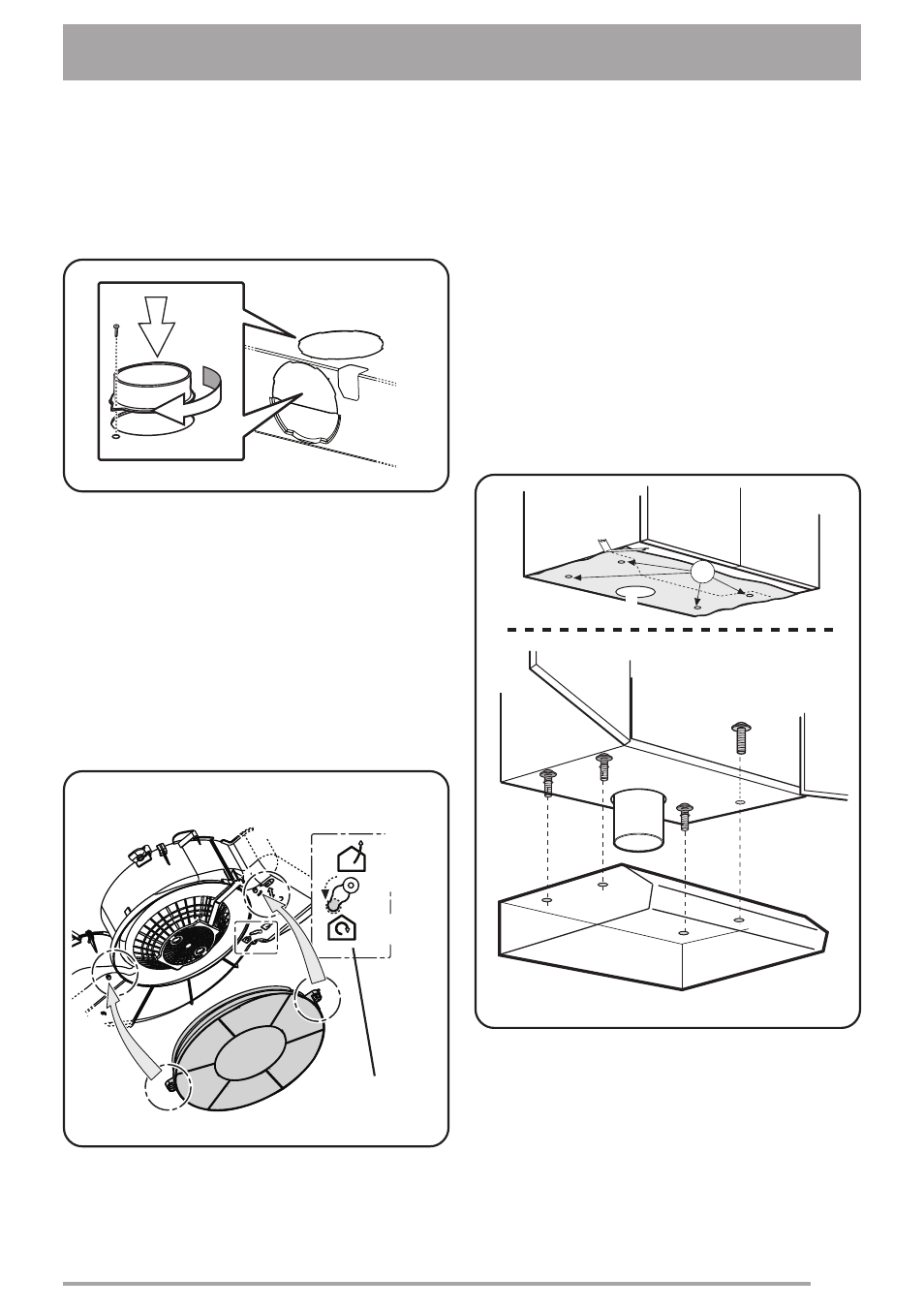

Flange installation
Install the flange supplied to the upper or rear
exhaust outlet as desired (bayonet fastening). Wall unit mounting
• Make the holes on the bottom of the cupboard
(2), using the drilling template (1).
Make a hole for the exhaust pipe (4) if the
hood is to be used in the extraction mode (3).
• From inside the cupboard, insert the 4
supplied screws (5) and tighten them in the
appropriate holes on the appliance.
1
2
Recirculation mode Only
This version of the hood is ready for installation.
Make sure the charcoal filter is installed and the
internal Extraction/Recirculation mode switch is
set to "Recirculation".
For further details relating to the charcoal filter,
please refer to the corresponding paragraph.
Recirculation
mode
Extraction mode
1
2
5
4
5
5
5
3
