4. Attach the IO shield onto the computer chassis, and place the motherboard flatly into
the chassis.
5. Fasten the screws onto the motherboard.

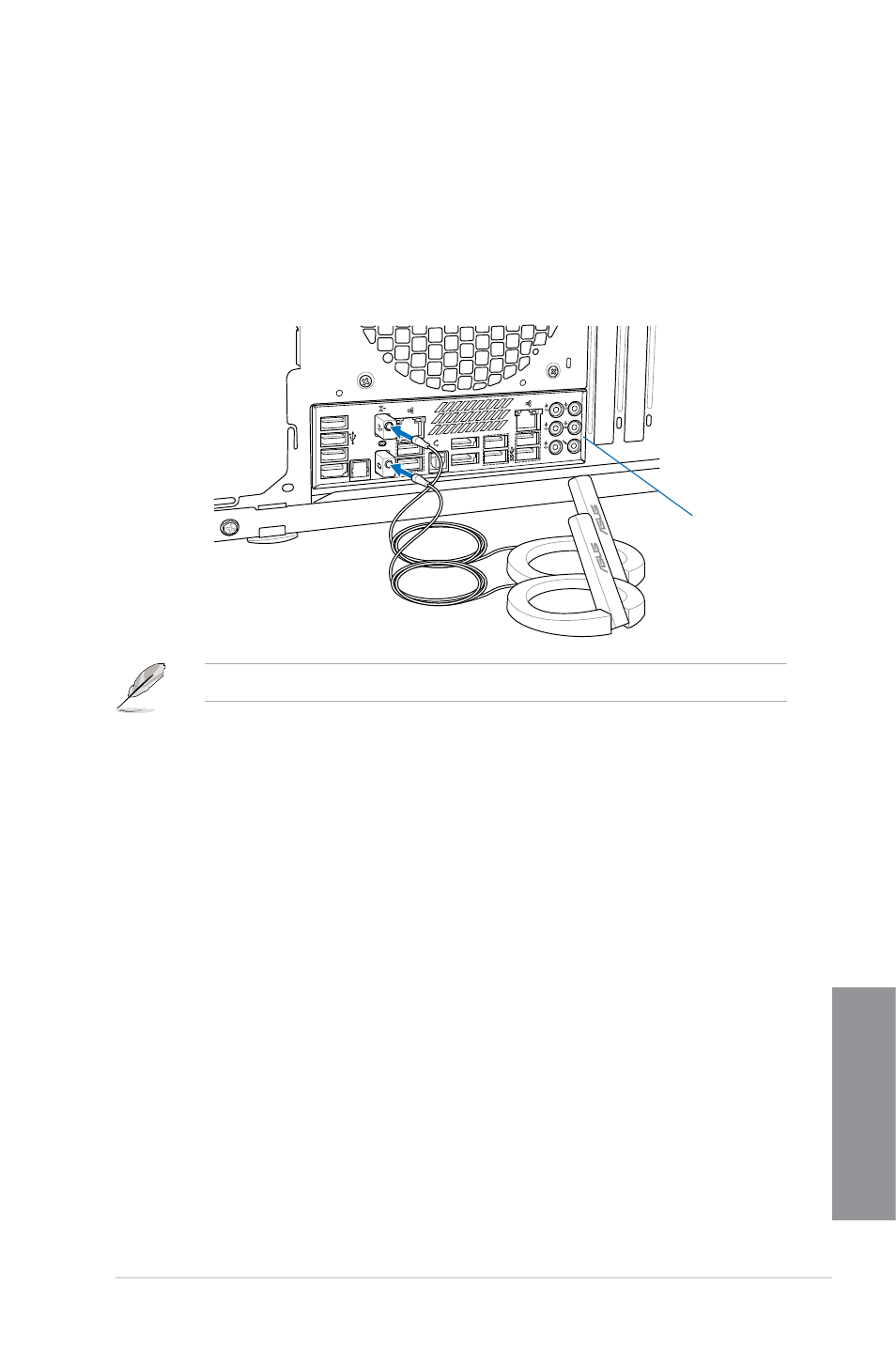

6. Connect the Wi-Fi Ring Moving antennas to the Wi-Fi ports at the back of the chassis.
When you hear the clicking sound, the antenna connectors are properly inserted. Give
a slight pull to determine that the installation is complete.
POWER eSATA 6G
S/PDIF
USB3.0 USB BIOS Flashback
USB3.0
REAR SPK
CTR BASS LINE IN
KY
FRONT
MIC IN
IO Shield
Be sure to install the Bluetooth driver before installing the Wi-Fi GO! software.
