III. INSTALLATION

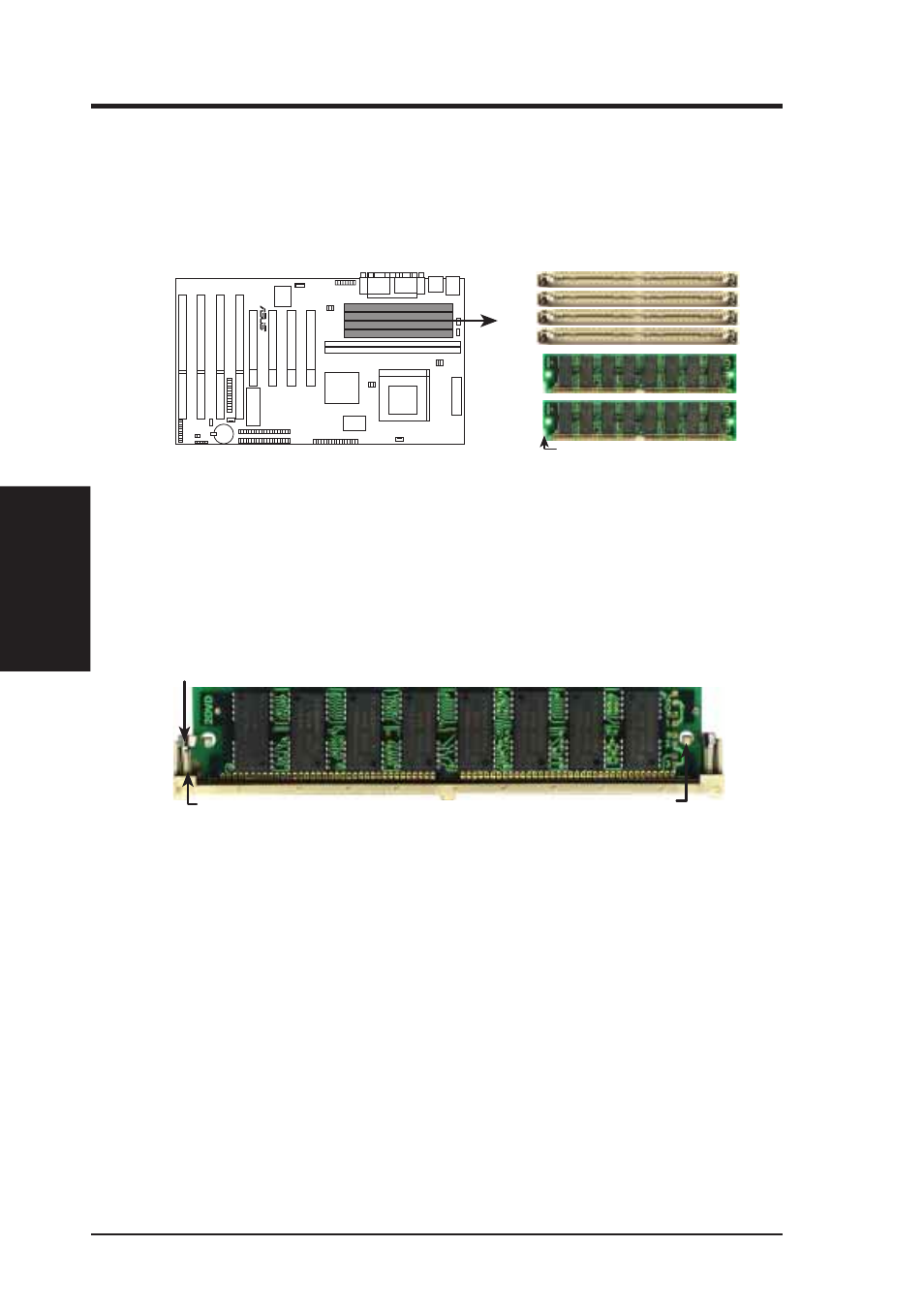

SIMM Memory Installation
1. The SIMM memory modules will only fit in one orientation as shown because
of a safety tab on one end of the SIMM sockets, which requires the notched end
of the SIMM memory modules.
R
72 Pin SIMM Sockets
1
2
3
4
Notched End
2. Press the memory module firmly into place starting from a 45 degree angle
making sure that all the contacts are aligned with the socket.
3. With your finger tips, rock the memory module into a vertical position so that it
clicks into place.
Clip
Plastic Safety Tab (This Side Only) Mounting Hole
72 Pin DRAM in SIMM Socket
4. The plastic guides should go through the two mounting holes on the sides and
the support clips should snap on the other side.
5. To release the memory module, push both support clips outward and rock the
module out of the support clips.
(System Memory)
