2-28
Chapter 2: Hardware information

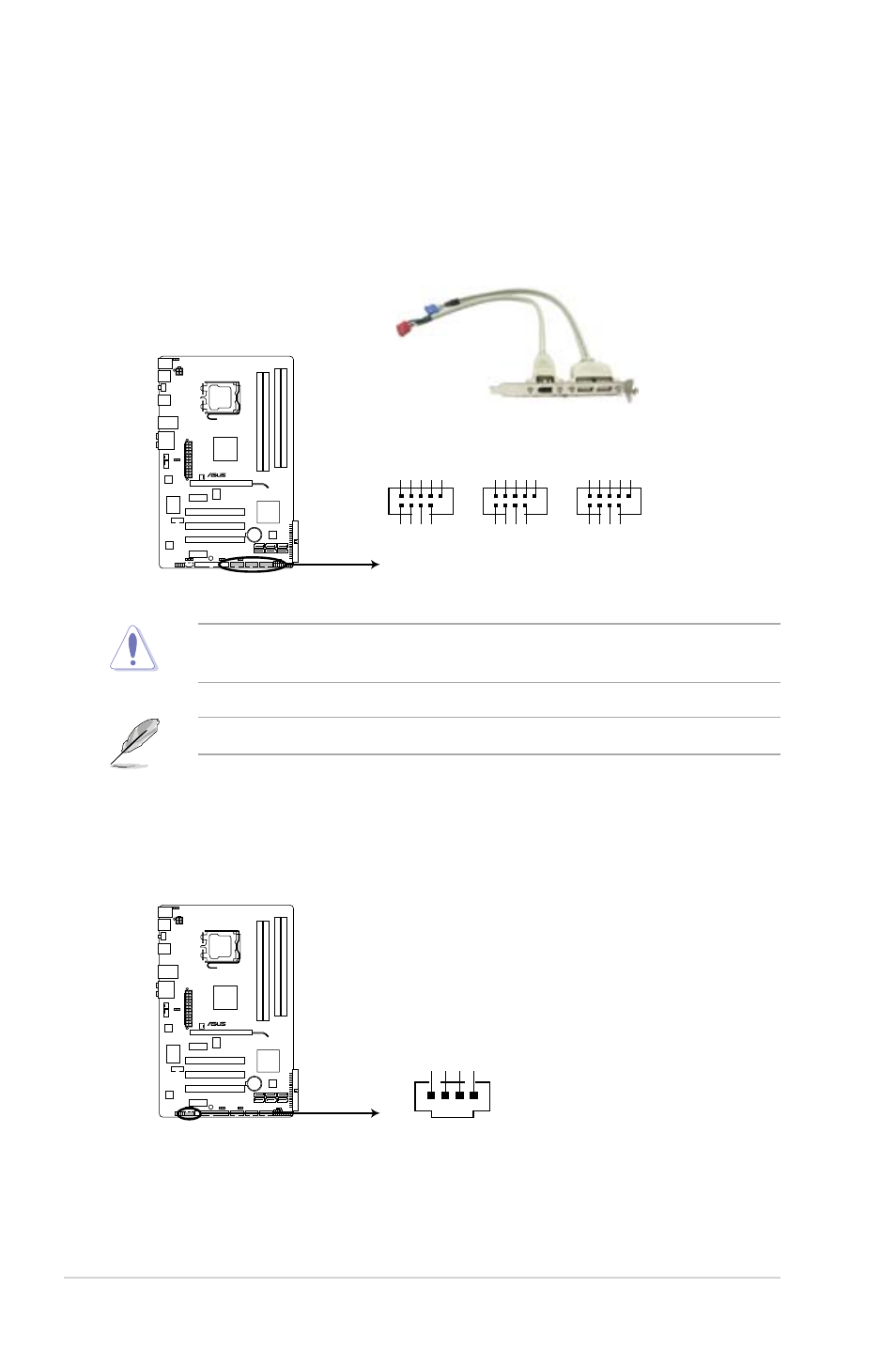

5. USB connectors (10-1 pin USB78, USB910, USB1112)
These connectors are for USB 2.0 ports. Connect the USB module cable
to any of these connectors, then install the module to a slot opening at the
back of the system chassis. These USB connectors comply with USB 2.0
specification that supports up to 480 Mbps connection speed.
Never connect a 1394 cable to the USB connectors. Doing so will damage the
motherboard!
The USB module cable is purchased separately.
P5QL
USB1112
USB78
USB910
P5QL USB2.0 connectors
PIN 1
USB+5V
USB_P12-
USB_P12+
GN
D
NC
USB+5V
USB_P11-
USB_P11+
GN
D
PIN 1
USB+5V
USB_P10-
USB_P10+
GN
D
NC
USB+5V
USB_P9
-
USB_P9
+
GN
D
PIN 1
USB+5V
USB_P8
-
USB_P8
+
GN
D
NC
USB+5V
USB_P7
-
USB_P7
+
GN
D
6. Optical drive audio connector (4-pin CD)
This connector allows you to receive stereo audio input from sound sources
such as a CD-ROM, TV tuner, or MPEG card.
P5QL
CD
Left
Audio Channel
GND
GND
Right
Audio Channel
P5QL Internal audio connector
