ASUS P5VD2-MX SE Motherboard 1-29
9. USB connectors (10-1 pin USB56, USB78)
These connectors are for USB 2.0 ports. Connect the USB module cable to
any of these connectors, then install the module to a slot opening at the back of
the system chassis. These USB connectors comply with USB 2.0 specification
that supports up to 480 Mbps connection speed.
NEVER connect a 139 cable to the USB connectors. Doing so will damage
the motherboard!
The USB module is purchased separately.

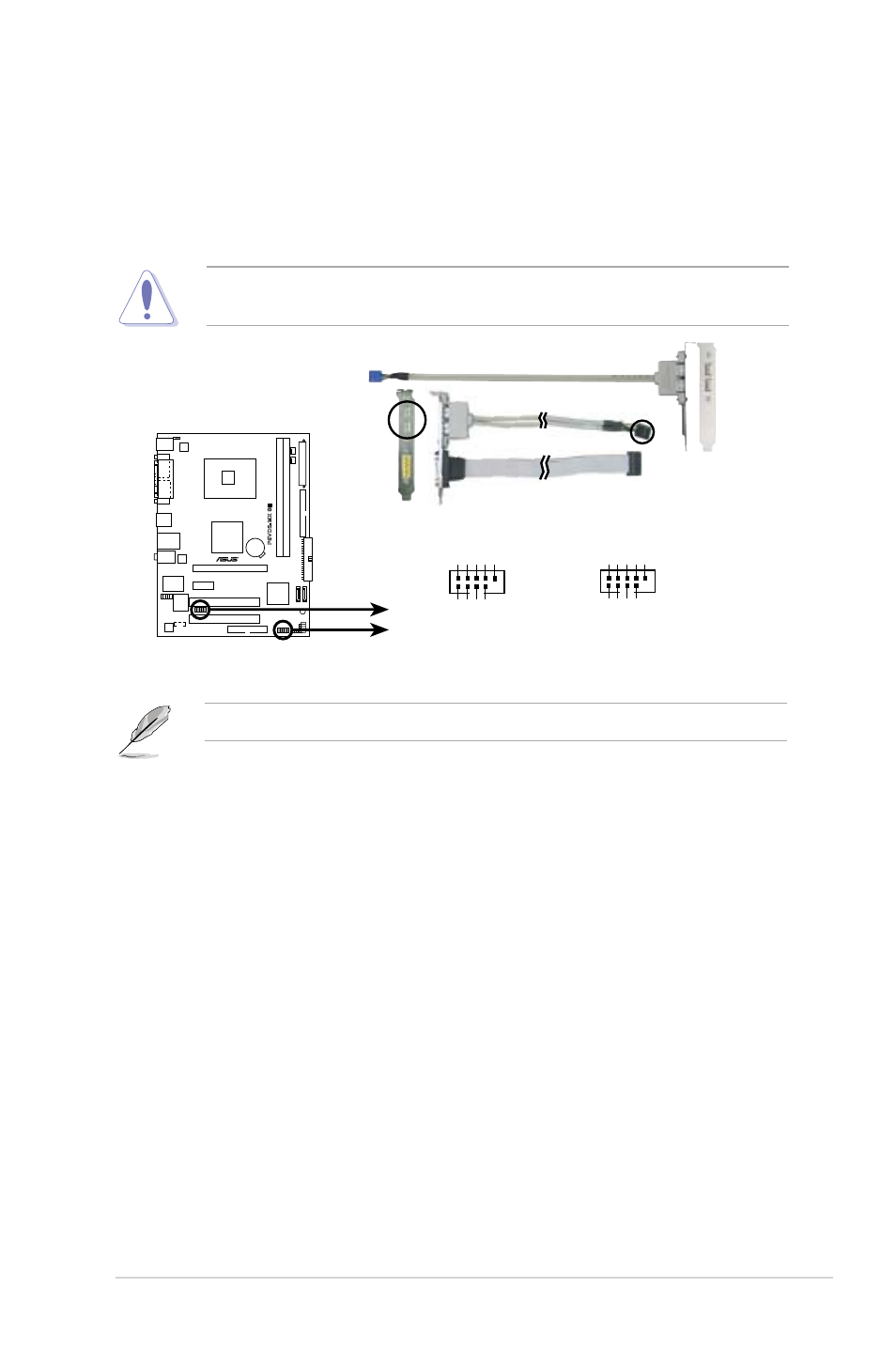

P5VD2-MX SE USB 2.0 Connectors
USB78
USB+5V USB_P8
-
USB_P8
+
GN
D
NC
USB+5V USB_P7
-
USB_P7
+
GN
D
1
USB56
USB+5V USB_P6 USB_P6 GN
D
NC
USB+5V USB_P5
-
USB_P5
+
GN
D
- +
1
P5VD2-MX SE
