1.7 System memory
1.7.1 Overview
The motherboard comes with two Double Data Rate 2 (DDR2) Dual Inline Memory
Modules (DIMM) sockets.
A DDR2 module has the same physical dimensions as a DDR DIMM but has a
240-pin footprint compared to the 184-pin DDR DIMM. DDR2 DIMMs are notched
differently to prevent installation on a DDR DIMM socket.

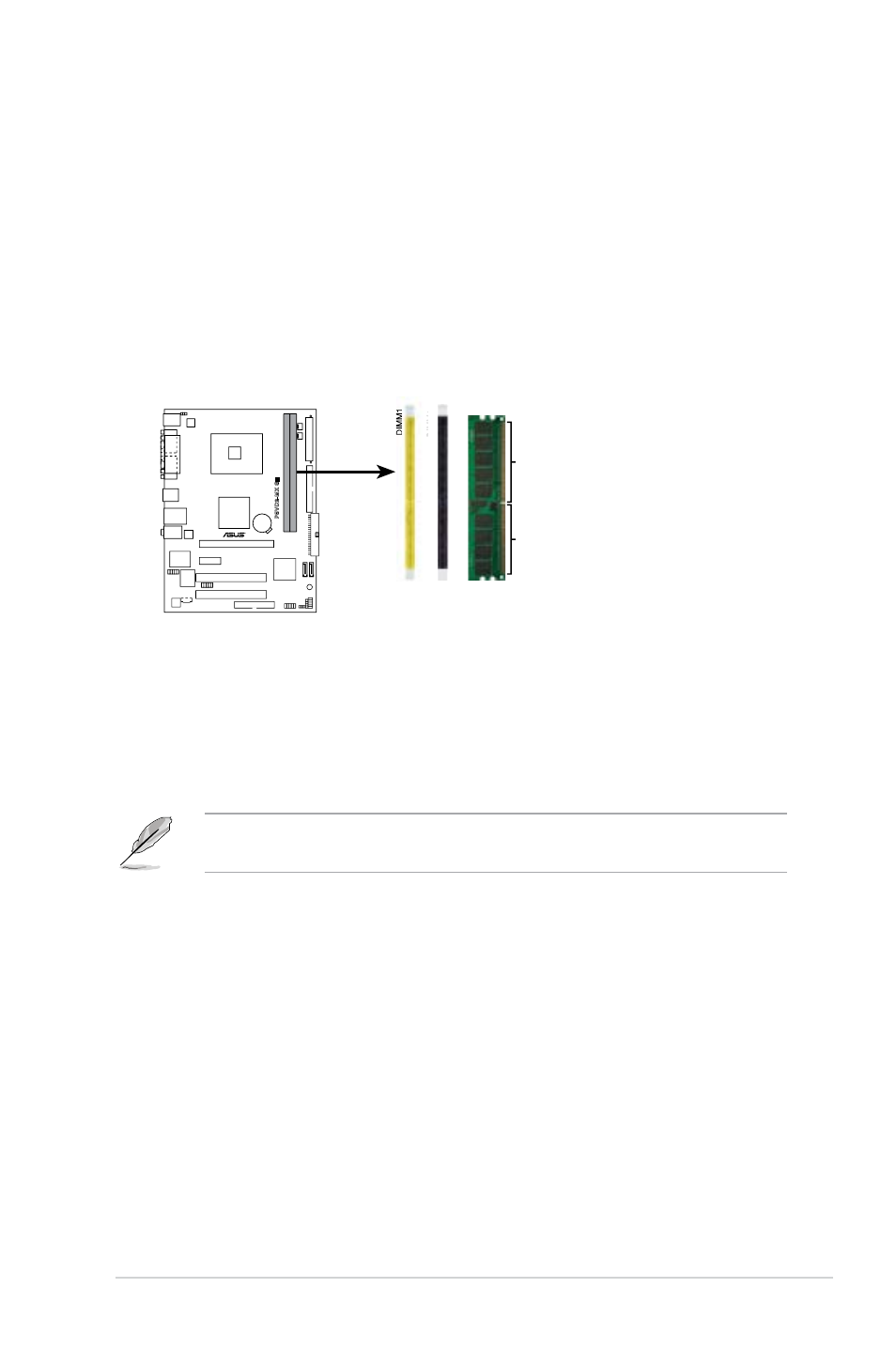

The figure illustrates the location of the DDR2 DIMM sockets:
1.7.2 Memory configurations
You may install 256 MB, 512 MB and 1 GB unbuffered DDR2 DIMMs into the
DIMM sockets.
For optimum compatibility, we recommend that you obtain memory modules
from qualified vendors. See the Qualified Vendors List (QVL) on the next page.
P5VD2-MX SE 20-pin DDR DIMM Sockets
DIMM
1
DIMM
2
112 Pins
128 Pins
P5VD2-MX SE
