1-28 Chapter 1: Product Introduction
7. Serial ATA connectors (7-pin SATA1, SATA2)
These connectors support the thin Serial ATA cables for Serial ATA hard
disks. If you installed Serial ATA hard disks, you may create a RAID 0,
RAID 1, or JBOD configuration.
8. Front panel audio connector (10-1 pin AAFP)
This interface for the front panel audio cable allows convenient connection and
control of audio devices.

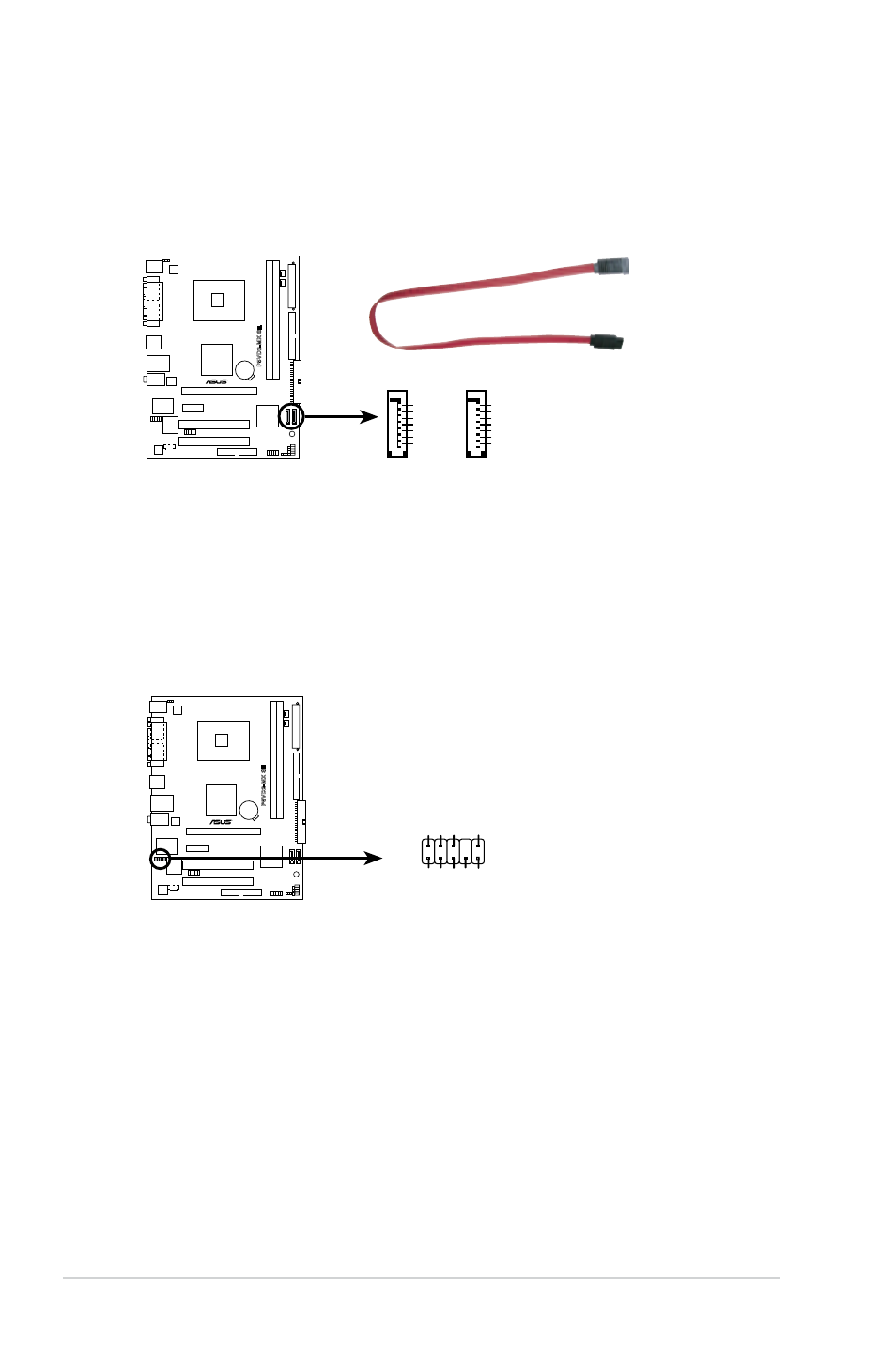

P5VD2-MX SE SATA Connectors
GND
RSATA_TXP1
RSATA_TXN1
GND
RSATA_RXP1
RSATA_RXN1
GND
GND
RSATA_TXP2
RSATA_TXN2
GND
RSATA_RXP2
RSATA_RXN2
GND
SATA1 SATA2
P5VD2-MX SE
P5VD2-MX SE
Analog Front Panel Connector
AAFP
Azalia
compliant definition
SENSE2_RETU
R
PO
RT
1
L
PO
RT
2
R
PO
RT
2
L
SENSE1_RETU
R
SENSE_SEN
D
PO
RT
1
R
PRESENCE
#
GND
P5VD2-MX SE
