Page 38
26
GigaX2024B L2 Managed Switch User Manual
Note
4.5.4 Mirroring
Mirroring, together with a network traffic analyzer, helps you monitor network
traffics. You can monitor the selected ports for egress or ingress packets.
Mirror: Selects the mirror group. Each group consists of 24 Fast Ethernet
ports and one gigabit port. (for GigaX 2024B only)
Mirror Mode: Enables or disables the mirror function for the selected group.
Monitor Port: Receives the copies of all the traffics in the selected mirrored
ports.
The monitor port can not belong to any link aggregation group.
The monitor port can not belong to any Private VLAN.
The monitor port can not operate as a normal switch port. It does
not switch packets or do address learning.
Click
OK to make the setting send to the switch (HTTP server). Click Reload to
refresh the settings to current value.

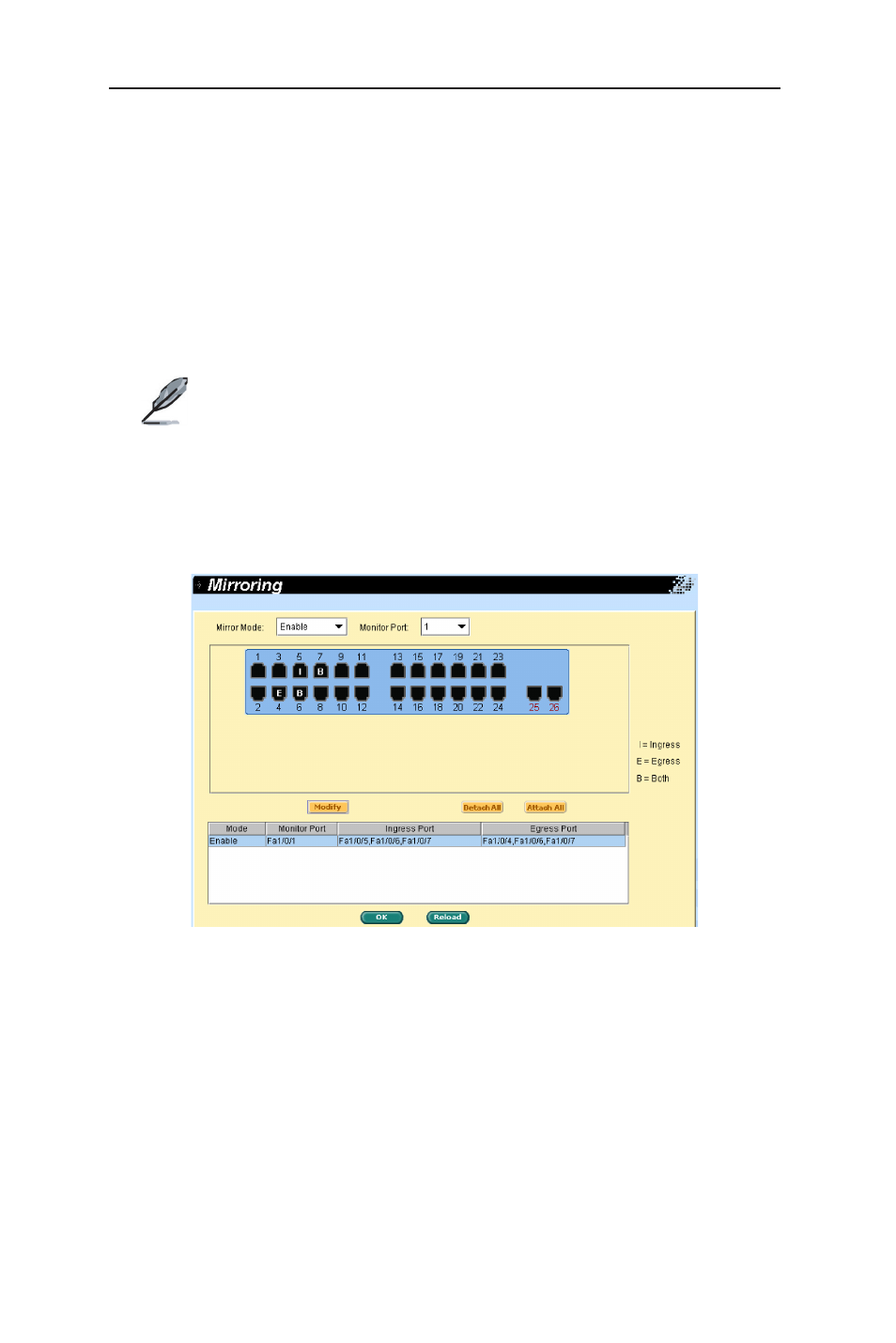

Figure 25. Mirroring page
