12
GigaX2024B L2 Managed Switch User Manual
4 Management with the Web Interface
The switch provides Web pages that allow switch management through the
Internet. The program is designed to work best with Microsoft Internet Explorer ®
6.0, or later versions with Java ® enabled.
4.1 Log into Web user interface
1. Open the web browser (IE) on your computer, type the following in the web
address (or location) box, and press :
http://192.168.1.1
This is the factory default IP address for the switch. A login screen displays as
shown in Figure 8.

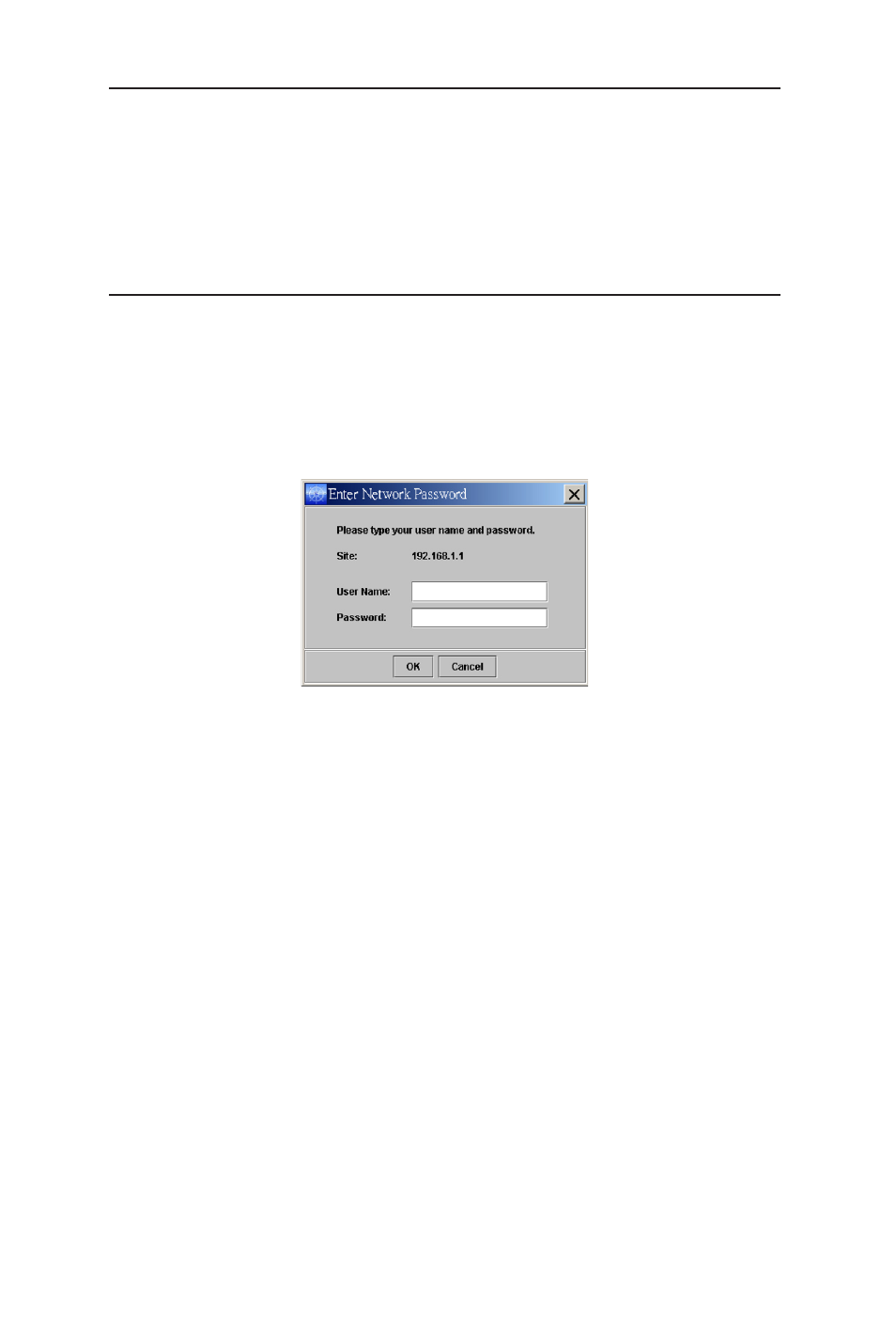

Figure 8. Configuration manager login screen
2. Enter your user name and password, then click OK.
Use the following defaults the first time you log into the system. You can
change the password at any time through CLI interface (see section 6.3.1 on
page 57).
Default User Name: admin
Default Password:
The home page appears each time you log into the program. See Figures 11
and 12).
