GigaX2024B L2 Managed Switch User Manual

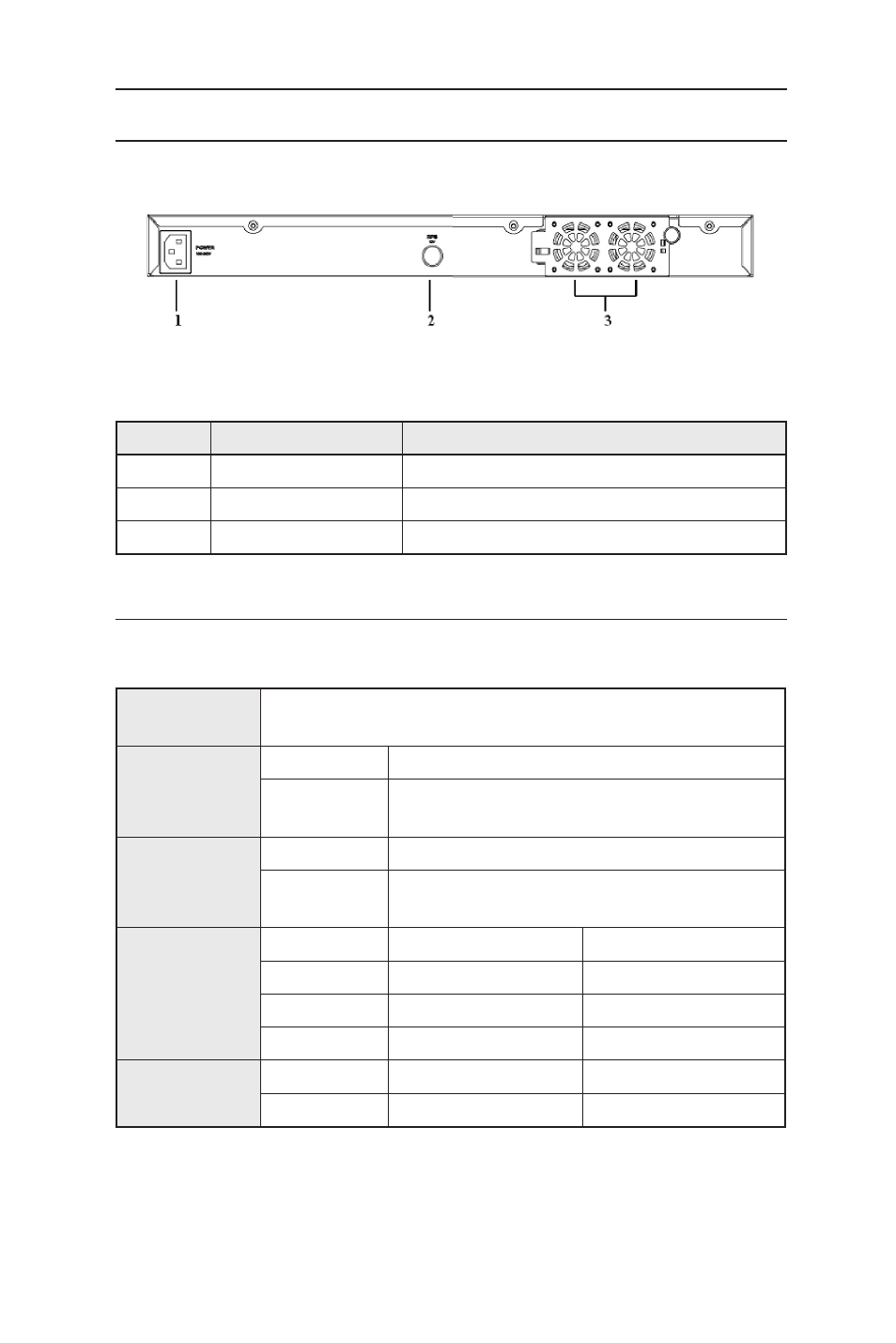

2.3 Rear panel
The switch rear panel contains the fan modules, a power connector and one RPS port.
Figure 3. Rear panel
Table 2. Rear panel labels
No. Item Description
1 Power Connector Connects to the supplied power cord
2 FAN1-FAN2 Replaceable system fans
3 RPS Redundant Power Supply connector
2.4 Technical specifications
Table 3. Technical specifications
Physical
Dimensions
43.5mm(H) x 444 mm(W) x 322mm(D)
Power Input Consumption
100-240V AC/
2.5A 50-60Hz
< 50 watts
Redundant
Power Supply
(RPS)
Input Output
100-240V AC/
1.8A 50-60Hz
12V DC/12.5A
Environmental
Ranges
Operating Storage
Temperature 0 to 40°C (32 to 122°F) -25 to 70°C (-40 to 158°F)
Humidity 15 to 90% 0 to 95%
Altitude up to 10,000ft (3,000m) up to 40,000 ft (12,000m)
Replaceable
Fans
Dimensions Voltage and Current Speed
40 x 40 x 20 mm 12VDC, 0.13A 8200RPM
