13
GigaX2024B L2 Managed Switch User Manual

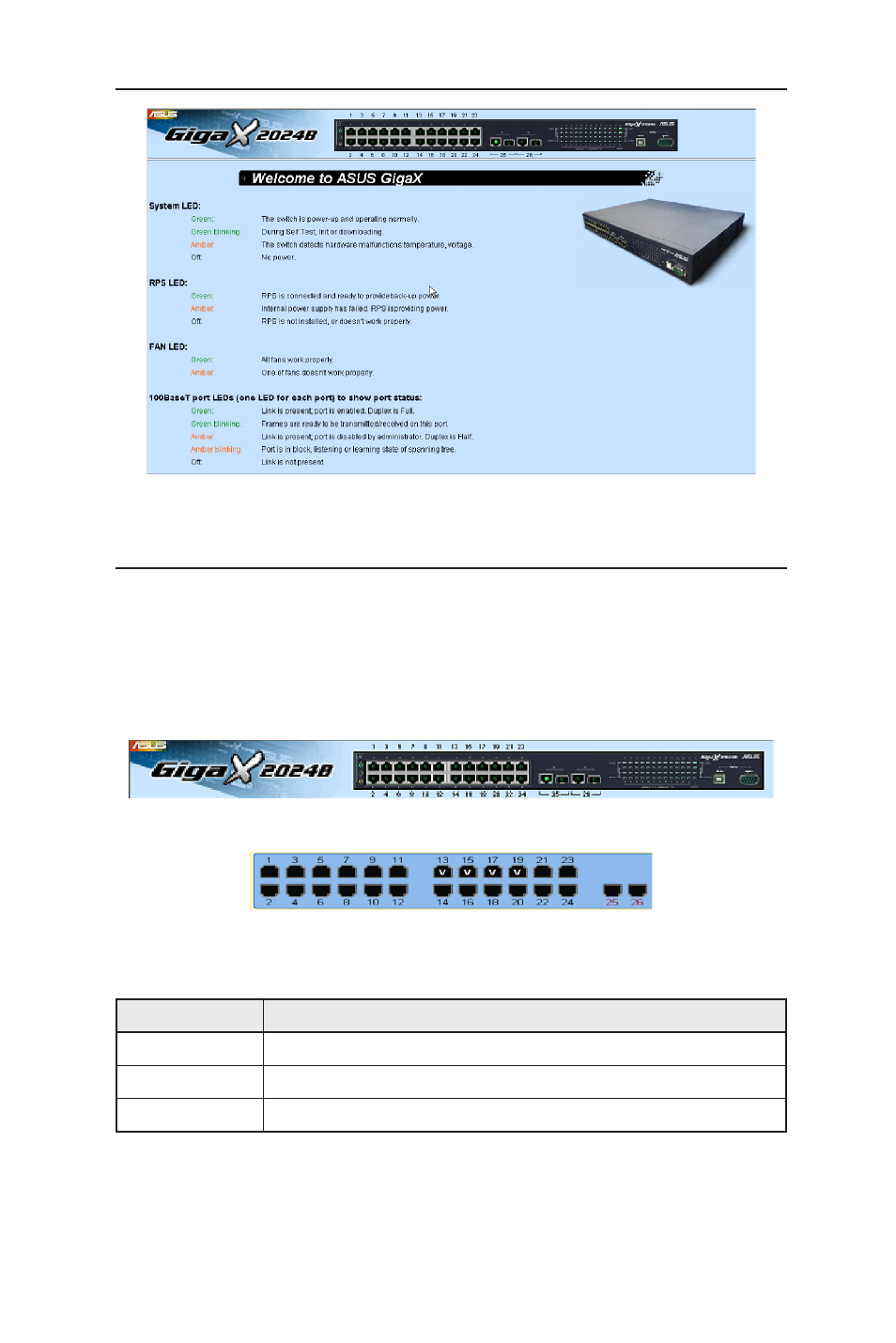

Figure 9. Home page
4.2 Functional layout
The web-based configuration page consists of three separate frames. The top
frame has a switch logo and front panel as shown in Figures 13 and 14. This
frame remains on the top of the browser window all the times and updates the
LED status periodically. See Table 4 for the LED definitions. See Table 5 for the
color status description.
Figure 11. Port selection panel
Table 5. Port color description
Port Color Description
Green Ethernet link is established
Amber Link is present but port is disabled manually or by spanning tree
OFF No Ethernet link
Clicking on the port icon of the switch displays the port configuration in the lower
right frame.
Figure 10. Top frame
