Chapter 1: Product Introduction

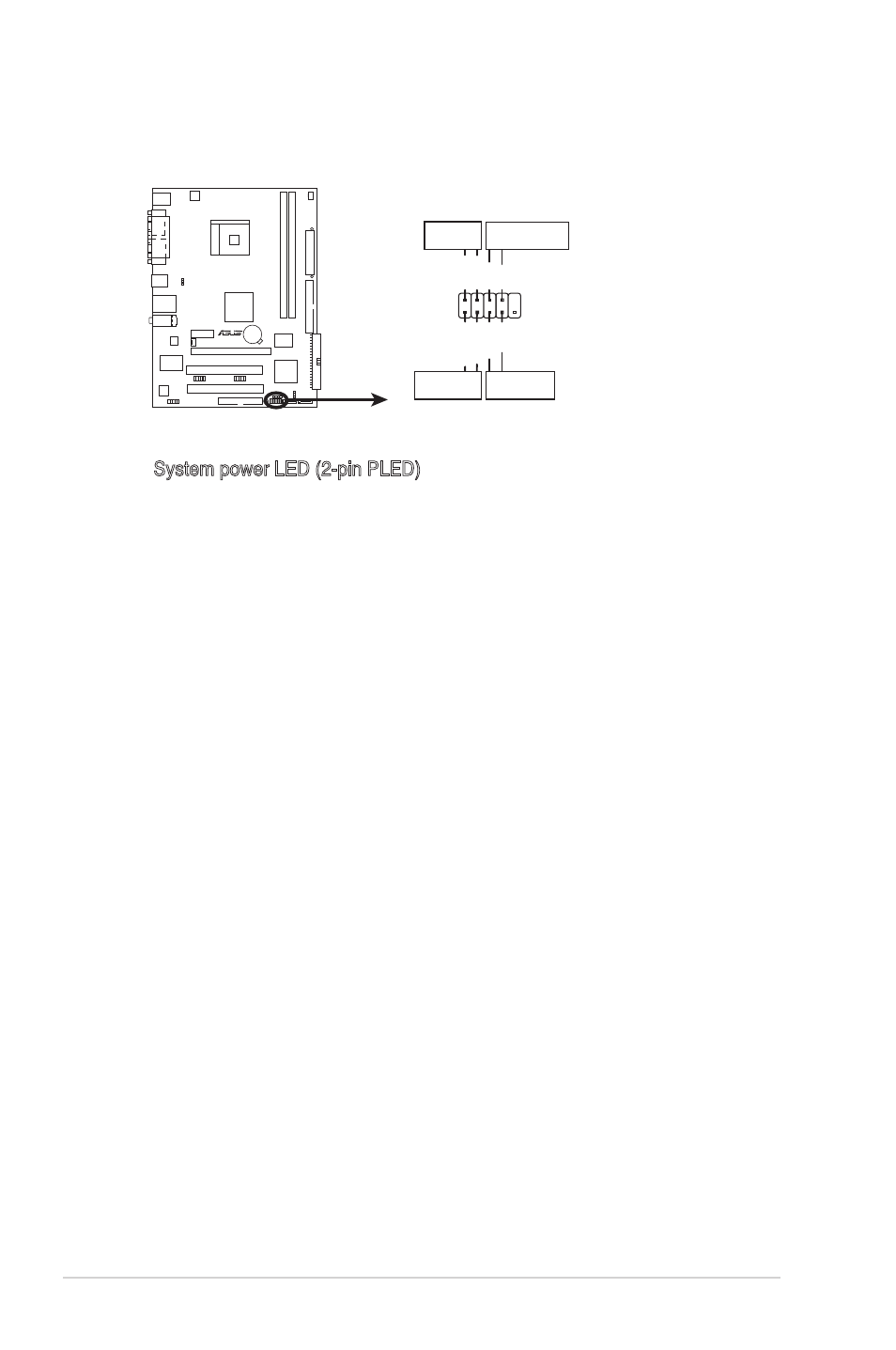

K8V-VM ULTRA System Panel Connector

r

R

K8V-VM ULTRA

F_PANEL

PLED- PWR

PLED+

Ground

GND

Reset

IDELED+ IDELED-

HD LED RESET

PLED PWRSW

10. System panel connector (10-1 pin F_PANEL)

This connector supports several system chassis-mounted functions.

System power LED (2-pin PLED)

This 3-pin connector is for the system power LED. Connect the chassis power

LED cable to this connector. The system power LED lights up when you turn

on the system power, and blinks when the system is in sleep mode.

Power/Soft-off button (2-pin PWRSW)

This connector is for the system power button. Pressing the power button

turns the system ON or puts the system in SLEEP or SOFT-OFF mode

depending on the BIOS settings. Pressing the power switch for more than

four seconds while the system is ON turns the system OFF.

Hard disk drive activity (2-pin HDLED)

This 2-pin connector is for the HDD Activity LED. Connect the HDD Activity

LED cable to this connector. The IDE LED lights up or flashes when data is

read from or written to the HDD.

Reset button (2-pin RESET)

This connector is for the chassis-mounted reset button for system reboot

without turning off the system power.
