ASUS K8V-VM Ultra Motherboard 1-19
1.10 Connectors
This section describes and illustrates the rear panel and internal
connectors on the motherboard.

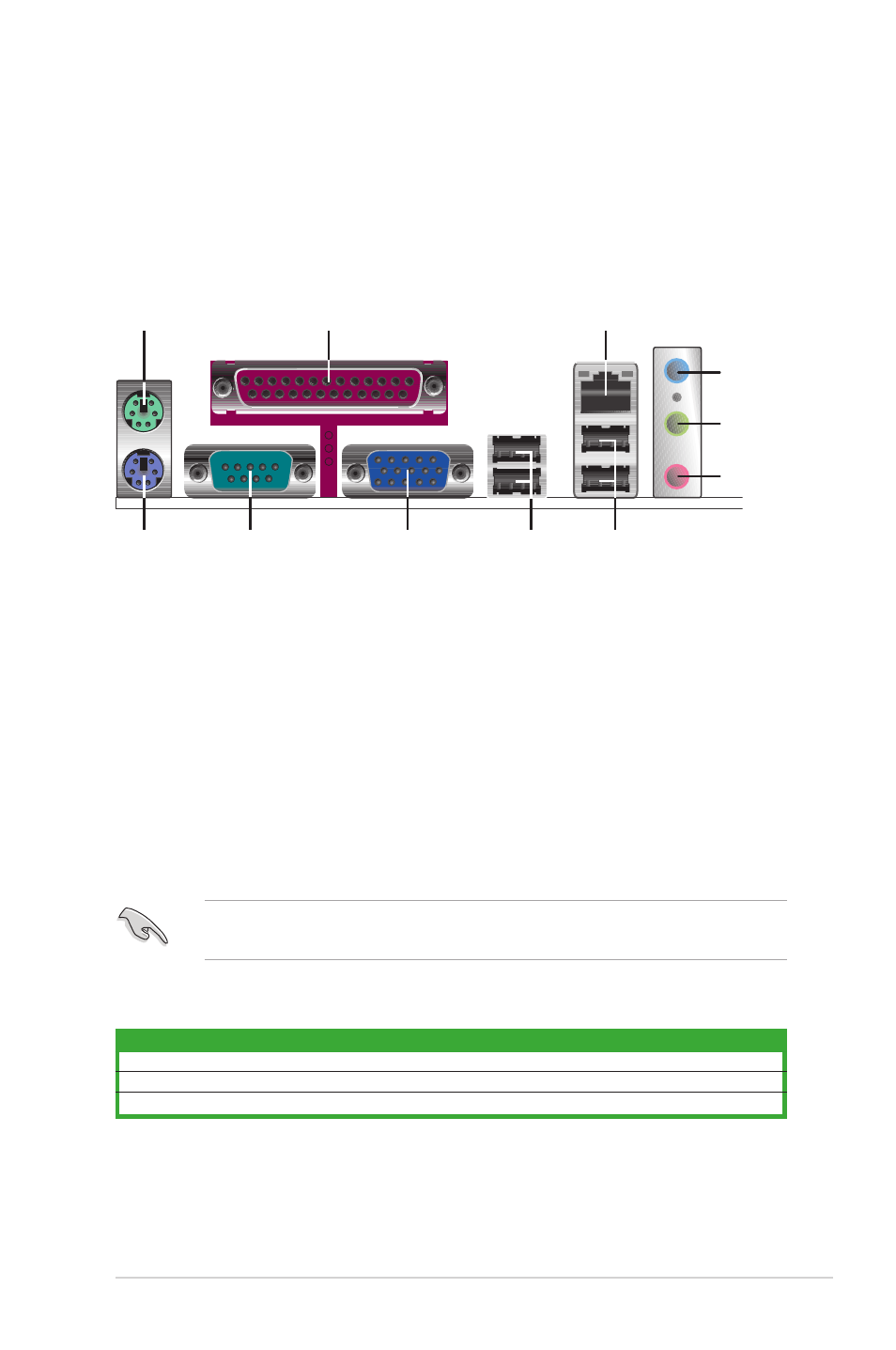

1.10.1 Rear panel connectors
1
11
4
5
6
7
2 3
10 8 9
1. PS/2 mouse port (green). This 6-pin port is for a PS/2 mouse.
2. Parallel port. This 25-pin port connects a parallel printer, a scanner, or other devices.
3. LAN (RJ-45) port. This port allows connection to a Local Area Network (LAN)
through a network hub.
4. Line In port. This Line In (light blue) port connects a tape player or other
audio sources. In 4 or 6-channel mode, the function of this port becomes Back
Surround.
5. Line Out port. This Line Out (lime) port connects a headphone or a speaker.
In 4 or 6-channel mode, the function of this port becomes Front Speaker Out.
6. Microphone port. This Mic (pink) port connects a microphone. In 6-channel
mode, the function of this port becomes Center/LFE.
Audio ports function variation
Audio ports Headphone /2-Channel 4-Channel 6-Channel
Light Blue Line In Back Surround Back Surround
Lime Line Out Front Speaker Out Front Speaker Out
Pink Mic In Mic In Center/LFE
The functions of the Line Out, Line In, and Microphone ports change when you
select the 4 or 6-channel audio configuration as shown in the following table.
