ASUS K8V-VM Ultra Motherboard 1-25
9. USB connectors (10-1 pin USB56, USB78)
These connectors are for USB 2.0 ports. Connect the USB module cable to
any of these connectors, then install the module to a slot opening at the back of
the system chassis. These USB connectors comply with USB 2.0 specification
that supports up to 480 Mbps connection speed.
NEVER connect a 1394 cable to the USB connectors. Doing so will damage
the motherboard!
The USB module is purchased separately.

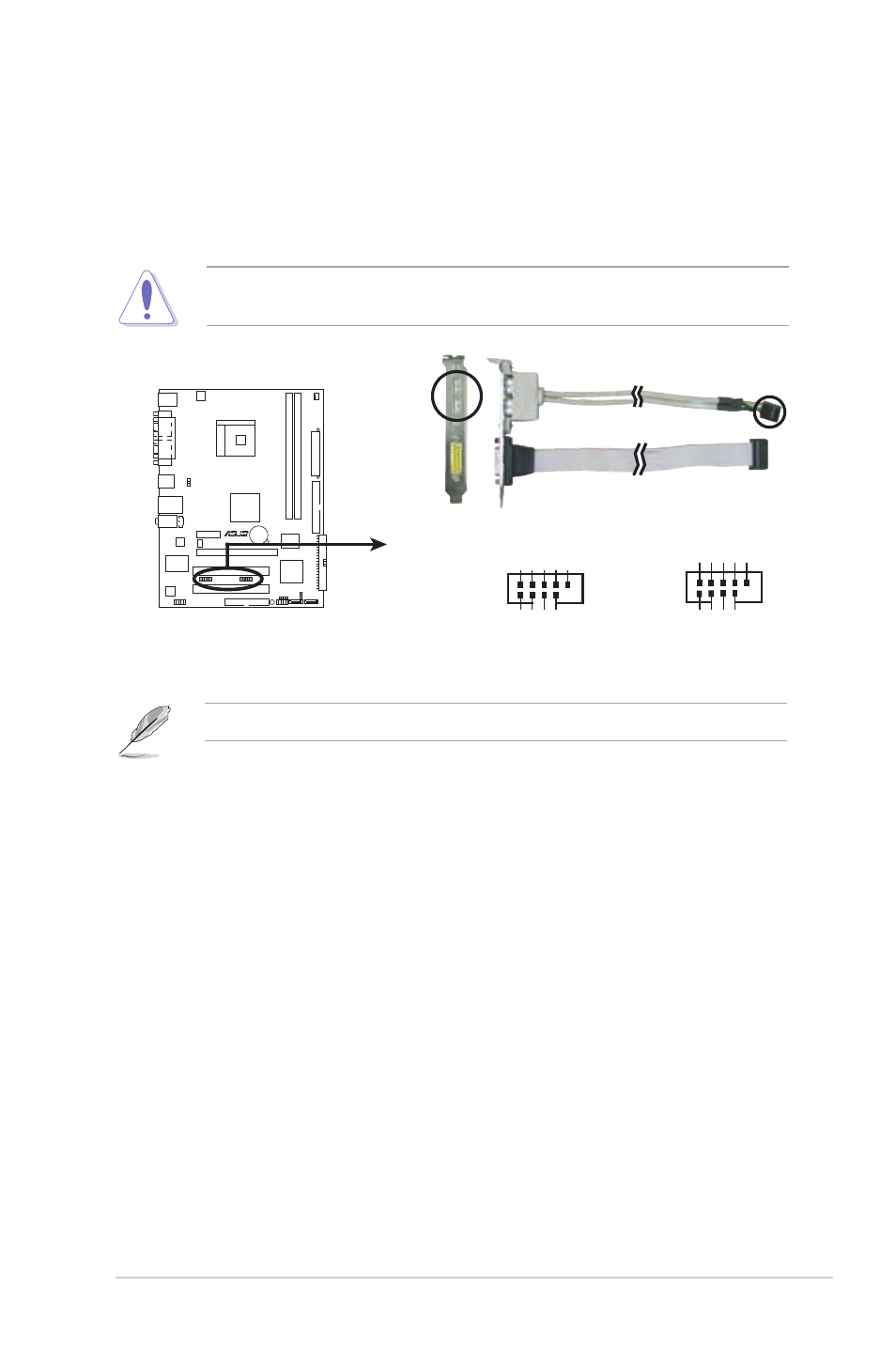

K8V-VM ULTRA USB 2.0 Connectors
USB56
USB+5V USB_P6- USB_P6+ GND NC
USB+5V USB_P5- USB_P5+
GND
1
USB78
USB+5V USB_P8- USB_P8+ GND NC
USB+5V USB_P7- USB_P7+
GND
1
r
R
K8V-VM ULTRA
