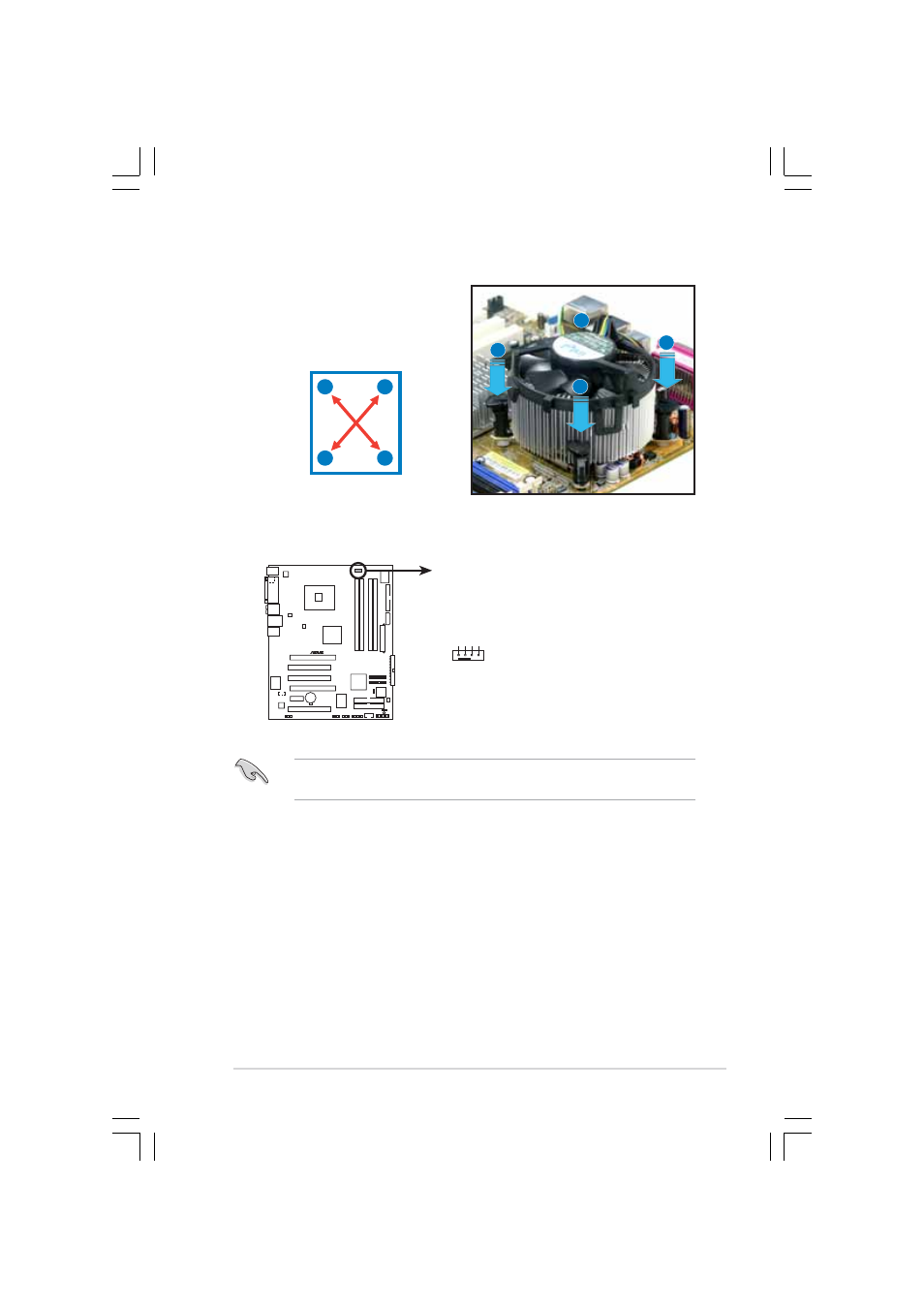

3. Connect the CPU fan cable to the connector on the motherboard
labeled CPU_FAN.
2. Push down two fasteners at a
time in a diagonal sequence to
secure the heatsink and fan
assembly in place.
B
B
A
A
A
A B
B
Do not forget to connect the CPU fan connector! Hardware monitoring
errors can occur if you fail to plug this connector.
P5WD2
®
P5WD2 CPU fan connector
CPU_FAN
GND CPU F
AN PWR
CPU F
AN IN
CPU F
AN PWM
