ASUS MES-B User’s Manual 11
2.2 Parts of the ASUS MES-B Motherboard
2. FEATURES
2. FEA
TURES

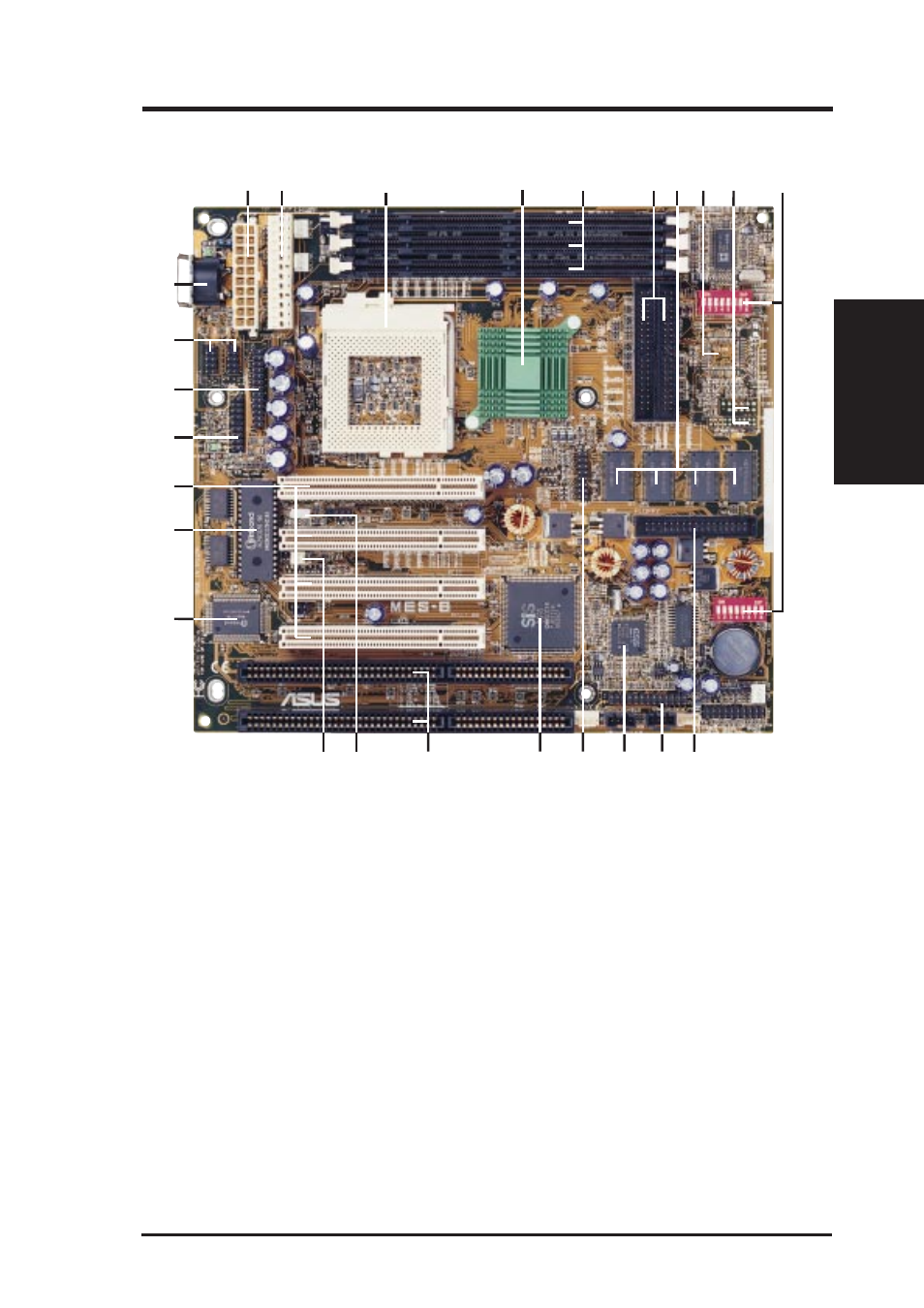

Motherboard Parts
10 7 5 4 3 2 1
25
24
23
22
21
20
19
17 16 15 14 12
6
18
8 9
11 13
1 ATX Power Connector
2 AT Power Connector
3 CPU ZIF Socket 370
4 SiS Chipset with Heatsink
5 DIMM Sockets
6 IDE Connectors
7 Optional VGA Memory (up to 8MB)
8 LCD chip/TV Out chip (optional)
9 LCD Header (w/ LCD chip onboard)
TV Out Interface (w/ TV Out chip onboard )
10 Function DIP Switches
11 Floppy Disk Drive Connector
12 Audio Connector (w/ onboard audio)
13 ESS Solo-1 Audio Chip (on audio model
only)
14 VGA Header
15 SiS South Bridge with Integrated Hard-
ware Monitoring
16 2 ISA Slots
17 Wake-On-LAN Connector
18 Wake-On-Ring Connector
19 Multi I/O Chip
20 Programmable Flash EEPROM
21 4 PCI Slots
22 PS/2 Mouse, USB, IR Connector
23 Parallel Port Connector
24 Serial Port Headers
25 Keyboard Connector
