2-14 Chapter 2: BIOS setup
Set Parameters of
Floppy Disk Controller
(FDC)

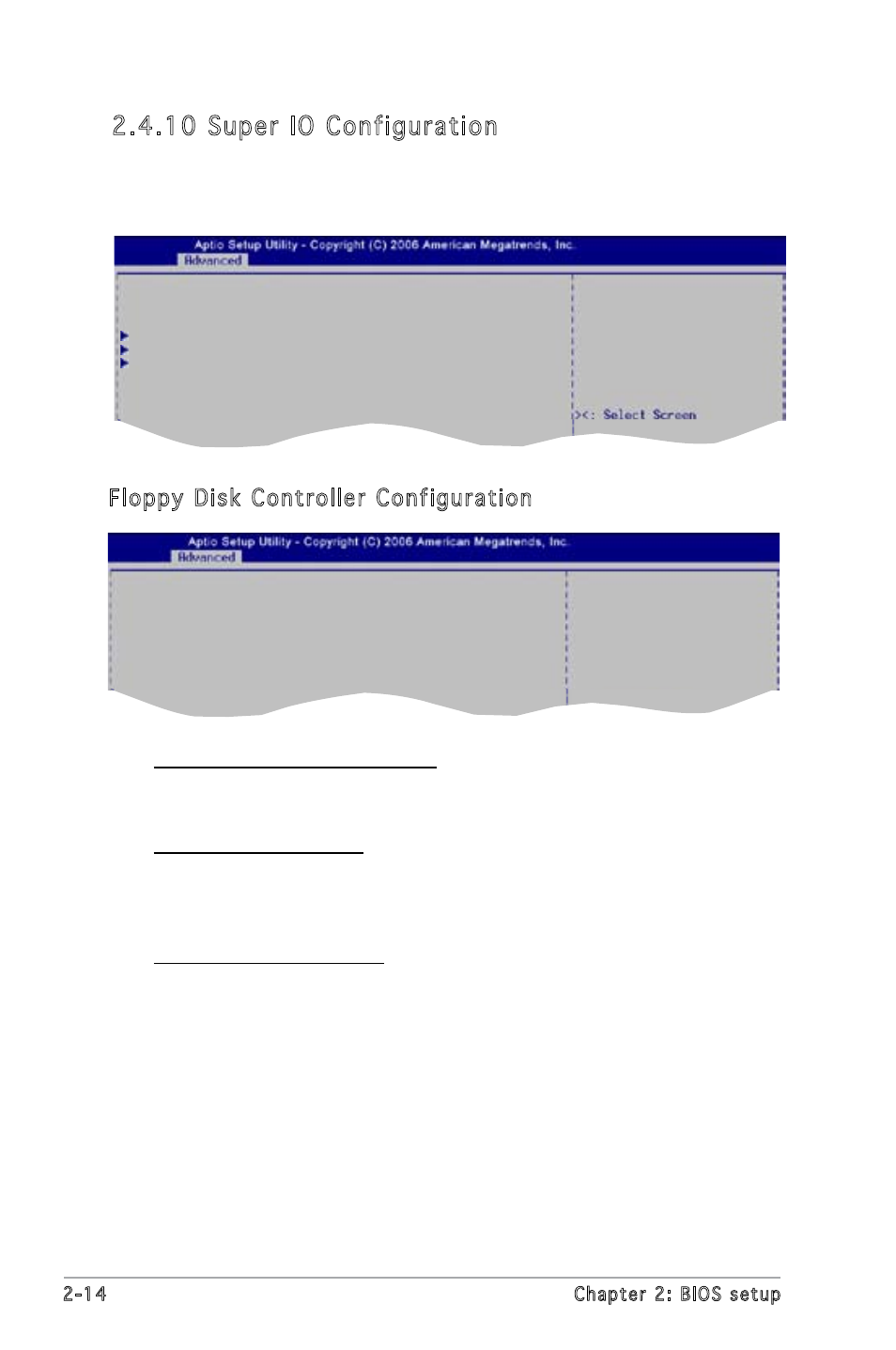

2.4.10 Super IO Configuration
The items in this menu allow you to set or change the configurations
for super IO devices. Select an item then press to display the
configuration options.
Super IO Configuration
Super IO Chip Winbond W83627
Floopy Disk Controller Configuration
Serial Port Configuration
Parallel Port Controller Configuration
Floppy Disk Controller Configuration
Enable or Disable
Floppy Disk Controller
Floopy Disk Controller Configuration
Floopy Disk Controller [Enabled]
Device Settings Reset Required
Change Settings [Auto]
Device Mode [Read Write]
Floppy Disk Controller [Enabled]
Allows you to enable or disable the floppy disk controller.
Configuration options: [Disabled] [Enabled]
Change Settings [Auto]
Allows you to select an optimal settings for the super IO device.
Configuration options: [Auto] [IO=3F0h; IRQ=6; DMA=2]
[IO=3F0h; IRQ=3, 4, 5, 6, 7, 10, 12; DMA=1, 2, 3;]
Device Mode [Read Write]
Allows you to set the mode of floppy disk controller. Selects Read
Write mode for normal operation. Selects Write Protect mode for read
only operation. Configuration options: [Read Write] [Write Protect]
