1-24 Chapter 1: Product introduction
SPEED
LED
ACT/LINK
LED
LAN port
LAN port LED indications
ACT/LINK LED SPEED LED
Status Description Status Description
OFF No link OFF 10 Mbps connection
YELLOW Data activity ORANGE 100 Mbps connection
(blinking)
YELLOW
Linked GREEN 1 Gbps connection
(no blinking)
1.10 Connectors

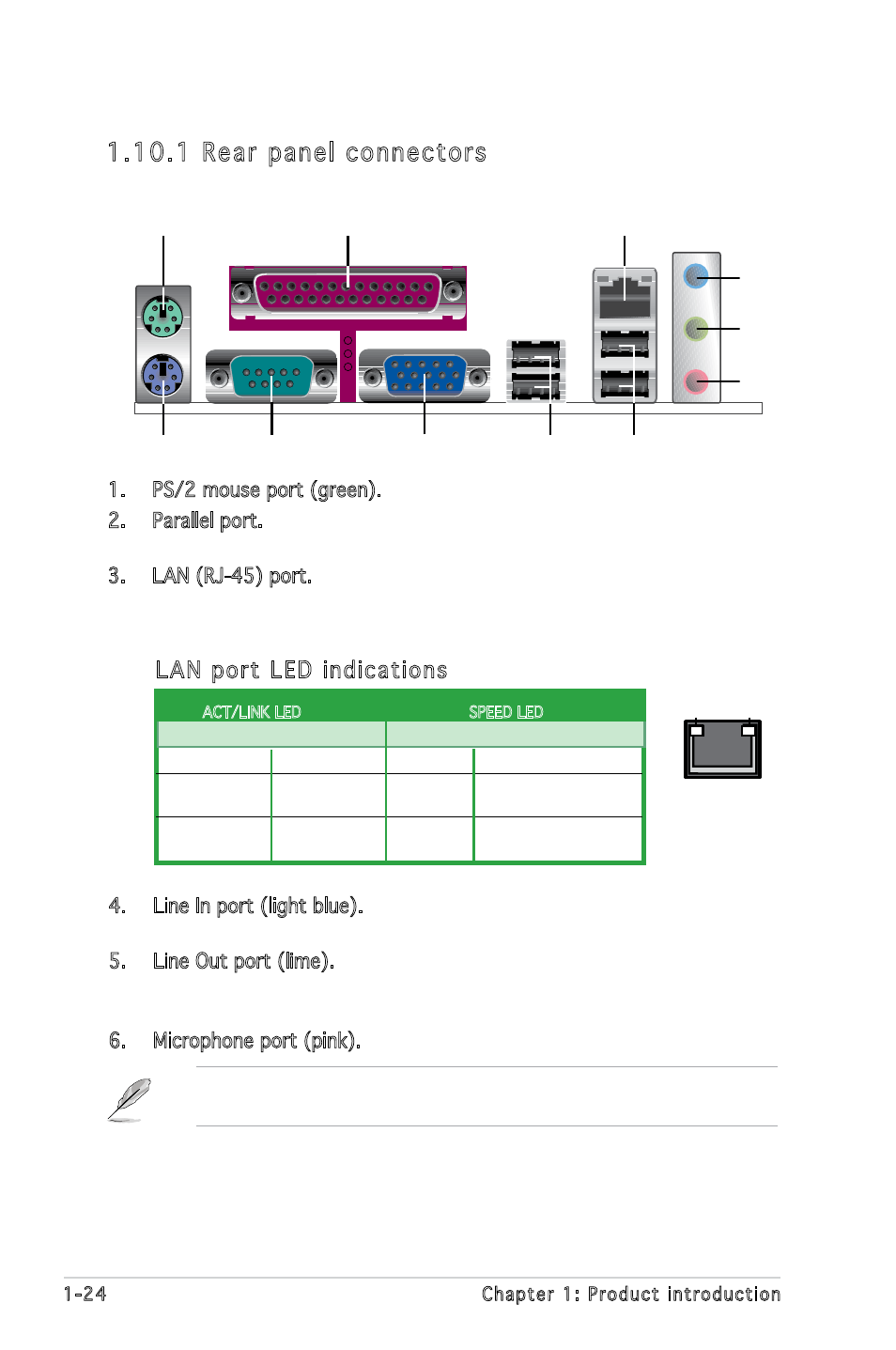

1.10.1 Rear panel connectors
Refer to the audio configuration table on the next page for the function
of the audio ports in 2, 4, or 6-channel configuration.
1. PS/2 mouse port (green). This port is for a PS/2 mouse.
2. Parallel port. This 25-pin port connects a parallel printer, a scanner, or
other devices.
3. LAN (RJ-45) port. This port allows Gigabit connection to a Local Area
Network (LAN) through a network hub. Refer to the table below for
the LAN port LED indications.
4. Line In port (light blue). This port connects the tape, CD, DVD player,
or other audio sources.
5. Line Out port (lime). This port connects a headphone or a speaker. In
4-channel, 6-channel, and 8-channel configuration, the function of this
port becomes Front Speaker Out.
6. Microphone port (pink). This port connects a microphone.
1
11
4
5
6
7
2 3
8 10 9
