2.8 Installing a hard disk drive

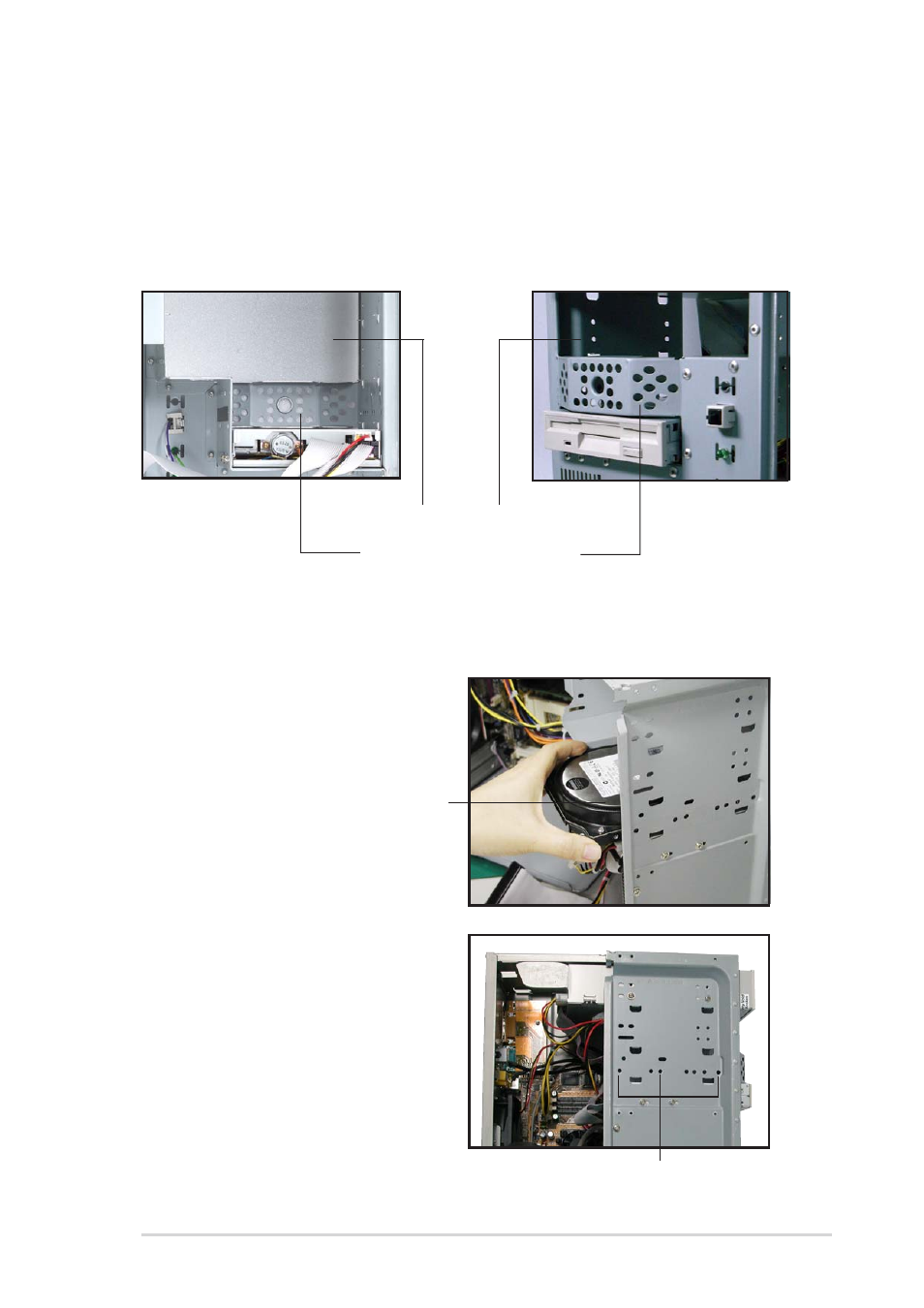

The chassis has one 3.5-inch hard disk drive (HDD) bay right under the
5.25-inch bay. The following figures show the internal and external views of
the HDD bay location.
5 . 2 5 - i n c h D r i v e b a y 5 . 2 5 - i n c h D r i v e b a y 5 . 2 5 - i n c h D r i v e b a y 5 . 2 5 - i n c h D r i v e b a y 5 . 2 5 - i n c h D r i v e b a y
3 . 5 - i n c h H D D d r i v e b a y 3 . 5 - i n c h H D D d r i v e b a y 3 . 5 - i n c h H D D d r i v e b a y 3 . 5 - i n c h H D D d r i v e b a y 3 . 5 - i n c h H D D d r i v e b a y
I n t e r n a l v i e w I n t e r n a l v i e w I n t e r n a l v i e w I n t e r n a l v i e w I n t e r n a l v i e w E x t e r n a l v i e w E x t e r n a l v i e w E x t e r n a l v i e w E x t e r n a l v i e w E x t e r n a l v i e w
Follow these steps to install an IDE
HDD.
1. Place the chassis upright.
2. With the HDD label side up,
carefully insert the drive into
the 3.5-inch bay.
H D D l a b e l s i d e H D D l a b e l s i d e H D D l a b e l s i d e H D D l a b e l s i d e H D D l a b e l s i d e
3. Push the drive into the bay
until its screw holes align with
the holes on the bay marked
HDD.
4. Drive screws into the HDD
screw holes.
HDD screw holes
