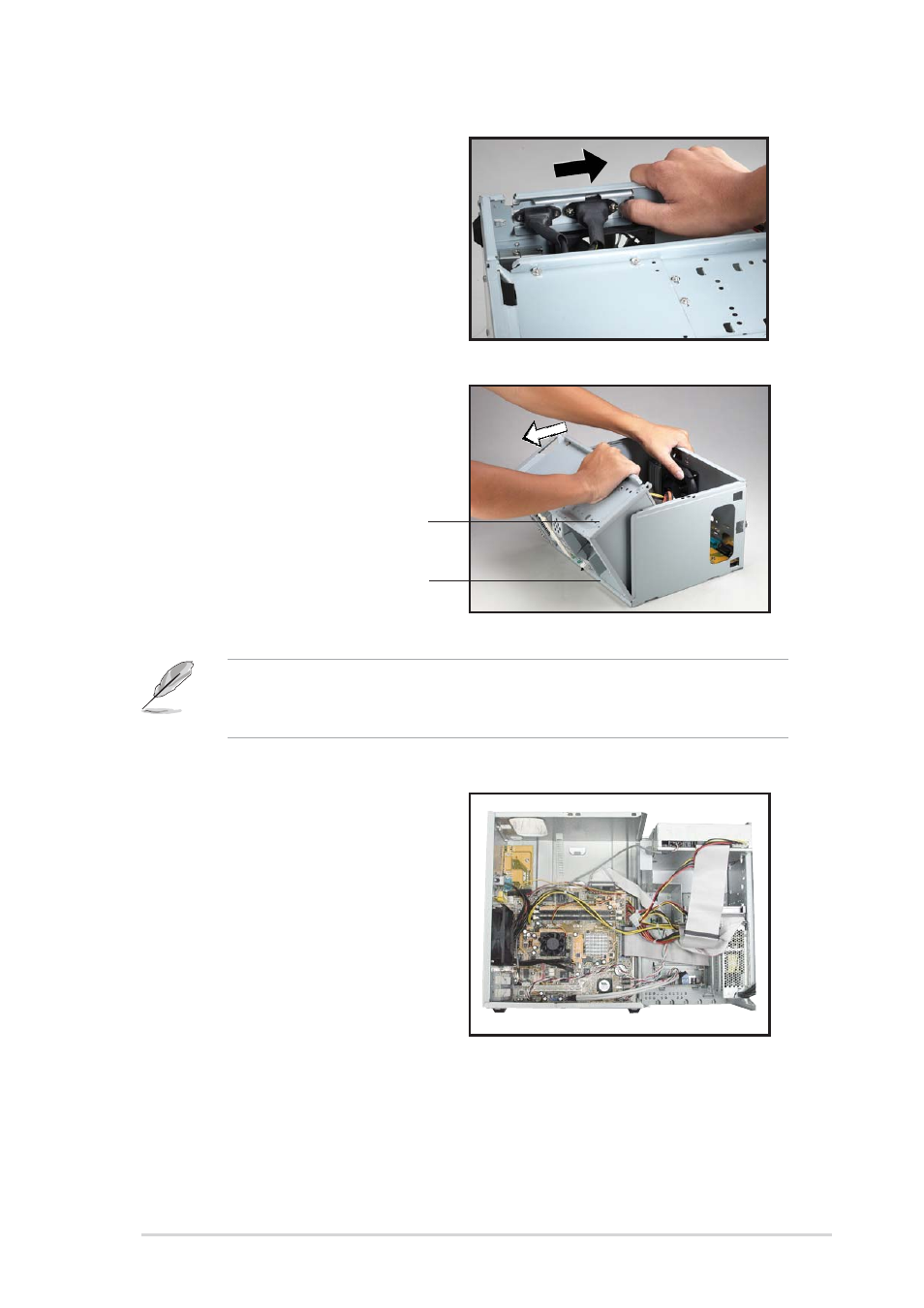

3. Place your thumb on the right
edge of the power socket
module, then slide the module
to the right until it is
completely detached from the
rear panel.
4. Unlatch the drive frame by
pushing it in the direction of
the arrow.
The drive frame has a swivel (hinge-like) edge that is attached to the
main chassis. You do not have to completely detach the drive frame
from the chassis when installing components.
5. Carefully lay the drive frame
alongside the main chassis
frame.
D r i v e f r a m e D r i v e f r a m e D r i v e f r a m e D r i v e f r a m e D r i v e f r a m e
S w i v e l e d g e S w i v e l e d g e S w i v e l e d g e S w i v e l e d g e S w i v e l e d g e
