4. Marvell

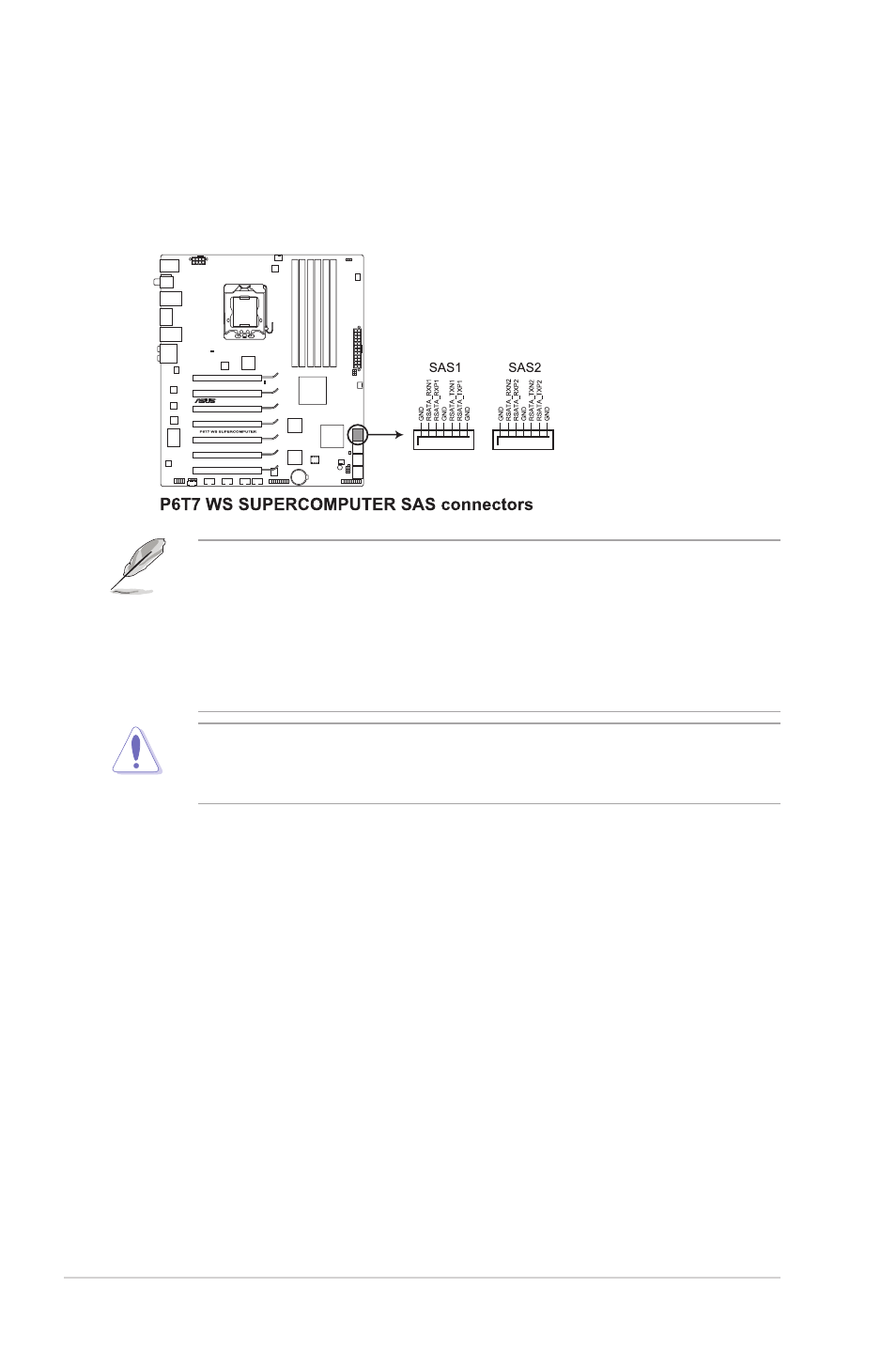

88SE6320 SAS RAID connectors [black] (7-pin SAS1-2)

These connectors are for SAS (Serial Attached SCSI) signal cables that

support SAS hard disk drives. To configure RAID 0 or RAID 1, install two SAS

hard disk drives to these two connectors.

Before creating a RAID set using SAS hard disk drives, ensure that you have

connected the SAS signal cables and installed SAS hard disk drives; otherwise,

you cannot enter the Marvell RAID utility and SAS BIOS setup during POST.

• When ICH10R SATA ports are set to RAID or AHCI mode, SAS HDDs can

be detected in Windows environment only.

• Please install the Marvell

Controller driver before using the black SAS

RAID connectors (SAS1-2). See section 4.2.2 Drivers menu for details.

• Before creating a RAID set, see section 4.4.5 Marvell

SAS RAID

configurations for details..
