2.7.3. ASUS Q-Connector (system panel)
Use the ASUS Q-Connector to connect/disconnect the chassis front panel cables.

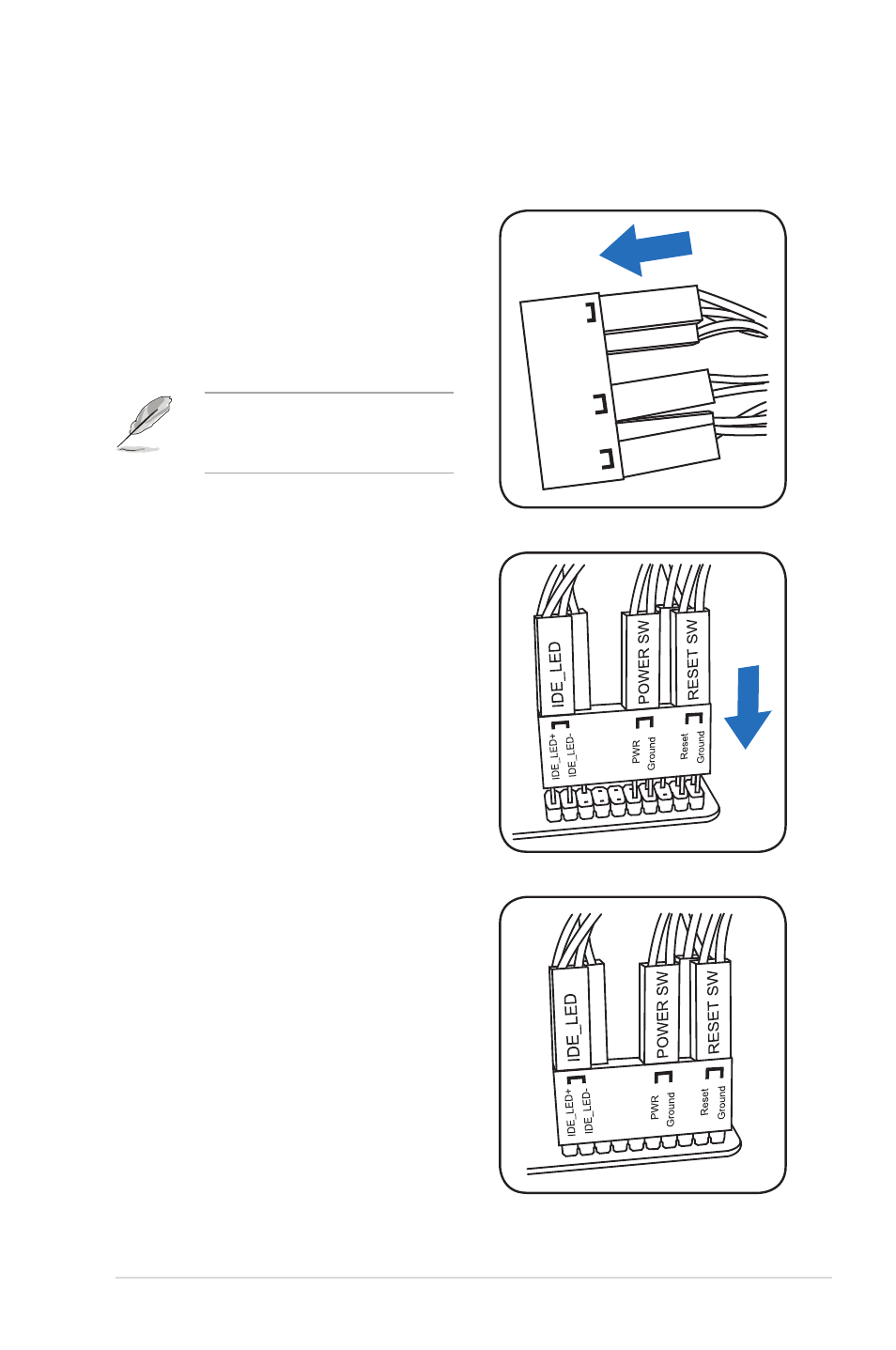

1. Connect the front panel cables to the
ASUS Q-Connector.
Refer to the labels on the Q-Connector
to know the detailed pin definitions, and
then match them to their respective
front panel cable labels.
The labels on the front panel
cables may vary depending on
the chassis model.
IDE_LED
POWER SW
RESET SW
IDE_LED-
IDE_LED+
PWR
Reset
Ground
Ground
2. Install the ASUS Q-Connector to the
system panel connector, ensuring the
orientation matches the labels on the
motherboard.
3. The front panel functions are now
enabled. The figure shows the
Q-Connector is properly installed on the
motherboard.
ASUS P6T7 WS SuperComputer 2-33
