2.7.2 2.7.2 2.7.2 2.7.2 2.7.2 Internal connectors Internal connectors Internal connectors Internal connectors Internal connectors
1 . 1 . 1 . 1 . 1 . F l o p p y d i s k d r i v e c o n n e c t o r ( 3 4 - 1 p i n F L O P P Y ) F l o p p y d i s k d r i v e c o n n e c t o r ( 3 4 - 1 p i n F L O P P Y ) F l o p p y d i s k d r i v e c o n n e c t o r ( 3 4 - 1 p i n F L O P P Y ) F l o p p y d i s k d r i v e c o n n e c t o r ( 3 4 - 1 p i n F L O P P Y ) F l o p p y d i s k d r i v e c o n n e c t o r ( 3 4 - 1 p i n F L O P P Y )
This connector is for the provided floppy disk drive (FDD) signal cable.
Insert one end of the cable to this connector, then connect the other
end to the signal connector at the back of the floppy disk drive.
Pin 5 on the connector is removed to prevent incorrect cable connection
when using an FDD cable with a covered Pin 5.

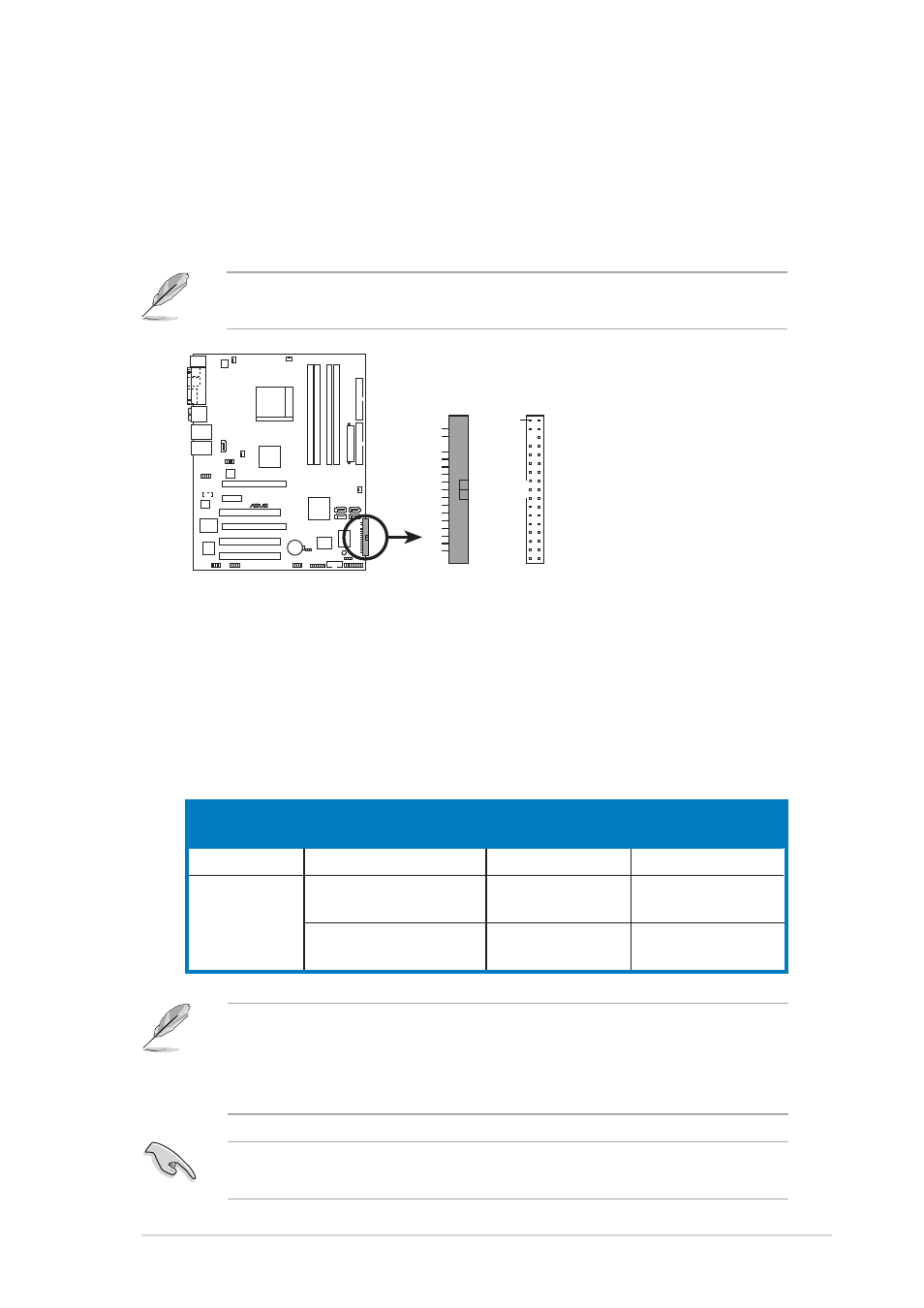

A8R32-MVP DELUXE
®
A8R32-MVP DELUXE Floppy disk drive connector
NOTE: Orient the red markings on
the floppy ribbon cable to PIN 1.
FLOPPY PIN 1
2 . 2 . 2 . 2 . 2 . I D E c o n n e c t o r s ( 4 0 - 1 p i n P R I _ I D E ; 4 0 - 1 p i n S E C _ I D E ) I D E c o n n e c t o r s ( 4 0 - 1 p i n P R I _ I D E ; 4 0 - 1 p i n S E C _ I D E ) I D E c o n n e c t o r s ( 4 0 - 1 p i n P R I _ I D E ; 4 0 - 1 p i n S E C _ I D E ) I D E c o n n e c t o r s ( 4 0 - 1 p i n P R I _ I D E ; 4 0 - 1 p i n S E C _ I D E ) I D E c o n n e c t o r s ( 4 0 - 1 p i n P R I _ I D E ; 4 0 - 1 p i n S E C _ I D E )
The onboard IDE connectors are for Ultra DMA (133/)100/66 signal
cable(s). There are three connectors on each Ultra DMA 133/100/66
signal cable: blue, black, and gray. Connect the blue connector to the
motherboard's IDE connector, then select one of the following modes
to configure your device(s).
• Pin 20 on the IDE connector is removed to match the covered hole
on the Ultra DMA cable connector. This prevents incorrect insertion
when you connect the IDE cable.
• Use the 80-conductor IDE cable for Ultra DMA 100/66 IDE devices.
Black or gray
D r i v e j u m p e r D r i v e j u m p e r D r i v e j u m p e r D r i v e j u m p e r D r i v e j u m p e r M o d e M o d e M o d e M o d e M o d e C a b l e C a b l e C a b l e C a b l e C a b l e
s e t t i n g s e t t i n g s e t t i n g s e t t i n g s e t t i n g o f d e v i c e ( s ) o f d e v i c e ( s ) o f d e v i c e ( s ) o f d e v i c e ( s ) o f d e v i c e ( s ) c o n n e c t o r c o n n e c t o r c o n n e c t o r c o n n e c t o r c o n n e c t o r
Single device Cable-Select or Master - Black
Two devices Cable-Select Master Black
Slave Gray
Master Master
Slave Slave
If any device jumper is set as "Cable-Select," make sure all other device
jumpers have the same setting.
