2 - 6 2 - 6 2 - 6 2 - 6 2 - 6 C h a p t e r 2 : H a r d w a r e i n f o r m a t i o n C h a p t e r 2 : H a r d w a r e i n f o r m a t i o n C h a p t e r 2 : H a r d w a r e i n f o r m a t i o n C h a p t e r 2 : H a r d w a r e i n f o r m a t i o n C h a p t e r 2 : H a r d w a r e i n f o r m a t i o n

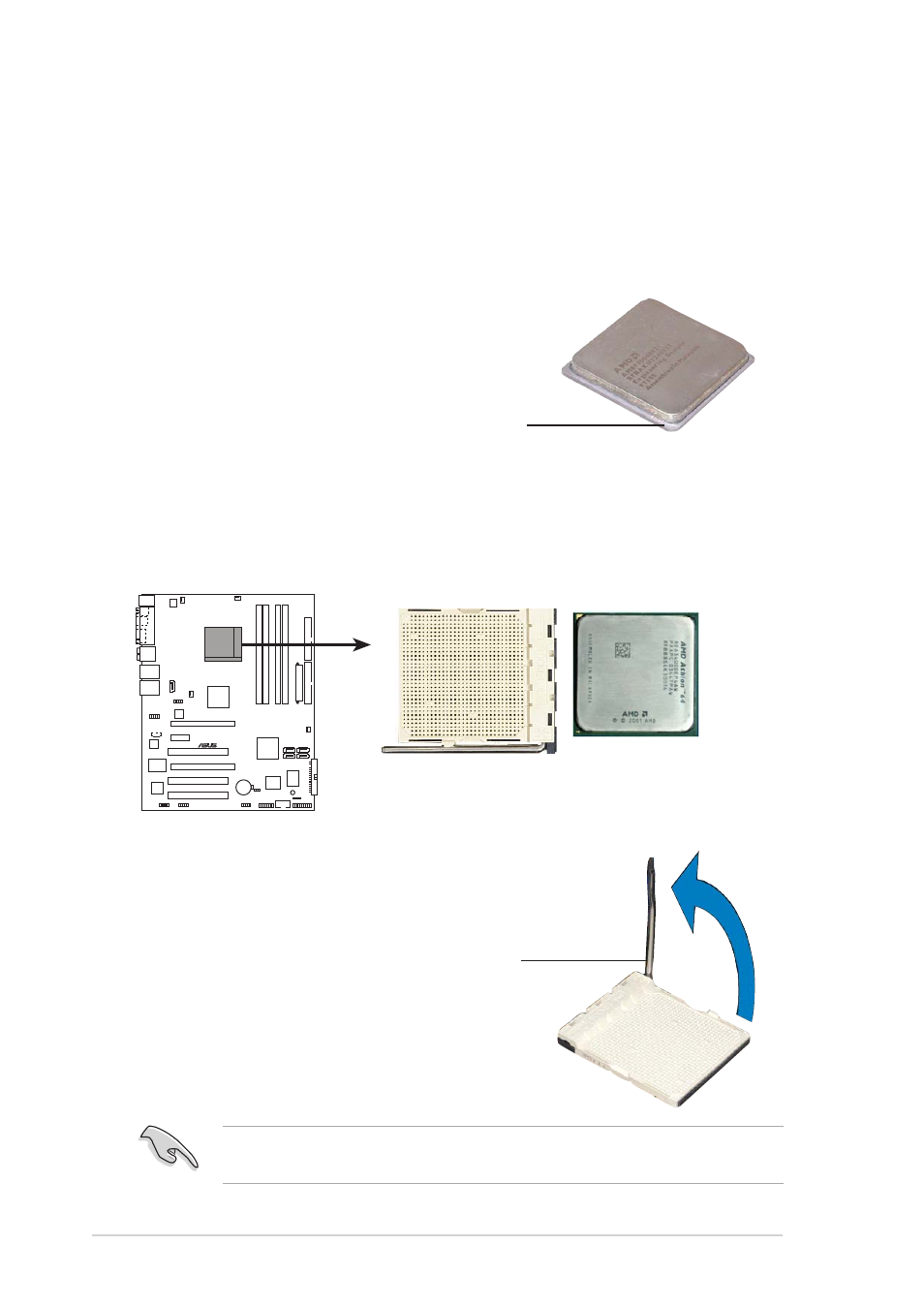

2.3 Central Processing Unit (CPU)
The motherboard comes with a surface mount 939-pin Zero Insertion Force
(ZIF) socket designed for the AMD AMD Opteron™/Athlon™ 64 X2/
Athlon™ 64 FX/Athlon™ 64 processor.
The 128-bit-wide data paths of these processors can run applications
faster than processors with only 32-bit or 64-bit wide data paths.
Take note of the marked corner (with gold
triangle) on the CPU. This mark should match
a specific corner on the socket to ensure
correct installation.
G o l d G o l d G o l d G o l d G o l d
t r i a n g l e
t r i a n g l e t r i a n g l e t r i a n g l e t r i a n g l e
2.3.1 2.3.1 2.3.1 2.3.1 2.3.1 Installing the CPU Installing the CPU Installing the CPU Installing the CPU Installing the CPU
To install a CPU.
1. Locate the 939-pin ZIF socket on the motherboard.
2. Unlock the socket by pressing
the lever sideways, then lift it up
to a 90°-100° angle.
Make sure that the socket lever is lifted up to 90°-100° angle, otherwise
the CPU does not fit in completely.
S o c k e t l e v e r S o c k e t l e v e r S o c k e t l e v e r S o c k e t l e v e r S o c k e t l e v e r
A8R32-MVP DELUXE
®
A8R32-MVP DELUXE CPU Socket 939
