ASUS H81T 1-3

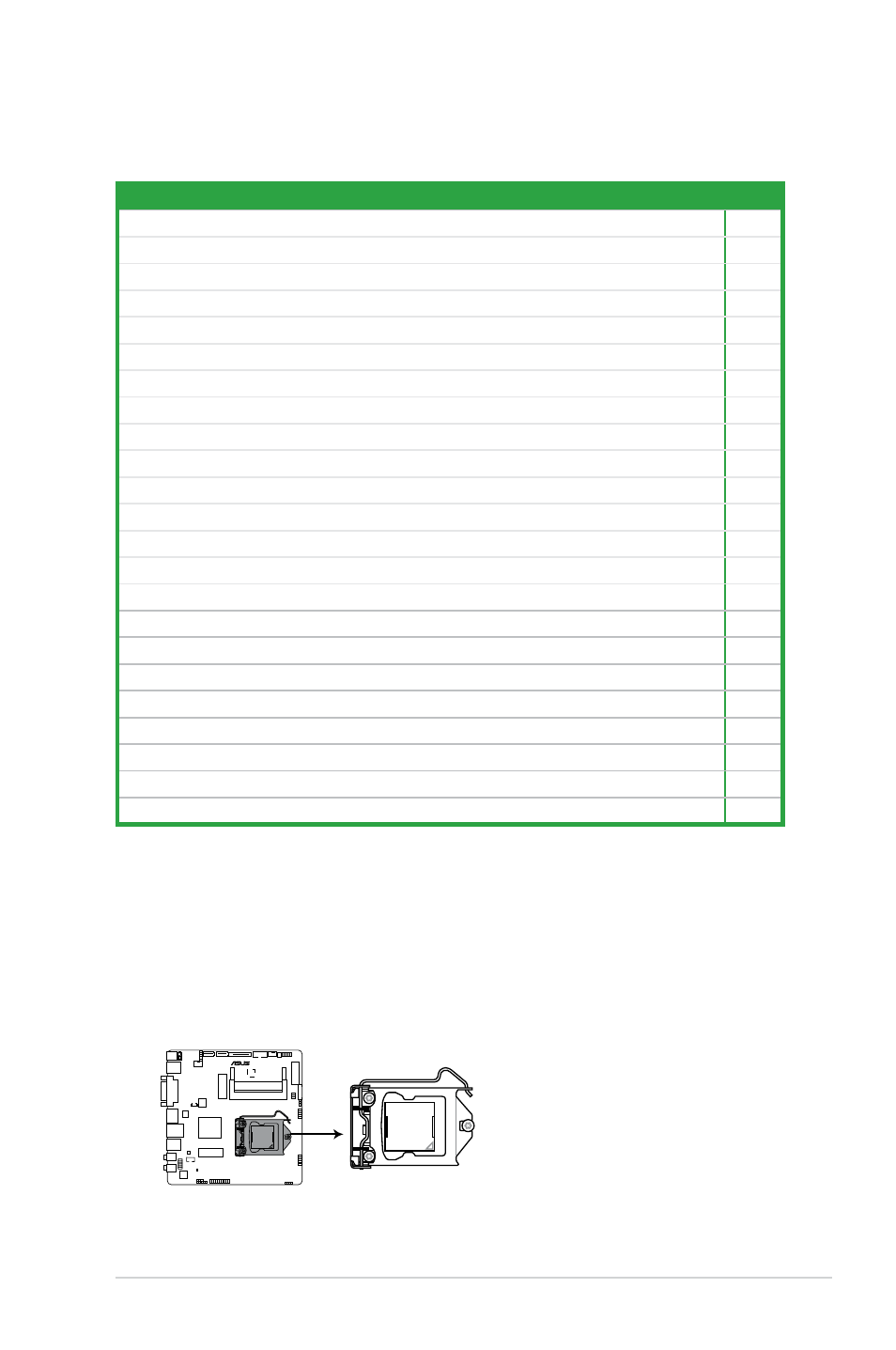

1.2.4 Layout contents
Connectors/Jumpers/Slots/LED Page
1. ATX power connector (2-pin ATX19V1) 1-15
2. CPU and chassis fan connectors (4-pin CPU_FAN, 4-pin CHA_FAN) 1-13
3. USB 2.0 connectors (5-1 pin USB11, 10-1 pin USB910, 10-2 pin USB56) 1-16
4. Intel ® H81 Serial ATA 6.0Gb/s connector (7-pin SATA6G_1 [yellow]) 1-14
5. Intel ® H81 Serial ATA 3.0Gb/s connector (7-pin SATA3G_1 [brown]) 1-14
6. SATA power connector (15-pin SATA_PWRCON) 1-15
7. DDR3 SO-DIMM slots 1-7
8. Serial port connector (10-1 pin COM) 1-13
9. Display panel power button (2 pin PANEL_SW) 1-17
10. System panel connector (10-1 pin F_PANEL) 1-17
11. LVDS connector (30-pin LVDS) 1-18
12. Flat panel display brightness (8-pin LCD_BLKT_PANEL) 1-18
13. Display panel backlight power selector (3-pin BLKT_PWR-SEL) 1-11
14. Display panel VCC power selector (6-pin VCC_PWR_SEL) 1-11
15. Chassis intrusion connector (4-1 pin CHASSIS) 1-11
16. Intel ® LGA1150 CPU socket 1-3
17. Onboard LED (SB_PWR) 1-19
18. TPM header (20-1 pin TPM) 1-16
19. DMIC connectors (5-1 pin DMIC) 1-18
20. Clear RTC RAM (3-pin CLRTC) 1-10
21. Front panel audio connector (10-1 pin AAFP) 1-15
22. Internal Stereo Speaker connector (4-pin SPK_OUT) 1-19
23. RTC battery header (2-pin BATT_CON) 1-18
1.3 Central Processing Unit (CPU)
This motherboard comes with a surface mount LGA1150 socket designed for the Intel 4th
generation Core™ i7 / Core™ i5 / Core™ i3, Pentium ® , Celeron ® processors.
H81T
H81T CPU socket LGA1150
