1-2

Chapter 1: Product introduction

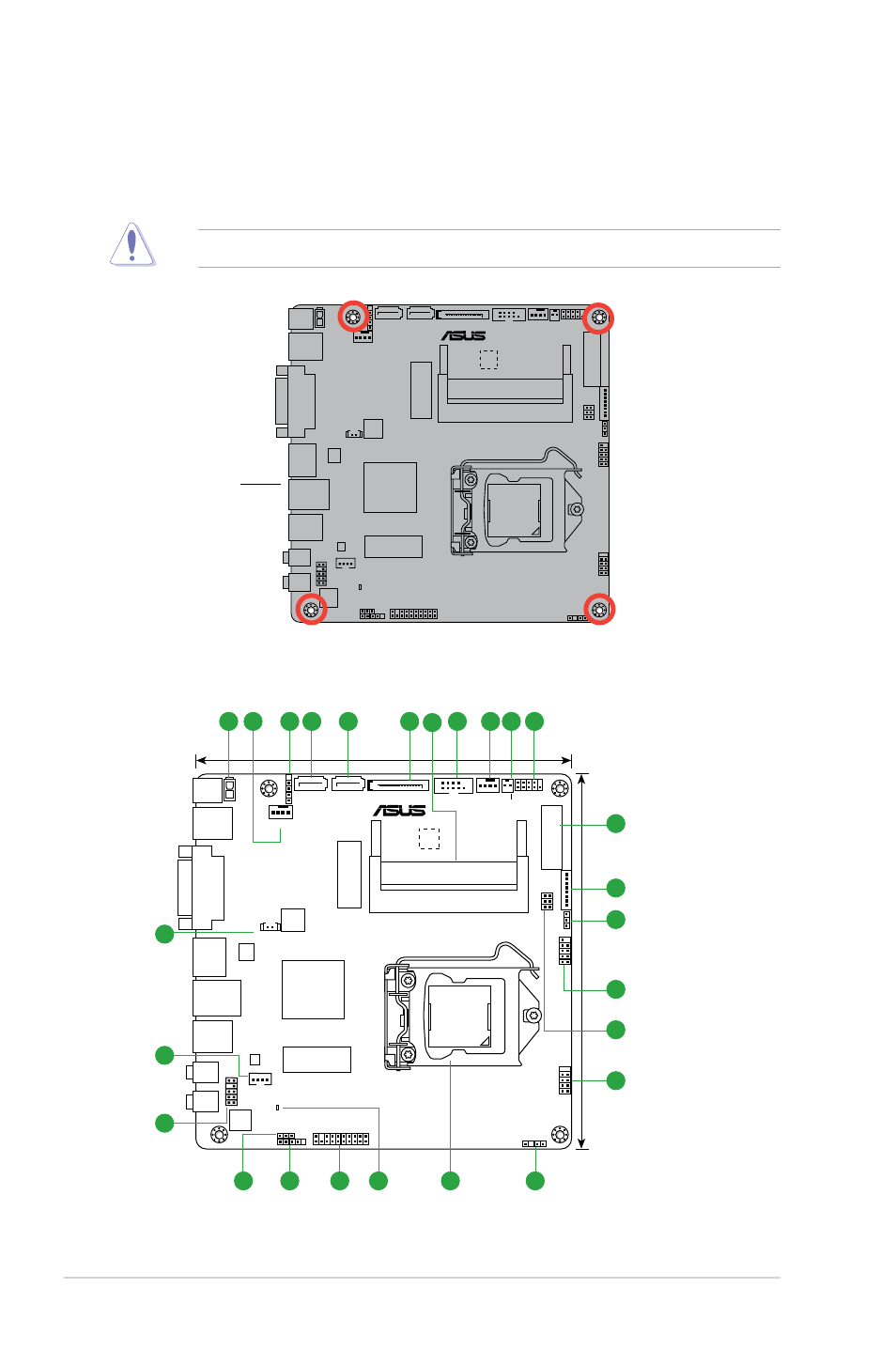

1.2.2

Screw holes

Place six screws into the holes indicated by circles to secure the motherboard to the chassis.

Do not overtighten the screws! Doing so can damage the motherboard.

H81T

Place this side

towards the rear

of the chassis

1.2.3

Motherboard layout

H81T

F_PANEL

COM

SATA_PWRCON

AAFP

LINE_OUT

HDMI

_ESATA3G1

LAN

USB3_12

USB34

DC_PWR

MIC IN

CLRTC

CPU_FAN

CHA_FAN

ALC887

-VD

64Mb

BIOS

17cm(6.7in)

PANEL_SW

LCD_BLKT_PANEL

LVDS

SATA6G_1

SATA3G_1

DMIC

USB11

SB_PWR

VCC_PWR_SEL

CHASSIS

BLKT_PWR_SEL

SPK_OUT

MSATA

MPCIE

ATX19V1

DDR3 DIMM_B1 (64bit, 204-pin module)

DDR3 DIMM_A1 (64bit, 204-pin module)

USB56

USB910

BATT_CON

ASM

1442K

Realtek

8111G

LGA1150

Intel

H81

Super

I/O

DVI-I

TPM

6 7 8
