3. HARDWARE SETUP
Motherboard Settings
3. H/W SETUP
1) PCI 3Volt Setting (3VSBSLT)
This jumper allows you to select the voltage supplied to PCI devices. If you
have PCI devices that require auxiliary power, set this jumper to 3 VSB.
Setting 3VSBSLT
3 Volt [1-2]
3 VSB [2-3] (default)
2) 3.3V Power Source Setting (JP3001–JP3008) (Requires optional components.)
This jumper lets you select the onboard 3.3V from the motherboard if your ATX
power supply does not have a 3.3V lead and 3.3V optional components are
mounted on the motherboard. This motherboard normally does not have the
3.3V components and therefore requires a standard ATX power supply with its
own 3.3V lead.
Setting JP3001-JP3008
3.3V from PWR [1-2] (default)
3.3V from MB [0-0]
01 01 01

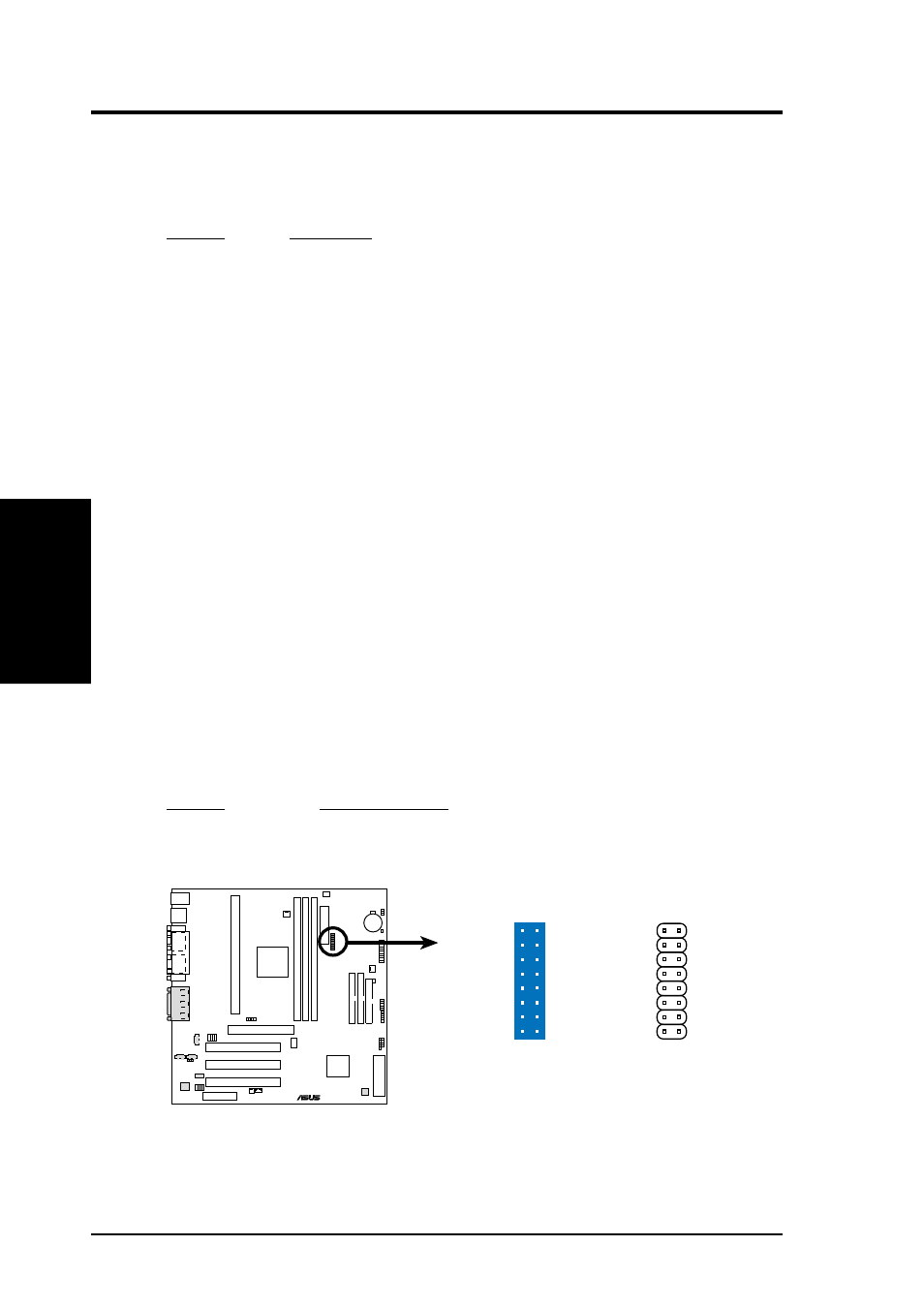

K7M-RM
®
K7M-RM 3.3V Power Source Setting
JP3001–JP3008
3.3V
from Power Supply
(Default)
3.3V
from Motherboard
JP3001
JP3008
