Chapter 1: Product introduction

7.

Serial ATA connectors (7-pin SATA1-6)
These connectors are for the Serial ATA signal cables for Serial ATA 3Gb/s hard disk

and optical disk drives. The Serial ATA 3Gb/s is backward compatible with Serial ATA

1.5Gb/s specification. The data transfer rate of the Serial ATA 3Gb/s is faster than the

standard parallel ATA with 133 MB/s (Ultra DMA133).

8.

Serial port connector (10-1 pin COM1)
This connector is for a serial (COM) port. Connect the serial port module cable to this

connector, then install the module to a slot opening at the back of the system chassis.

The COM module is purchased separately.

P7H55-V

SATA1

GND

RSATA_TXP1

RSATA_TXN

1

GND

RSATA_RXP1

RSATA_RXN

1

GND

SATA2

GND

RSATA_TXP2

RSATA_TXN

2

GND

RSATA_RXP2

RSATA_RXN

2

GND

SATA3

GND

RSATA_RXN

3

RSATA_RXP3

GND

RSATA_TXN

3

RSATA_TXP3

GND

SATA4

GND

RSATA_RXN

4

RSATA_RXP4

GND

RSATA_TXN

4

RSATA_TXP4

GND

SATA5

GND

RSATA_RXN

5

RSATA_RXP5

GND

RSATA_TXN

5

RSATA_TXP5

GND

SATA6

GND

RSATA_RXN

6

RSATA_RXP6

GND

RSATA_TXN

6

RSATA_TXP6

GND

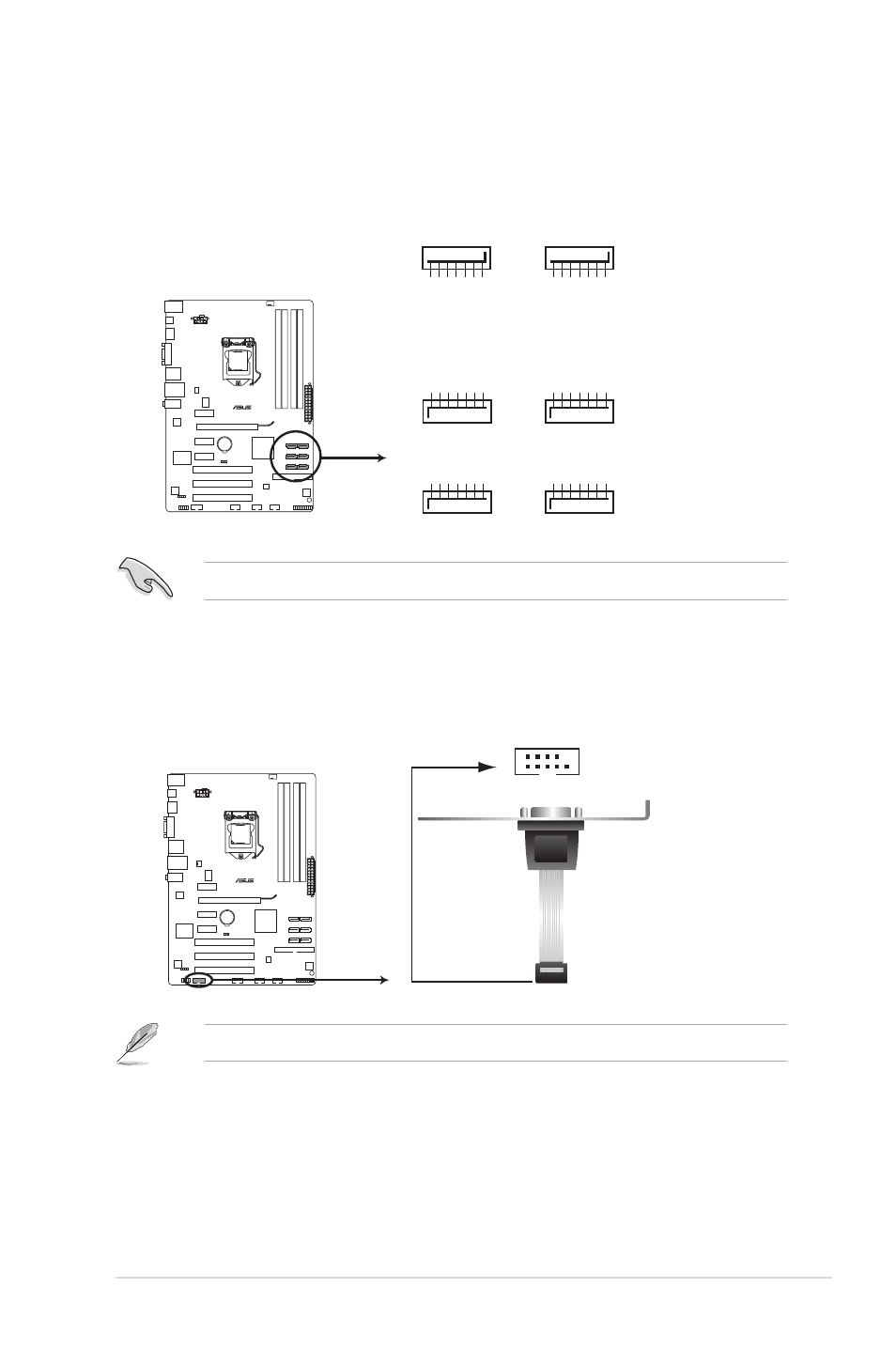

P7H55-V SATA connectors

P7H55-V

P7H55-V Serial port (COM1) connector

PIN 1

COM1

Install the Windows

®

XP Service Pack 2 or later version before using Serial ATA.
