Chapter 1: Product introduction

• For a fully configured system, we recommend that you use a power supply unit (PSU)

that complies with EATX 12 V Specification 2.0 (or later version) and provides a

minimum power of 400 W.

• DO NOT forget to connect the 4-pin/8-pin EATX +12V power plug. Otherwise, the

system will not boot up.

• If you are uncertain about the minimum power supply requirement for your system,

refer to the Recommended Power Supply Wattage Calculator at http://support.asus.

com/PowerSupplyCalculator/PSCalculator.aspx?SLanguage=en-us for details.

3.

ATX power connectors (24-pin EATXPWR, 8-pin EATX12V)
These connectors are for ATX power supply plugs. The power supply plugs are

designed to fit these connectors in only one orientation. Find the proper orientation and

push down firmly until the connectors completely fit.

4.

USB connectors (10-1 pin USB78, USB910, USB1112)
These connectors are for USB 2.0 ports. Connect the USB module cable to any of

these connectors, then install the module to a slot opening at the back of the system

chassis. These USB connectors comply with USB 2.0 specification that supports up to

480 Mbps connection speed.

Never connect a 1394 cable to the USB connectors. Doing so will damage the motherboard!

The USB module cable is purchased separately.

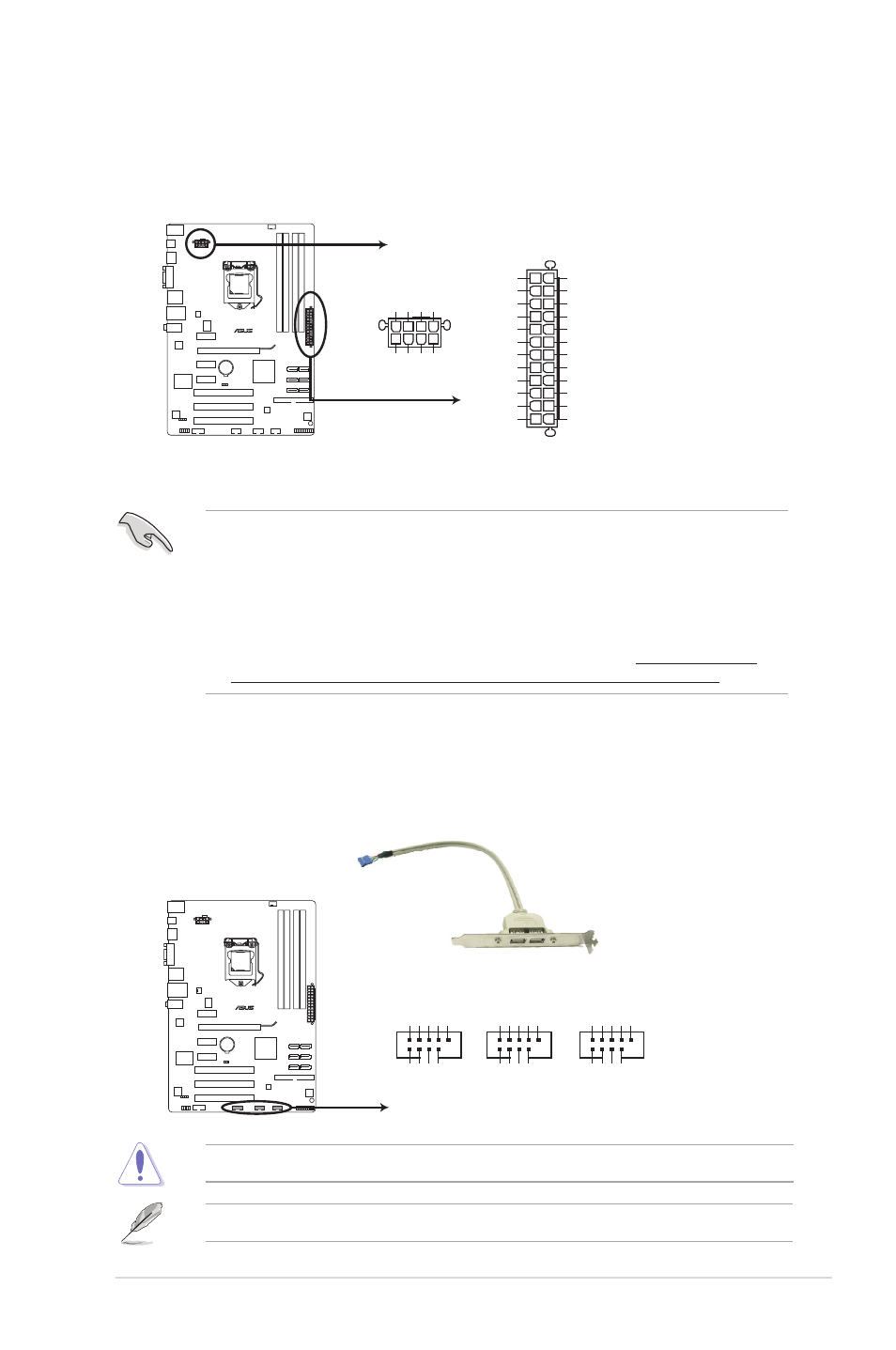

P7H55-V

P7H55-V EATX power connectors

EATXPWR

PIN 1

GND
+5 Volts
+5 Volts
+5 Volts
-5 Volts
GND
GND
GND
PSON#
GND
-12 Volts
+3 Volts

+3 Volts

+12 Volts
+12 Volts

+5V Standby

Power OK

GND

+5 Volts

GND

+5 Volts

GND

+3 Volts
+3 Volts

EATX12V

PIN 1

+12V DC

+12V DC

+12V DC

+12V DC

GND

GND

GND

GND

P7H55-V

P7H55-V USB2.0 connectors

USB+5V

USB_P12-

USB_P12+

GND

NC

USB+5V

USB_P11-

USB_P11+

GND

USB1112

PIN 1

USB+5V

USB_P10-

USB_P10+

GND

NC

USB+5V

USB_P9-

USB_P9+

GND

USB910

PIN 1

USB+5V

USB_P8-

USB_P8+

GND

NC

USB+5V

USB_P7

USB_P7+

GND

USB78

PIN 1
