32 Chapter 3: Motherboard Information
3.3 Jumper Settings
The following jumper settings are for your reference in case you
accidentally pull out jumper caps. DO NOT change the jumper settings
to ensure stable system operation.
2. USB Device Wake Up. Set these jumpers to +5V to allow wake
up from S1 sleep state (CPU stopped; RAM refreshed; system
running in low power mode) using the connected USB devices.
Set to +5VSB to allow wake up from S3 state (no power to CPU;
RAM in slow refresh; power supply in reduced power mode).
CUSC
®
CUSC USB Device Wake Up
USBPWR1
+5VSB +5V
1 2 2 3
USBPWR

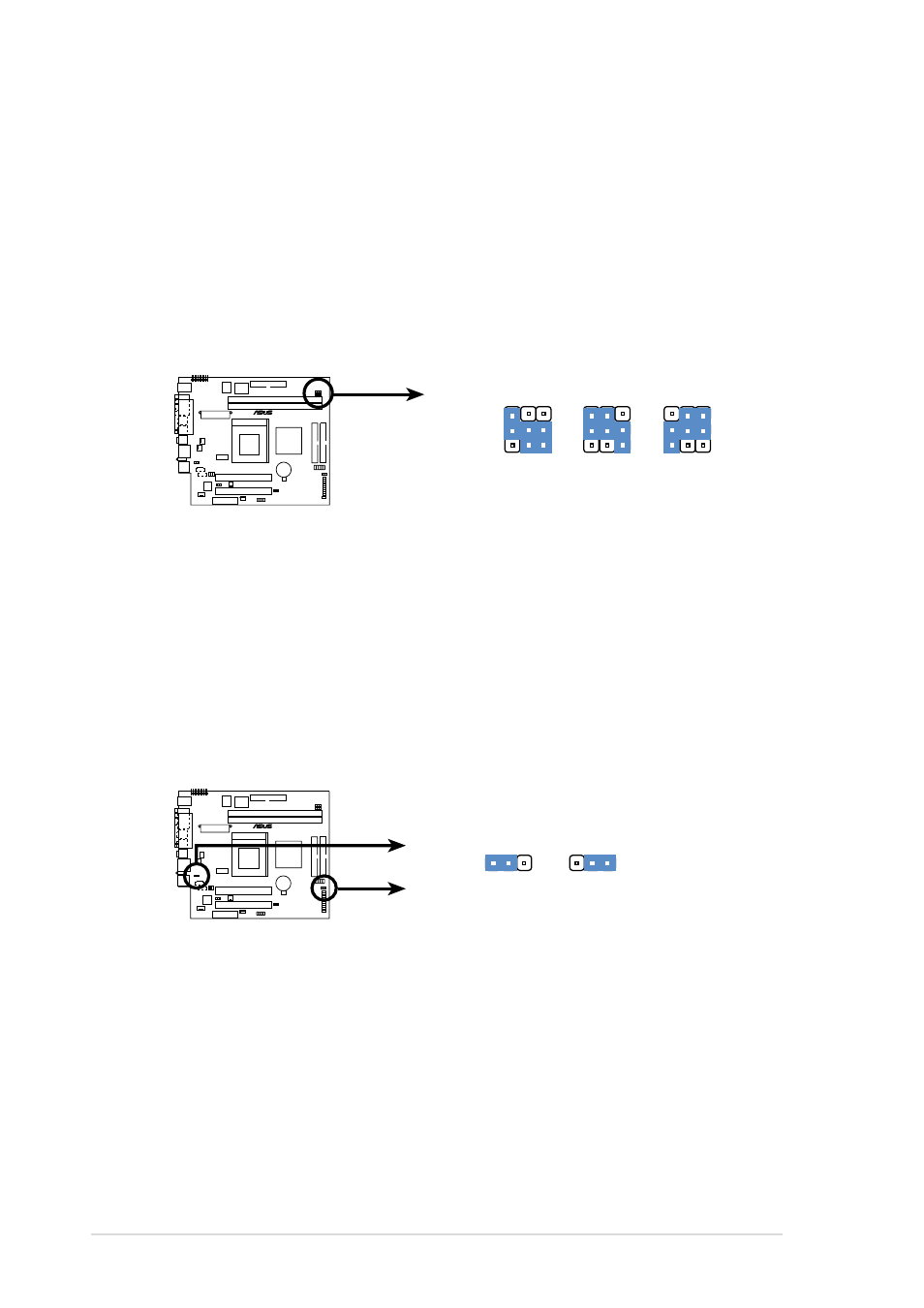

1. External Frequency Selection. These jumper settings tell the
clock generator what frequency to send to the CPU, DRAM, and
PCI buses.
CUSC
®
CUSC External Clock
(BUS) Frequency Selection
CPU
SDRAM
PCI
133.3MHz
33.3MHz
133.3MHz
100.0MHz
133.3MHz
33.3MHz
100.0MHz
66.6MHz
33.3MHz
1
(Default)
1 1
JP0 JP1 JP2 JP0 JP1 JP2 JP0 JP1 JP2
