Fiber Tap HD8
6
Connecting to the Monitoring Device
1 . Connect to the Monitor Port using a Net Optics custom LC analyzer cable
2. Connect one side of the twin-duplex fiber cable into a RX port on the
monitoring device to view one side of the full-duplex link .
3. Connect the other side of the twin-duplex fiber cable into another RX port
on the monitoring device to view the other side of the full-duplex link .
4 . Verify that the Tap Monitor Port is cabled to the monitoring device .
5 . Repeat steps 1-4 as needed for remaining segements .
Note: ________________________________________________________________
The connectors on the twin-duplex side of the custom analyzer cable contain
RX connections only. The empty TX sides are present to eliminate cabling
errors and should also be connected to the monitoring device
.
______________________________________________________________________

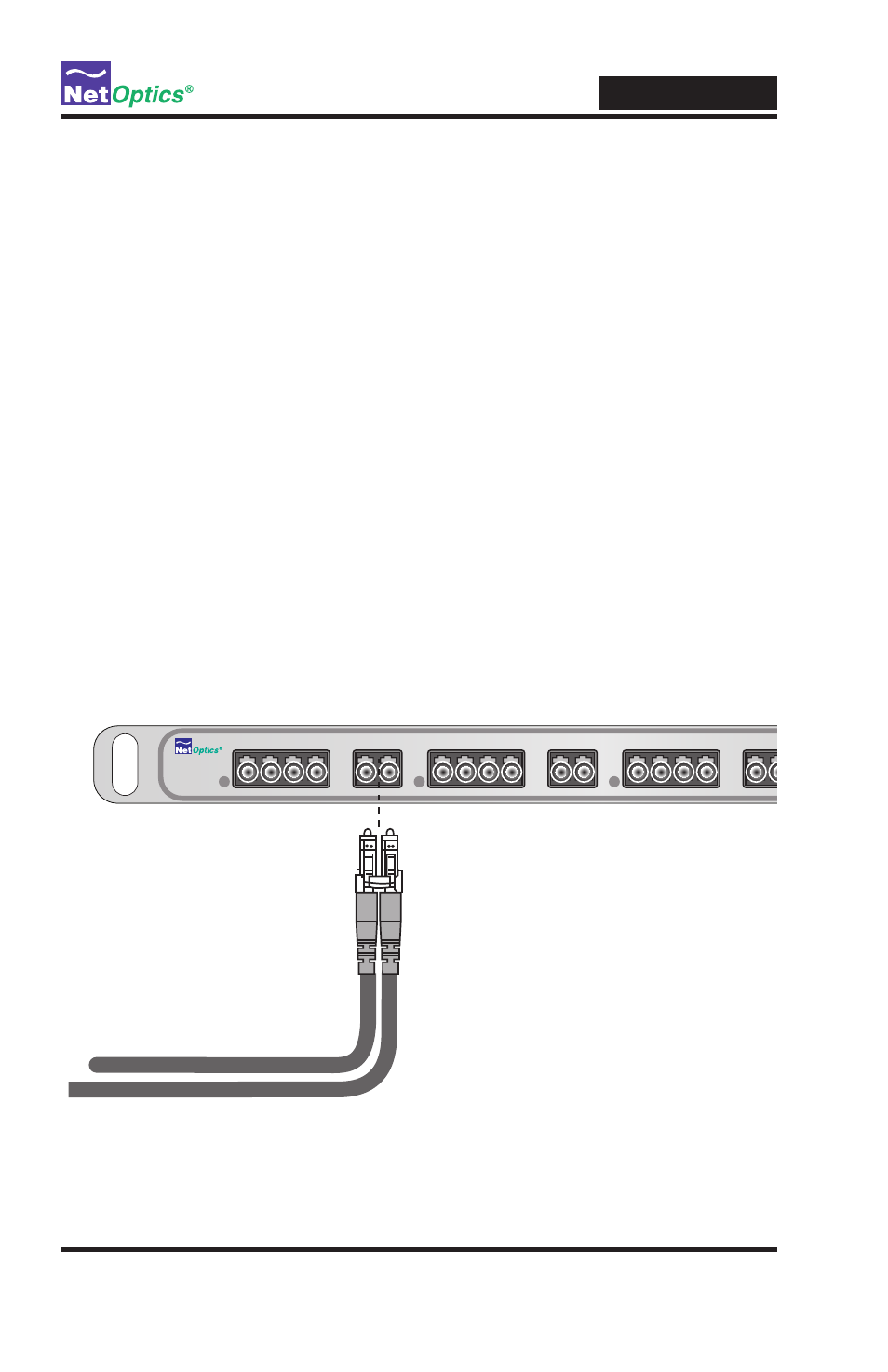

Figure 3: Connecting the Monitoring Device
To Monitoring Device
Splitter Tap HD8
Splitter Tap HD8
www.netoptics.com
A
B
A
A B
B
OUT
IN
OUT
IN
OUT OUT
A
B
A
A
OUT
IN
OUT
IN
OUT OUT
A
B
A
A B
B
OUT
IN
OUT
IN
OUT OUT
A
B
A
A B
B
OUT
IN
OUT
IN
OUT OUT
1
2
4
3
