GigaBit Fiber In-Line Regeneration Taps
5
Connecting to the Network
1 ..Connect.Network.Port.A.to.the.appropriate.switch,.server.or.router.device.
using.a.duplex.SC.fiber.cable .
2 ..Connect.Network.Port.B.to.the.appropriate.switch,.server.or.router.device.
using.a.duplex.SC.fiber.cable .
3 .. Verify.that.the.GigaBit.Fiber.Regeneration.Tap.Network.Ports.are.cabled.
in-line.between.two.devices .

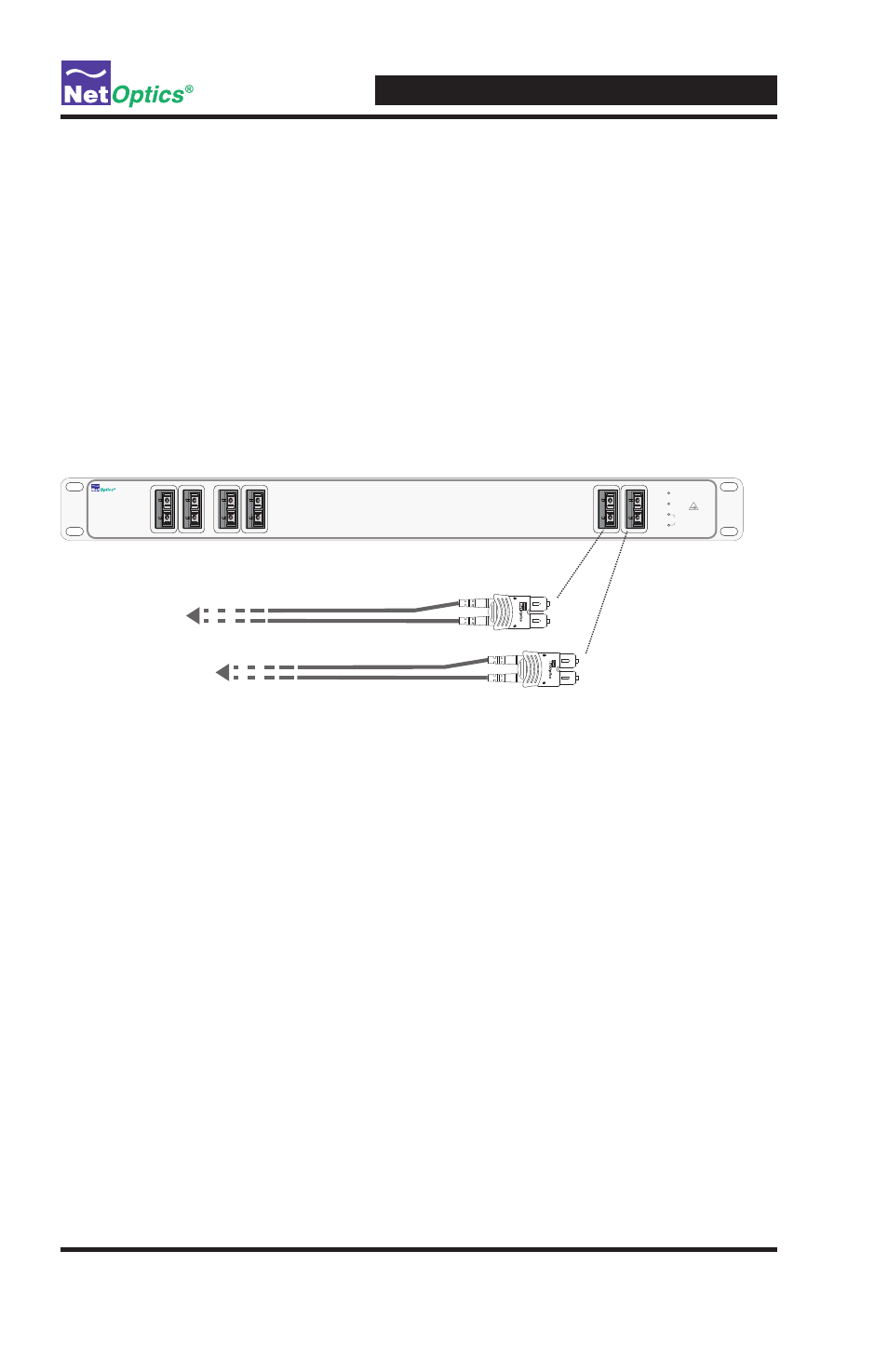

Figure 5: Connecting to the Network
Note: ________________________________________________________________
The use of Singlemode or Multimode (50 or 62.5µm) cable is determined by
the model purchased.
______________________________________________________________________
Regeneration Tap™
www.netoptics.com
B
A
M
o
n
it
o
r
N
et
w
o
rk
LASER
CAUTION!
LINK
1
2
B
A
1
2
A
B
3
4
To switch or router
To switch or router
Tx
Tx
B
A
B
A
