GigaBit Fiber In-Line Regeneration Taps
6
Connecting to the Monitoring Devices
1 ...Supply.power.to.the.Tap.using.the.power.supply.adapter.included.with.the.
unit ..Verify.that.the.power.LED.illuminates .
Note: _______________________________________________________________
The second power supply is available to support the flow of traffic to the
monitoring device should the first power supply fail. If the first power supply
is unavailable, the second power supply supplies all power for the Tap.
______________________________________________________________________
2 ...Connect.the.twin-duplex.end.of.the.cable.into.the.appropriate.monitoring.
device.port.to.monitor.the.link .
3 ...Connect.the.twin-duplex.end.to.the.appropriate.monitoring.device.port.to.
monitor.the.link ..The.SC.connectors.on.the.Custom.Monitor.Cable.contain.
RX.connections.only .

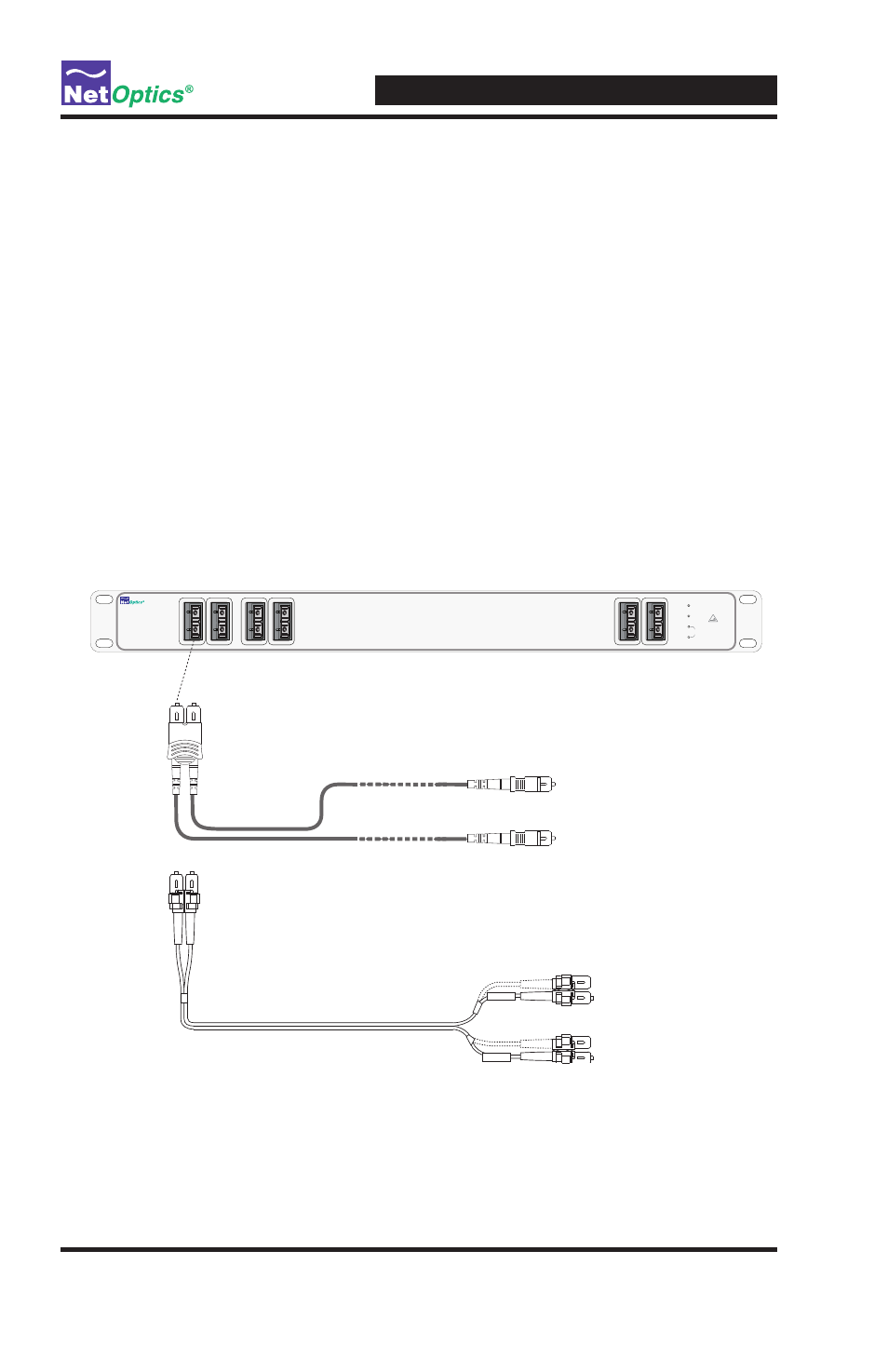

Figure 6: Connecting the Monitoring Devices
4 ...Repeat.Steps.2-3.for.each.monitoring.device.you.wish.to.connect.to.the.
Regeneration.Tap .
Regeneration Tap™
www.netoptics.com
B
A
M
o
n
it
o
r
N
et
w
o
rk
LASER
CAUTION!
LINK
1
2
B
A
1
2
A
B
3
4
To Monitor NIC
To Monitor NIC
DTE
DCE
To Monitor NIC
To Monitor NIC
Standard SC/SC Cable
Net Optics Custom
Monitor Cable
