ONE INCH SQUARE LOW PHASE NOISE OCXO
3.3 to 12Vdc - 1MHz to 125MHz
Q-TECH
CORPORATION
QPDS-0005 (Revision A, April 2013 )(ECO # 10836)
5 of 6
Environmental Specifications
Q-Tech Standard Screening similar to (MIL-PRF-55310) is available. Q-Tech can also customize screening and test procedures to meet
your specific requirements. The packages are designed and processed to exceed the following test conditions:
Environmental Test Test Conditions
Temperature cycling MIL STD 883, Method 1010, Cond. B
Constant acceleration MIL STD 883, Method 2001, Cond. A, Y1
Seal Fine Leak MIL STD 883, Method 1014, Cond. A
Burn in 160 hours, 125°C with load
Aging 30 days, 70°C
Vibration sinusoidal MIL STD 202, Method 204, Cond. D
Shock, non operating MIL STD 202, Method 213, Cond. I
Thermal shock, non operating MIL STD 202, Method 107, Cond. B
Ambient pressure, non operating MIL STD 202, 105, Cond. C, 5 minutes dwell time minimum
Resistance to solder heat MIL STD 202, Method 210, Cond. C
Moisture resistance MIL STD 202, Method 106
Terminal strength MIL STD 202, Method 211, Cond. C
Resistance to solvents MIL STD 202, Method 215
Solderability MIL STD 202, Method 208
ESD Classification MIL STD 883, Method 3015, Class 1HBM 0 to 1,999V
Moisture Sensitivity Level J STD 020, MSL 1
Please contact Q-Tech for higher shock requirements

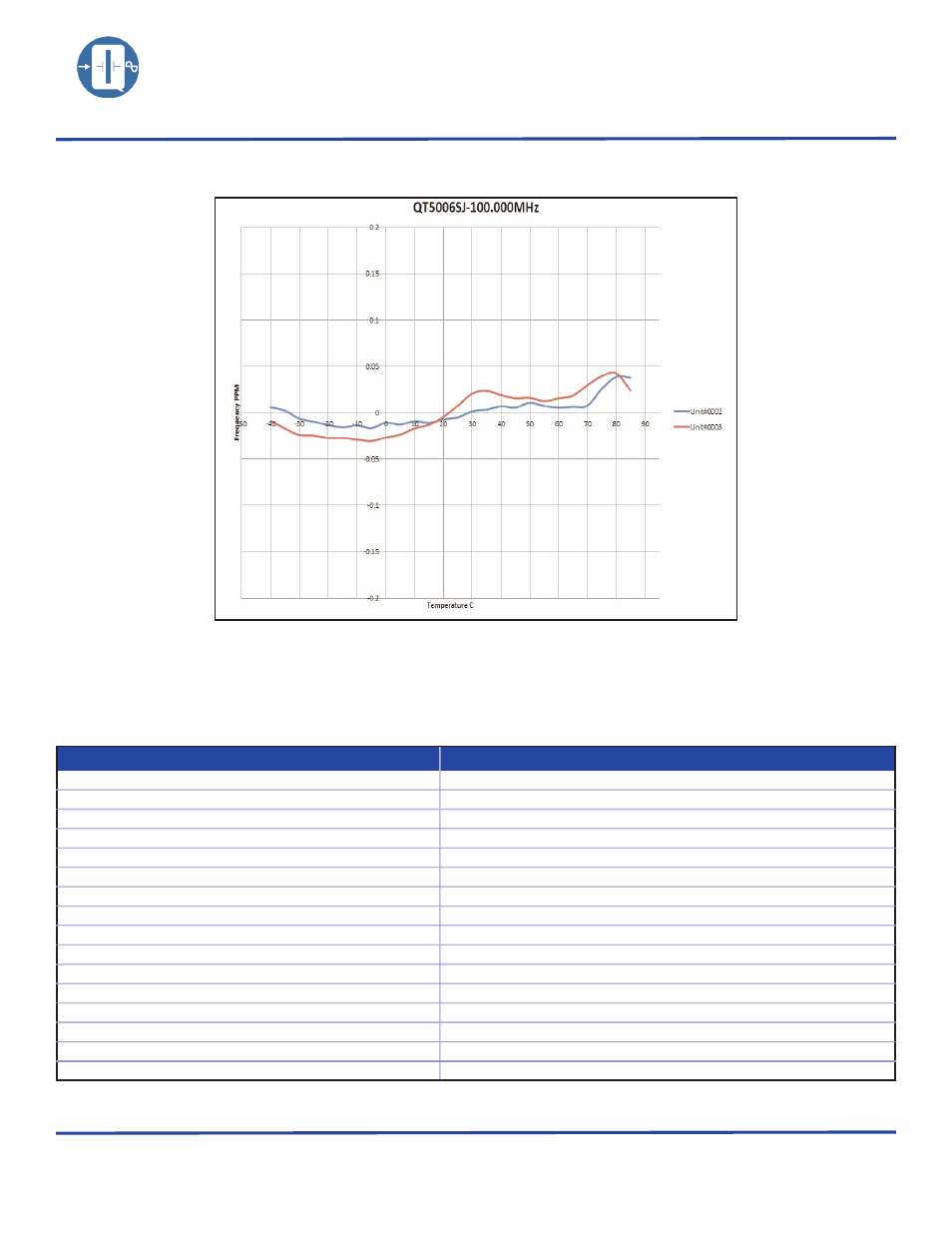

Frequency vs. Temperature Curve
Typical Stability of QT5006SJ-100.000MHz
