Mica M-9030

11

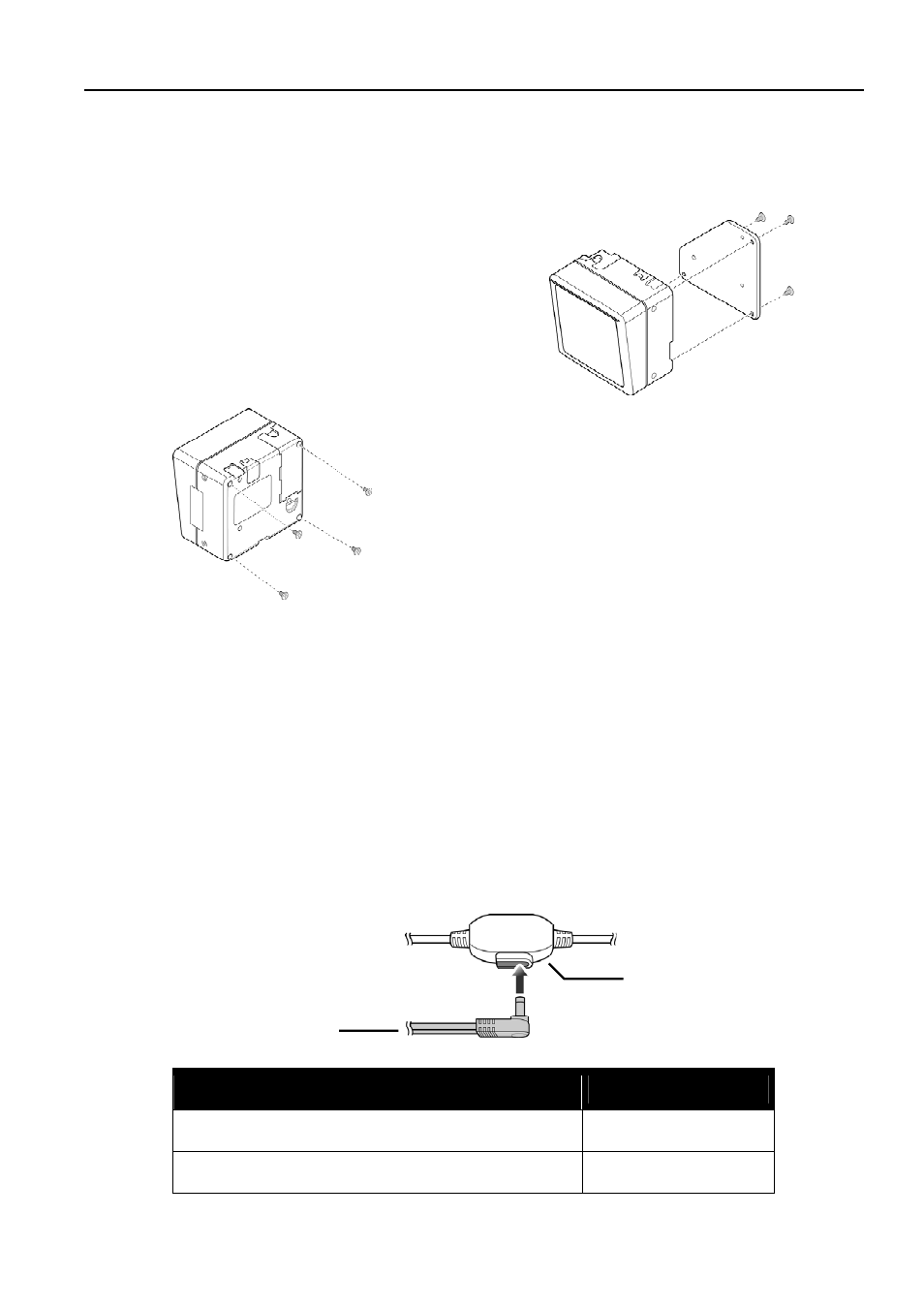

Standard package

1.

Place Mica on the inside of your host

system and mark the places for the
mounting holes. See Appendix for
Mica’s dimensions.

2.

Drill the mounting holes in your host

system.

3.

Fix Mica on the inside of your host

system with screws.

Special package (with the fit plate)

1.

Fix the fit plate to Mica with screws.


2.

Attach Mica to the scanner stand of

your host system.

2.4

POWERING


Mica is designed to use a single cable for both data transmission and power supply.
This requires that your host system can provide sufficient power on its data port
(RS232, KBW, or USB).

Power injector
Some applicable Mica interface cables have a power injector to connect an external
power supply in case the host system cannot supply sufficient power for the
scanner.

+5.2V AC adapter

Power injector

Cable

Power injector

RS232, Keyboard Wedge

Powered USB, USB
