Billet Specialties Premium Tru Trac Serpentine System - Big Block Ford User Manual
Page 8

www.billetspecialties.com
www.billetspecialties.com
15

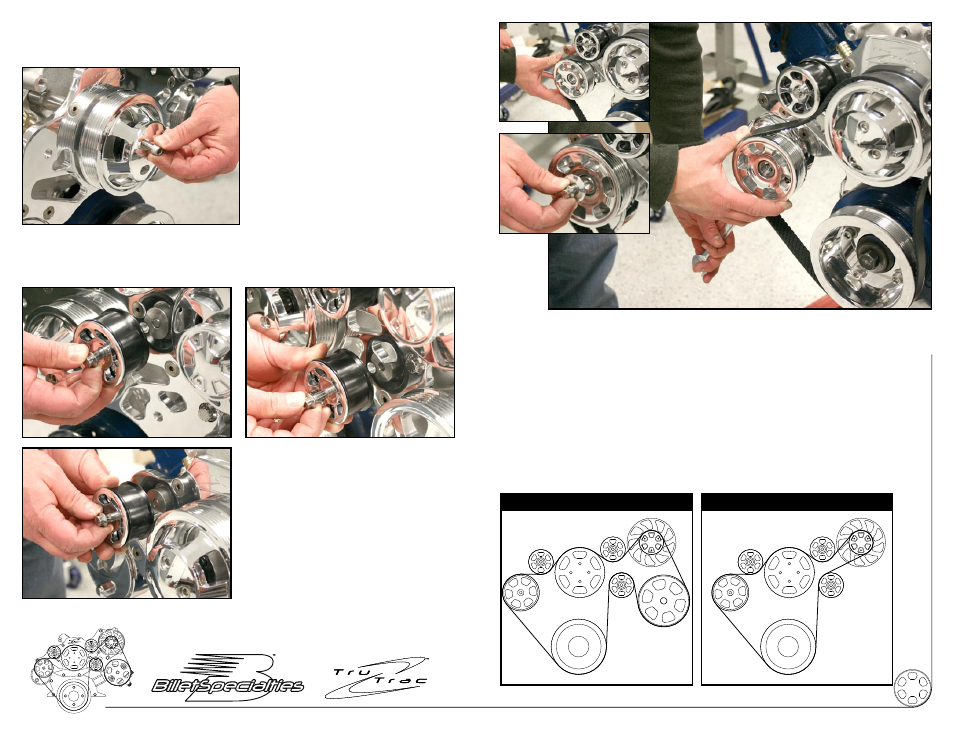

Figure 10 - Install Water Pump Pulley
Apply anti seize to four 5/16-24 x 3/4" socket
head cap screws. Place water pump pulley
on water pump and attach with 5/16-24 x
3/4 socket head cap screws, tighten firmly
(26 ft/lb).
Figure 11 - Install Idler Pulleys
Apply anti seize to three 3/8-16 x 1-3/4” ARP
12pt. cap screw.
Thread a 3/8-16 x 1-3/4” ARP cap screw
through the idler pulley polished cover, idler
pulley and boss into the bridge bracket and
tighten firmly (46 ft/lbs).
Repeat step for other two idler pulleys.
Figure 12 - Install Belt & Tensioner Pulley
Install and route belt as shown in the diagram below allowing belt to rest on pulley boss.
[A] Place a 5/8” box end wrench on tensioner nut & align belt onto pulley groove above
tensioner boss.
[B] Pull up on wrench until tensioner pulley is able to slip onto tensioner boss.
[C] Thread 3/8-16 x 3/4” ARP 12pt. bolt and thrust washer onto tensioner pulley and tighten
firmly (46 ft/lb).
Connect electrical and fluid lines, test run motor. Inspect fittings and hardware,
tighten if necessary.
[B]
[C]
[A]
Without Power Steering
With Power Steering
