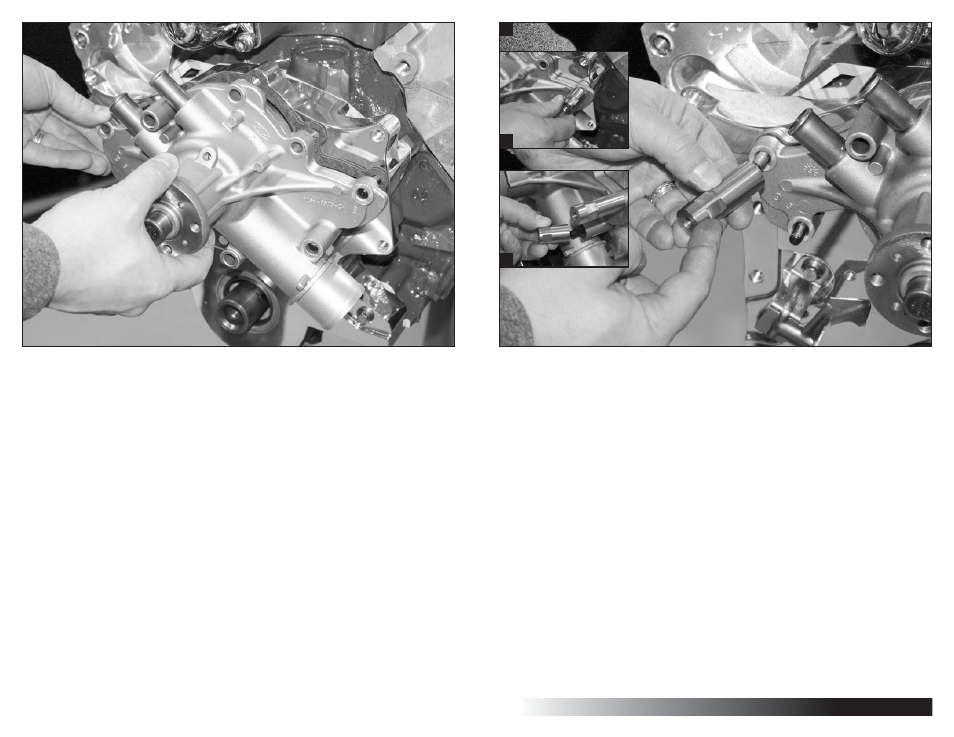

Figure 7: Install Water Pump

Apply a thin film of RTV silicone to water pump gasket and back of water pump.
Place water pump gasket on to timing cover and align. Install water pump over
studs and onto timing cover.

Figure 8: Install Spacer Nuts

A] Thread the two 2.197” spacer nuts with the hex end out onto the passenger
side water pump studs and finger tighten.

B] Thread the 1.569” spacer nut hex side out to the top driver side water pump
stud and finger tighten.

C] Thread the remaining short spacer nut on to the bottom water pump stud hex
side out (shown above) and finger tighten.

B

C

A
