22
Small Block Ford Tru Trac - 13605 / 13625 23

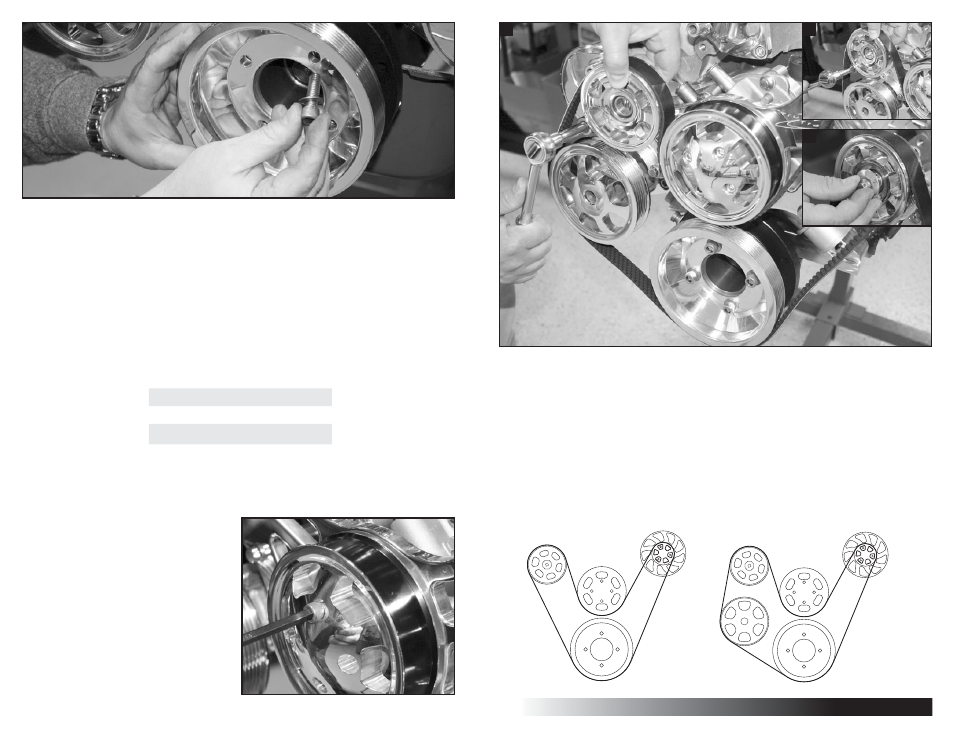

Figure 18: Install Crankshaft Pulley
Install crank pulley with four 3/8-16 x 1” socket head cap screws and four 3/8”
Belleville washers and tighten firmly.
Figure 19: Install Water Pump Pulley
Install water pump pulley with four
5/16-24 x 3/4” socket head cap
screws and tighten firmly.
Check All Bolts For Tightness At This Time
Figure 20: Install Tensioner Pulley & Serpentine Belt
A] Route serpentine belt as shown below. Wrap belt around tensioner pulley and
hold pulley in place.
B] Place a 5/8" socket with extension onto the tensioner nut. Rotate socket
handle clockwise until tensioner pulley slips onto tensioner shaft.
C] Release tension and install 3/8-16 x 3/4” ARP 12pt. bolt and washer onto
tensioner. Tighten firmly.
Belt Path Without Power Steering Belt Path With Power Steering
A B
C
Note:
In some application it may be necesary to use a crankshaft pulley spacer for
proper belt alingment. Crankshaft pulley spacers are available at any Ford Racing
performance parts dealer.
Spacer
Thickness (in.)
Part Number
.350 M-8510-A351
.950 M-8510-B351
.875 M-8510-C351
.909 M-8510-D351
