SW2

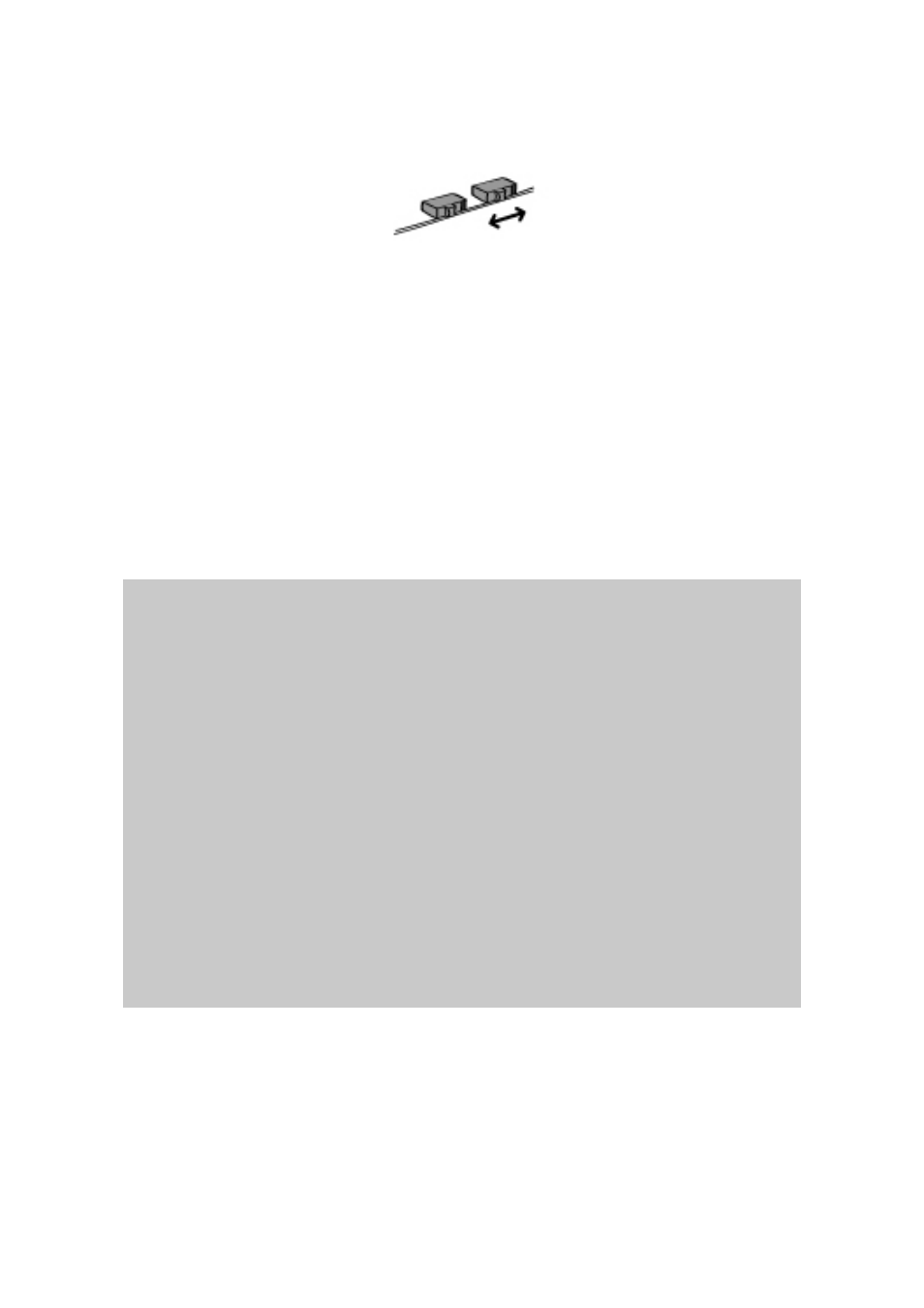

Figure 2-9. Data/Console switch of the LS100M
4) Run a terminal emulator program such as HyperTerminal. Set up the serial configuration
parameters of the terminal emulation program as follows:
9600 Baud rate, Data bits 8, Parity None, Stop bits 1, Hardware flow control
5) Press [ENTER] key.
6) Type the user name and password to log into the LS100M. A factory default setting of the
user name and password are both admin.
7) If the user logged into the LS100M successfully, command prompt screen will appear on the
computer as shown in Figure 2-10.
login: admin
password: *****
Type 'help' to get command usages
> help
set group par1 [par2 ...] +
- group = 'ip','host','serial' or 'admin'
- par1 ... = configuration parameters. Use * to keep a parameter's value
get [group] +
- group = 'ip','host','serial','admin' or 'status'
- If group is specified, shows settings of the group.
- If group is omitted, shows settings of all groups.
factorydefault [option] +
- if option is omitted, all parameters are set with factory default values.
- if option='-ip',
all parameters except IP settings are set with factory default values.
help [group] +
- If group is omitted, shows this screen.
- If group is specified, shows 'set' command usage of the group.
save +
- Save changes
exit +
- Exit without rebooting the device
reboot +
- Exit and reboot the device
>
Figure 2-10. The LS100M console screen
From the command prompt screen, users can set, get and save configuration parameter values using
‘set’, ‘get’and ‘save’command. Users also can exit the console or reboot the device using ‘exit” and
‘reboot’ command. The usage of the commands can be found using ‘help’ command. For command
usages description, please refer to section 2.4 Command usage.
