16
2.3. Accessing Console Port
There are two ways to access console port of the LS100M depending on whether the user is located
at a local site or a remote site.
- Serial console:
Local users can connect directly to the serial console port of the LS100M using serial
console/data cable (null-modem cable). The serial port of the LS100M is used as the console port
as well as the data port. To use the serial port as the console port, slide Data/Console switch on
the test bed to the Console side.
- Remote console:
Remote users can make a telnet connection to the remote console port (port 23) of the LS100M
via TCP/IP network.
Both methods require the user to log into the LS100M in order to continue.
2.3.1 Using Serial Console
1) Connect the one end of the serial console cable to the DB9 serial port of the LS100M test
bed.

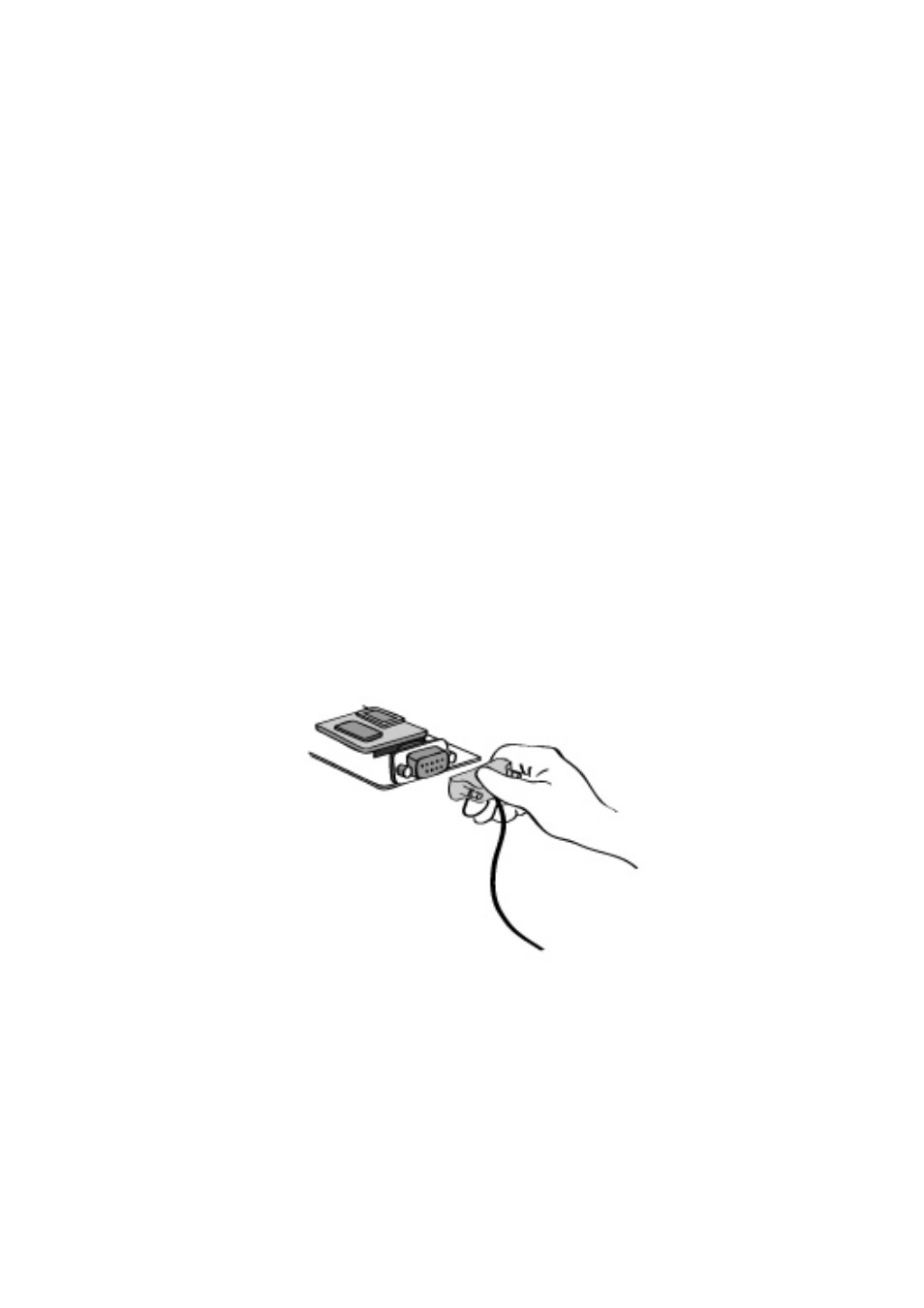

Figure 2-8. Connecting a serial console cable to the LS100M test bed
2) Connect the other end of the cable to the serial port of user’s computer.
3) Slide Data/Console switch(SW2) on the LS100M test bed to Console side.
