14

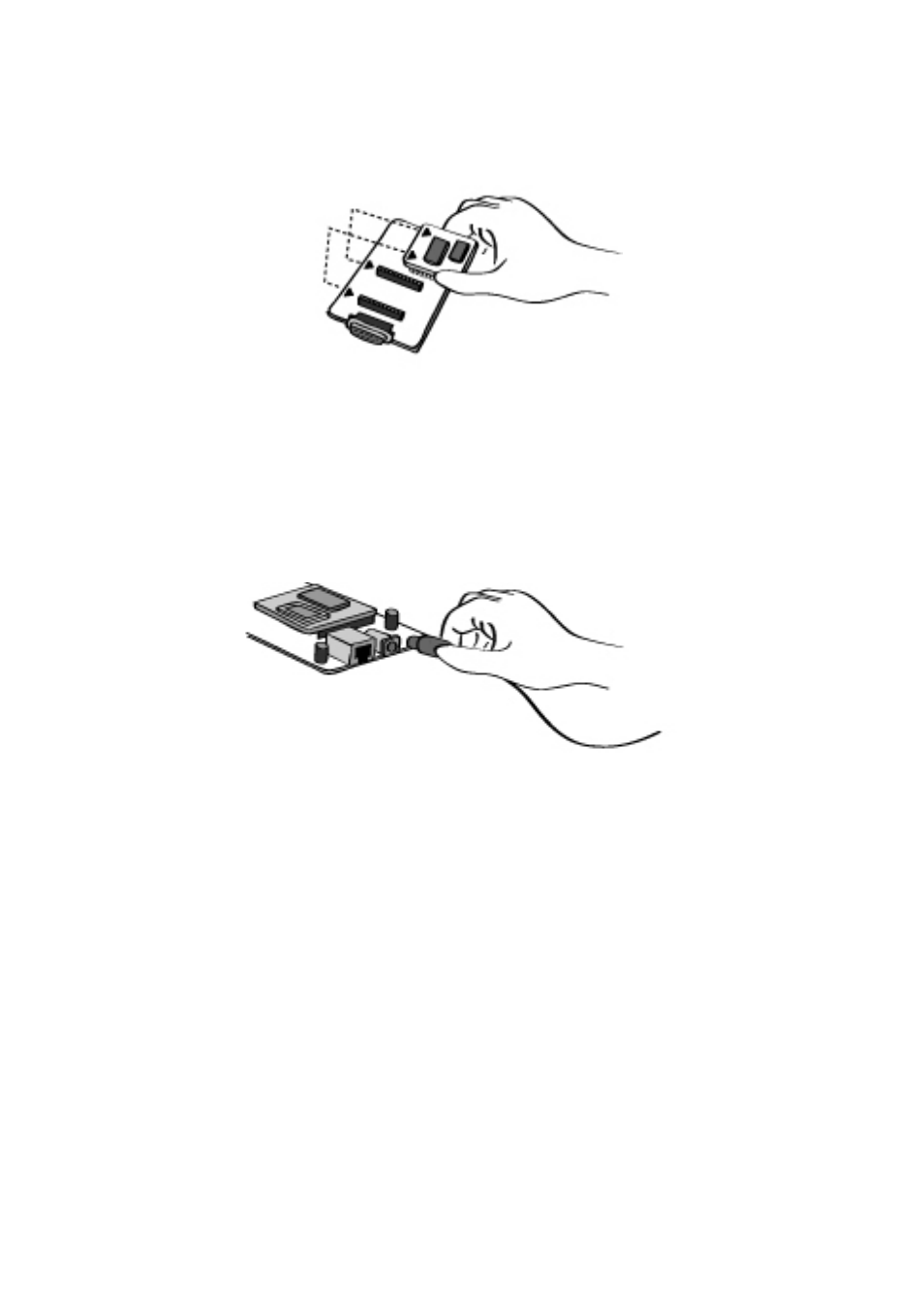

Figure 2-4. Installation of the LS100M module to the test bed
2.2.2 Connecting the Power
Connect the power jack to the power jack of the test bed using DC power adapter included in the
package. If the power is properly supplied, the [Power] LED of the test bed will maintain solid red.
Figure 2-5. Connecting the power to the test bed
2.2.3 Connecting to the Network
Connect the one end of the Ethernet cable to the 10Base-T port o the test bed and the other to the
Ethernet network. If the cable is properly hooked up, the LS100M will have a valid connection to the
Ethernet network by indicating:
- [Link] LED of the test bed maintains solid green
- [Collision/Act] LED continuously blinks to indicate the incoming/outgoing Ethernet packets
If any of the above does not happen, the LS100M test bed is not properly connected to the Ethernet
network.
