Starter Kit and User Manual for the HelloDevice 1100

(3) When uploading is completed, run the Web browser and connect to the

http://192.168.1.15/index.html

. The following

I/O demo Web page will appear. This screen matches the switches and LED's on the demo board. Switch and LED mapping

is described in Figure 5.12.

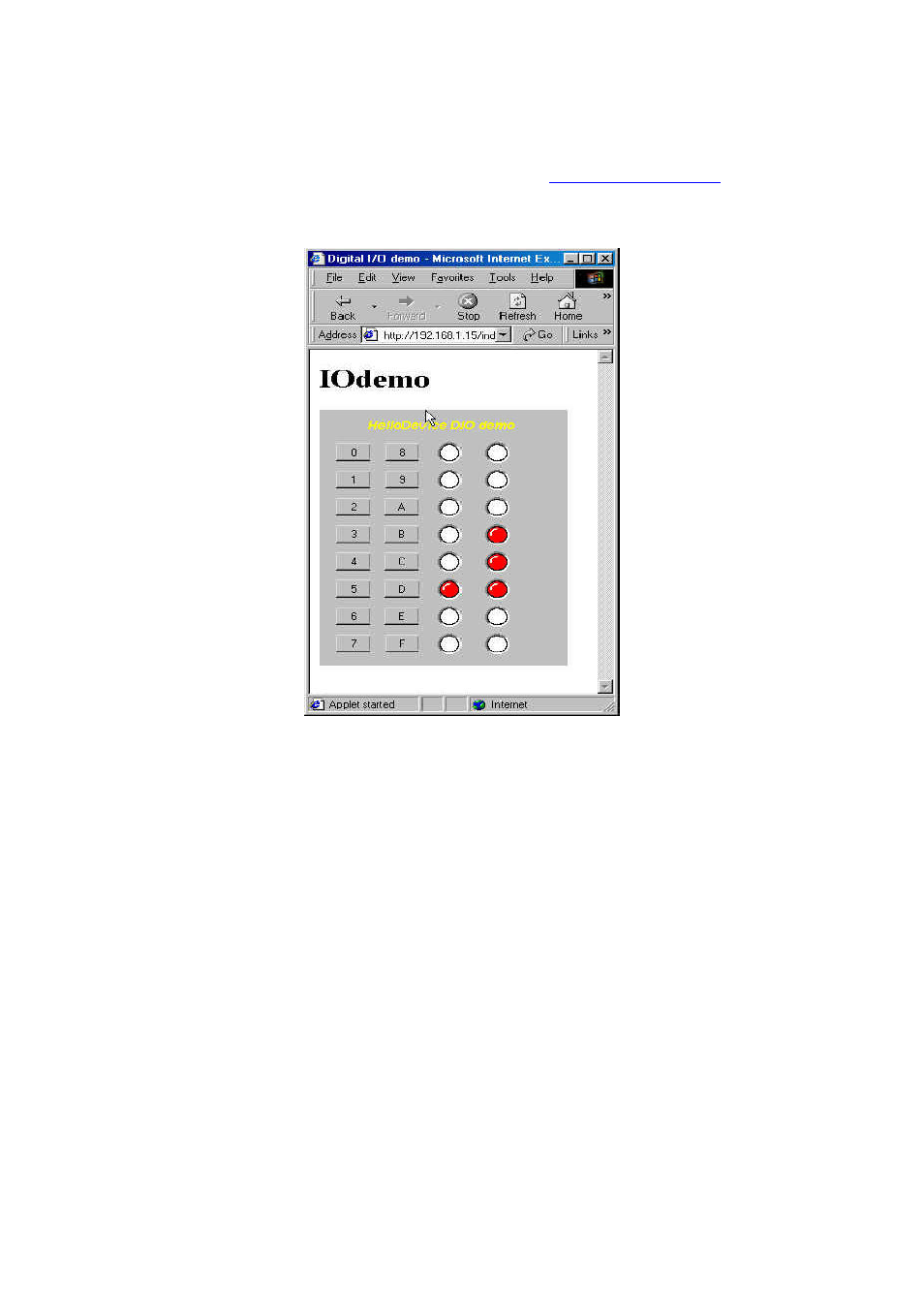

Figure 5.11. Web page screen of digital I/O demonstration

(4) Checking digital output control: Buttons on the left side of Web page are used to issue the digital output

commands (the number show the output contact points). When the user presses the “0” on the Web page, the

LED 0 on the demo board will be toggled on and toggled off when pressed again.

(5) Checking digital input detection: The LED’s on the right side of the Web page are used to display digital

input, and match the switches on the demo board. Check to see if the LED color is changed from red to green by

pressing the switch on the demo board.
