Starter Kit and User Manual for the HelloDevice 1100
21
The HelloDevice 1100 Starter Kit provides a Demo Board and sample programs for demonstrating digital I/O.
This section will demonstrate the HelloDevice I/O functions.
5.2.1 Connecting the Demo Board
(1) Turn off the HelloDevice power and remove the Ethernet cable.
(2) Insert the HelloDevice to the demo board through the digital I/O connector.

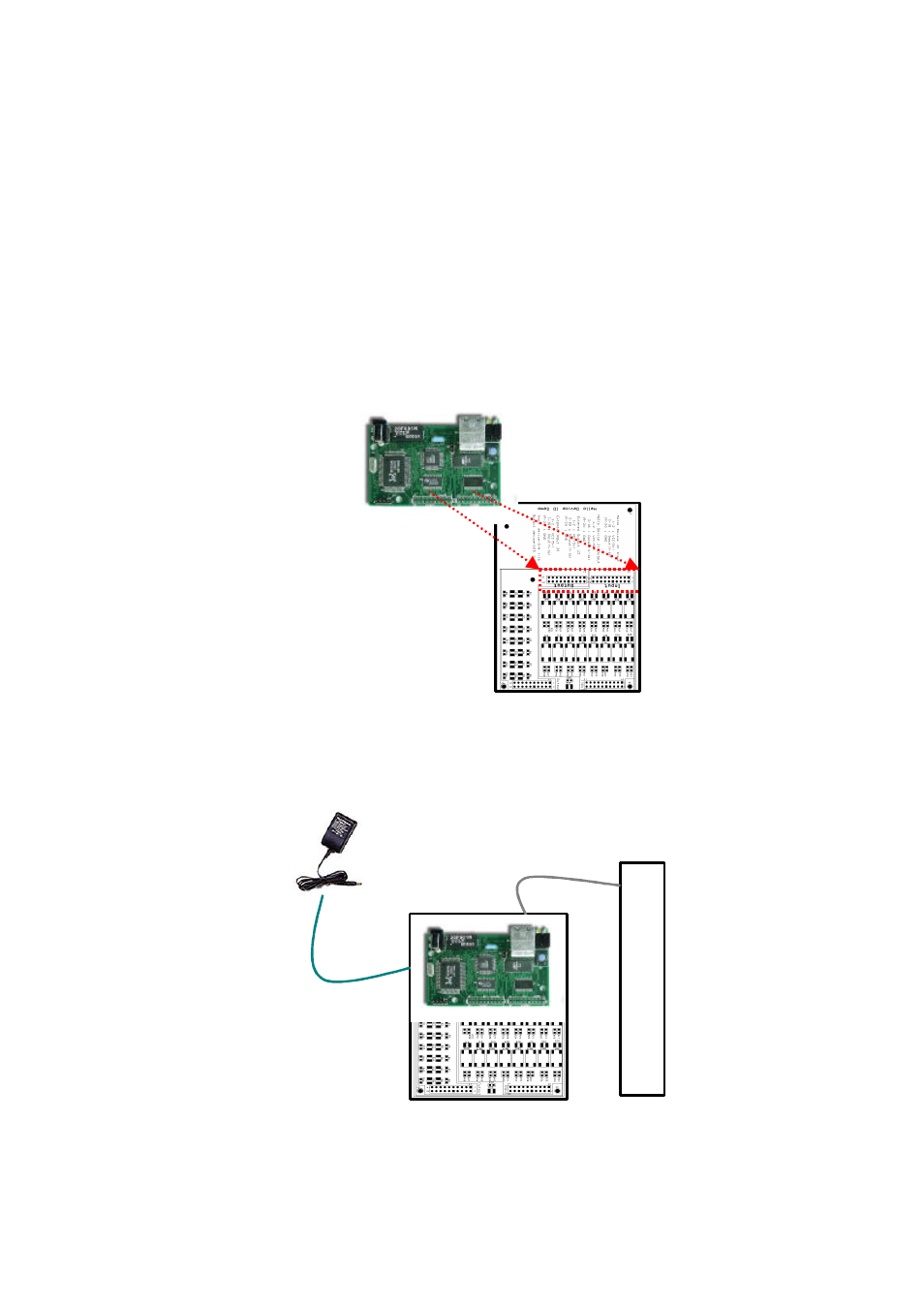

Figure 5.8. How to insert the HelloDevice into the demo board
(3) Connect the power to the HelloDevice again, and connect the Ethernet cable.
5V Power
Ethernet Cable
Ethernet backbone
Digital I/O Demo Board
Hello Device
Figure 5.9. Hardware installation for HelloDevice digital I/O demonstraton
Digital I/O Demo Board
HelloDevice
