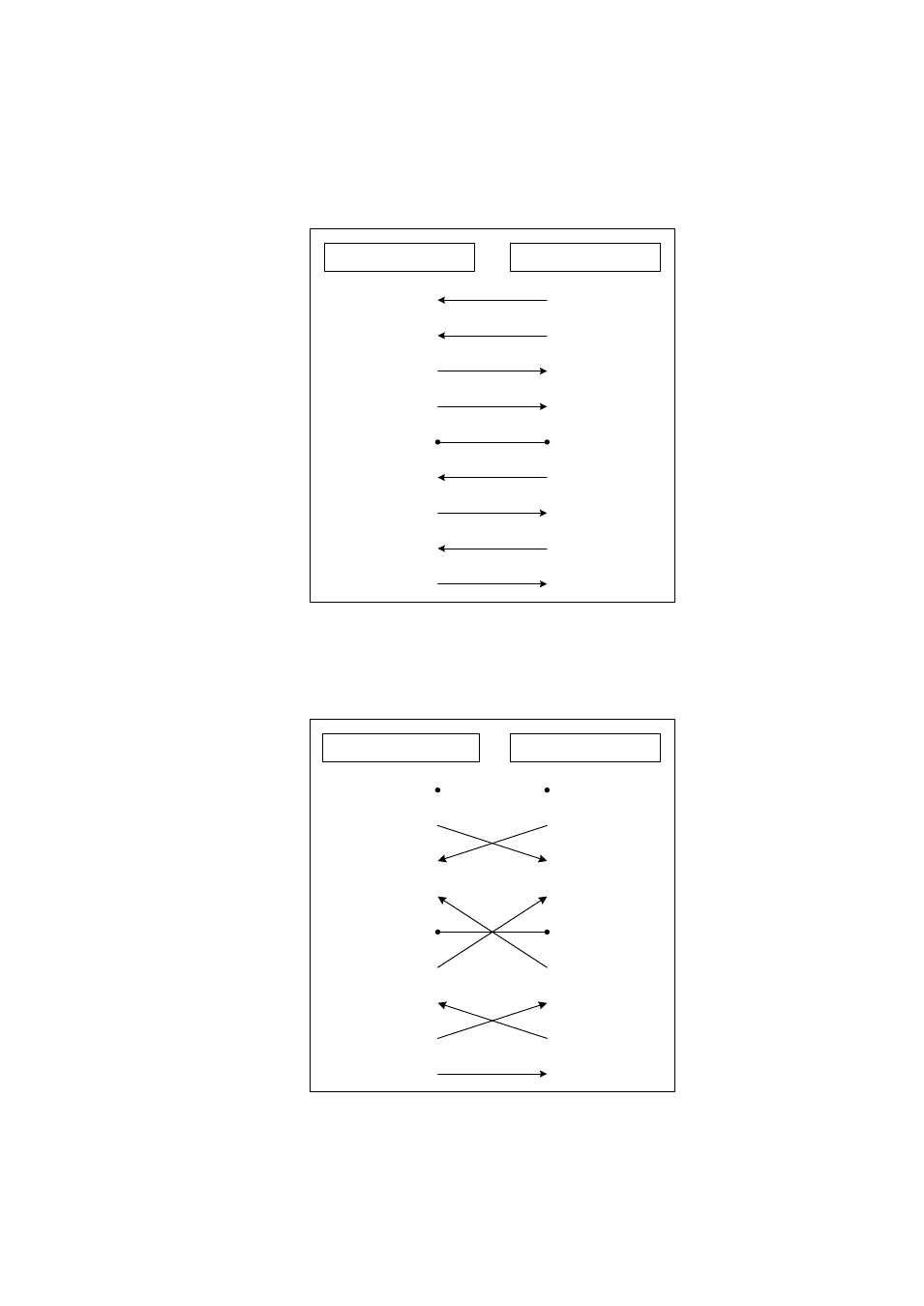

A.2. Serial Wiring Diagram

A.2.1. To Host with DTE Interface

DTE (Host System)

DCE (Parani-SD)

1. DCD

2. RXD

3. TXD

4. DTR

5. GND

6. DSR

7. RTS

8. CTS

9.

1. DCD

2. TXD

3. RXD

4. DSR

5. GND

6. DTR

7. CTS

8. RTS

9. VCC

A.2.2. To Host with DCE Interface

DCE (Host System)

DCE (Parani-SD)

1. DCD

2. TXD

3. RXD

4. DSR

5. GND

6. DTR

7. CTS

8. RTS

9.

1. DCD

2. TXD

3. RXD

4. DSR

5. GND

6. DTR

7. CTS

8. RTS

9. VCC
