2. Getting Started
This chapter describes how to set up the Parani-SD1000 for the first time.
- 2.1 Panel Layout explains the panel layout.
- 2.2 connecting the Hardware describes how to connect the power, the serial device, and the battery
pack to the Parani-SD1000.
Following items are required to get started:
- One DC power adapter, USB power cable or DC power cable (included in the package).
- One PC with RS232 serial port.
- Terminal emulation program running on the PC.
- One battery pack.
2.1. Panel Layout
This section describes the panel layout of the Parani-SD1000.

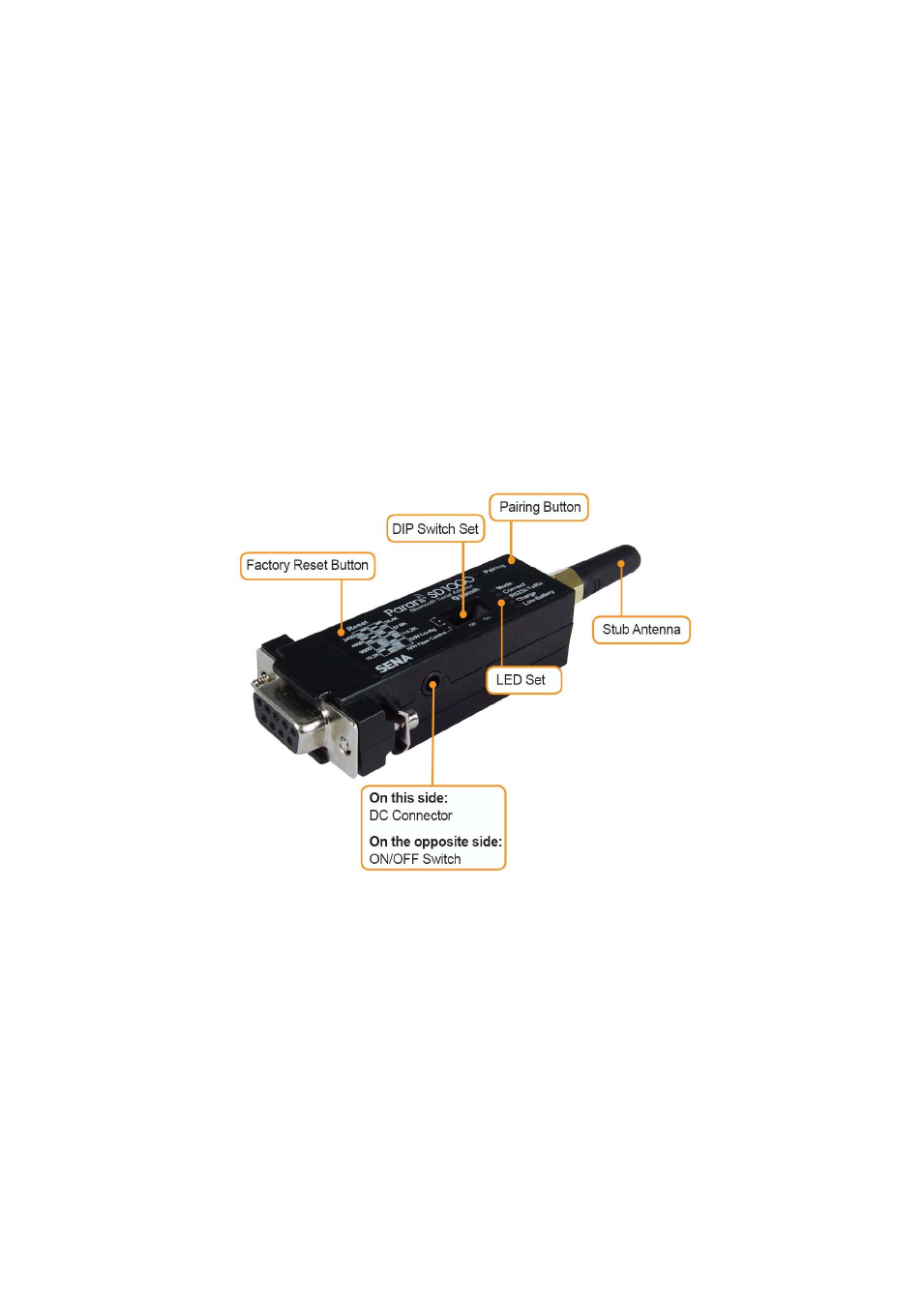

Figure 2-1 The panel layout of Parani-SD1000
2.2. Connecting the Hardware
This section describes how to connect the Parani-SD1000 to the serial device.
- Connect a power source to the Parani-SD1000.
- Connect the Parani-SD1000 to a serial device.
2.2.1. Connecting Power to Parani-SD1000
Parani-SD1000 can be powered from either external DC power adaptor/external power source, or by
optional battery pack. To power the SD1000 from the external DC power adaptor or external power
source, connect the power jack to the power connector of the Parani-SD1000 using the DC power
