11
adapter, USB power cable or DC power cable that is included in the package. If power is properly
supplied, the [Mode] lamp will display a green color.

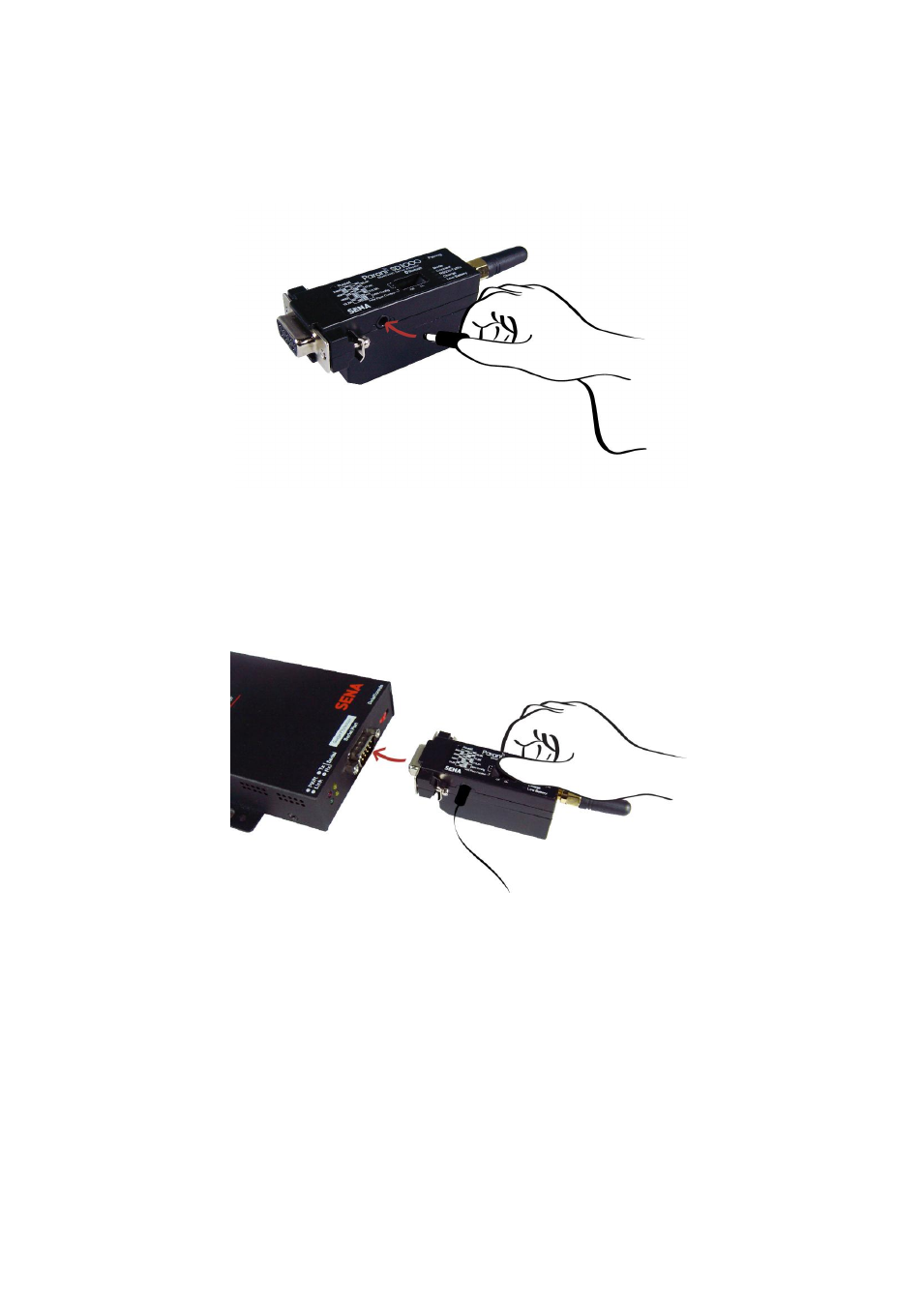

Figure 2-2 Connecting Power to Parani-SD1000
2.2.2. Connecting Device to Parani-SD1000
Connect the serial device to the Parani-SD1000 as shown below.
Figure 2-3 Connecting a Serial Device to Parani-SD1000
2.2.3. Attaching Battery Pack to Parani-SD1000
The Parani-SD1000 also supports optional standard battery pack (240mAh) and extended battery
pack (900mAh). Attach the battery pack to the Parani-SD1000 as shown below to power the SD1000
using the battery pack. To recharge the battery pack, connect the external DC power adaptor as
described in Section 2.2.1.
